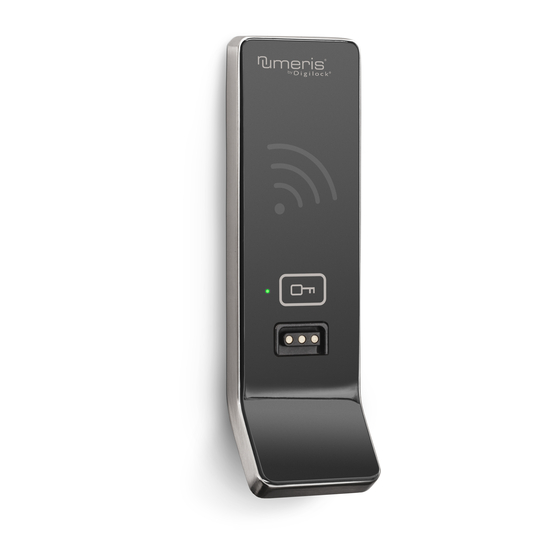

Aspire locks with a touch RFID interface are operated by an RFID credential or by an ADA compliant User Key. Manager credentials (Manager
Key or RFID) provide management access and/or external power. Programming is accomplished via a Programming Key unique to the lock
system. An optional mobile application tool simplifies lock system management and provides audit trail.
Lock Parts
Front Unit
Key Slot
Pull Handle
Standard
RFID Credentials
RFID Card
Keys
Operates the lock
Overrides user access
Allows management inspection
Provides external power
Programs Manager Keys to the lock
3
Assigns user credential
1
Up to six manager credentials (Manager Key or RFID) may be programmed to each lock. If managed with the optional Mobile App, up to 250 manager credentials may be
programmed to each lock.
2
One Programming Key allowed per lock system.
3
Up to 20 user credentials (User Key or RFID) may be programmed to each lock. If managed with the optional Mobile App, up to 250 user credentials may be programmed to
each lock.
Key Insertion
Standard
Numeris logo must face up on standard and narrow body locks.
1
Reader
Key Button
Key Button
Key Slot
LED Usage
Indicator
Pull Handle
Narrow
RFID Adhesive Label
RFID Keyfob
Narrow
Product Guide
Touch RFID
Latch Mechanism
Rear Unit
Cover Plate
Cover Plate Screw
RFID Wristband
User Key
Manager Key
•
Assigned Use Functionality
Cable
½" (12.7 mm)
Deadlatch
Lock Mounting
Holes
Pin
Connection Options
Programming Key
1
•
•
•
•
•
•
•
•
•
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digilock Numeris Aspire
Summary of Contents for Digilock Numeris Aspire
- Page 1 Product Guide Touch RFID Latch Mechanism Assigned Use Functionality Aspire locks with a touch RFID interface are operated by an RFID credential or by an ADA compliant User Key. Manager credentials (Manager Key or RFID) provide management access and/or external power. Programming is accomplished via a Programming Key unique to the lock system.
-
Page 2: Programming Instructions
Product Guide Touch RFID Latch Mechanism Assigned Use Functionality Setup Locks are shipped with factory default settings (only operates by pressing ). Each lock must be setup to operate with a Programming Key and manager credentials (Manager Key or RFID). Insert the Programming Key. - Page 3 The locks must be reprogrammed to prevent the lost/stolen Programming Key or manager credentials from operating a lock. To replace the Programming Key: Contact Digilock Support to purchase a replacement Programming Key. Note the order or serial number (found on the lock’s rear unit).
- Page 4 Product Guide Touch RFID Latch Mechanism Assigned Use Functionality Programming Instructions Assign User Credentials Up to 20 user credentials (User Key or RFID) may be assigned to each lock. Insert a valid Manager Key or Insert each User Key or present Insert a valid Manager Key or Touch and hold for 5...
- Page 5 Product Guide Touch RFID Latch Mechanism Assigned Use Functionality Programming Instructions Remove User Credentials The locks must be reprogrammed to remove user credentials from operating a lock. Collect all remaining and replacement user credentials. Touch and hold for 5 seconds (a two-tone beep will be heard after 5 seconds) then release.
-
Page 6: Battery Replacement
The lock is binding which means that either door alignment or stored items are preventing the lock from operating. Press on the door while operating the lock. If error condition persists, contact Digilock support for assistance. 2 sets of three beeps: The batteries are low.
