Digilock NEXT Sola3 Keypad Product Manual

Key managed
Hide thumbs Also See for NEXT Sola3 Keypad:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

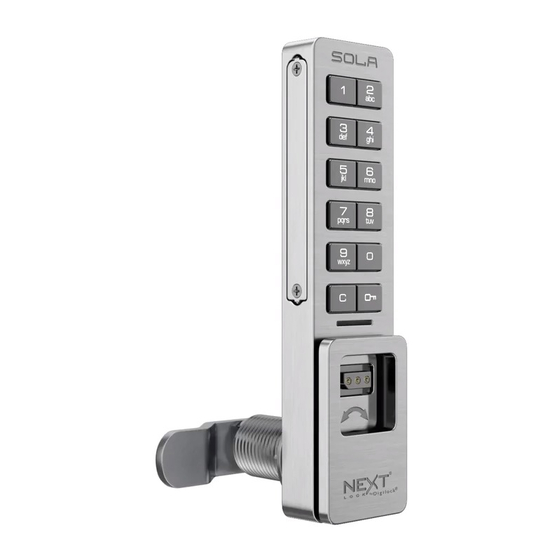

Sola locks with a keypad interface are operated by a 4-digit User Code or by an ADA compliant User Key. Manager Keys provide management
access and external power. Programming is accomplished via a Programming Key unique to the lock system.
Lock Orientation - Views
C Button
Key Slot
Handle
Vertical
Keys
Operates the lock
Overrides user access
Allows access for management inspection
Provides external power
Assigns user credential
Sets lock functionality
1
Up to 25 Manager Keys may be programmed to a lock.
Key Insertion
Horizontal - Handle on Left
Product Guide
Alpha Numeric
Keypad
Key Button
LED Usage Indicator
Shared Use
Assigned Use
User Key
●
2
1 Programming Key allowed per lock group.
Vertical
Keypad
Key Managed
SOLA can be installed vertically or horizontally for left or right handed confi guration.
Horizontal with Handle on the Left
Horizontal with Handle on the Right
Manager Key
●
●
●
●
●
Shared & Assigned Use Functionality
1
Programming Key
●
●
●
●
●
Horizontal - Handle on Right
2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEXT Sola3 Keypad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digilock NEXT Sola3 Keypad

Summary of Contents for Digilock NEXT Sola3 Keypad

  • Page 1 Product Guide Keypad Key Managed Shared & Assigned Use Functionality Sola locks with a keypad interface are operated by a 4-digit User Code or by an ADA compliant User Key. Manager Keys provide management access and external power. Programming is accomplished via a Programming Key unique to the lock system. Lock Orientation - Views SOLA can be installed vertically or horizontally for left or right handed confi...

  • Page 2: Handle Positions

    Product Guide Keypad Key Managed Shared & Assigned Use Functionality Handle Positions 90º 90º Counter-Clockwise 90º Clockwise Locked to unlock Locked to unlock 180º 180º Counter-Clockwise 180º Clockwise Locked to unlock Locked to unlock Setup Locks are shipped with factory default settings (only operates by pressing = `). Each lock must be set up to operate with a Programming Key and Manager Keys.

  • Page 3: Programming Instructions

    Product Guide Keypad Key Managed Shared & Assigned Use Functionality Programming Instructions Express Register Manager Keys The Programming Key can quickly program multiple locks to operate with the same Manager Keys. Go to the lock already programmed to operate with the Manager Keys. While the LED is fl...
  • Page 4 The locks must be reprogrammed to prevent the lost/stolen keys from operating a lock. To replace the Programming Key: Note the order or serial number (found on the lock’s rear). Contact Digilock Support to purchase a replacement Programming Key. To replace the Manager Keys: Collect all remaining and replacement Manager Keys.
  • Page 5 Product Guide Keypad Key Managed Shared & Assigned Use Functionality Programming Instructions Set Lock Functionality Each lock can be set for either shared or assigned use functionality. Press = to check functionality. If in shared use, LED is red. If in assigned use, LED is green.
  • Page 6 Product Guide Keypad Key Managed Shared & Assigned Use Functionality Set Additional Lock Features (for shared use functionality only) Auto Unlock When in shared use functionality, each lock can be programmed to auto unlock after a set number of hours. The default setting is OFF (does not auto unlock).
  • Page 7 Product Guide Keypad Key Managed Shared & Assigned Use Functionality Operating Instructions - In Shared Use Functionality In shared use functionality, the user enters a self-selected 4-digit User Code or inserts any User Key to lock and the same User Code or User Key to unlock.
  • Page 8 Product Guide Keypad Key Managed Shared & Assigned Use Functionality Operating Instructions - In Assigned Use Functionality In assigned use functionality, users operate the lock with their assigned user credential (either a User Code or a User Key). To reassign a lock to a different user, follow instructions to Assign the User Credential.

  • Page 9: Battery Replacement

    Does not Operate with the Programming Key The lock does not recognize the Programming Key. If the Programming Key has been replaced, operate with the Replacement Programming Key. Contact Digilock support for additional assistance. No Audible Feedback when = is Pressed The lock may be in Sleep Mode or the batteries may need to be replaced.
