Door Mounting Holes Drill Instruction and Template

Drill Instructions

1
(b)

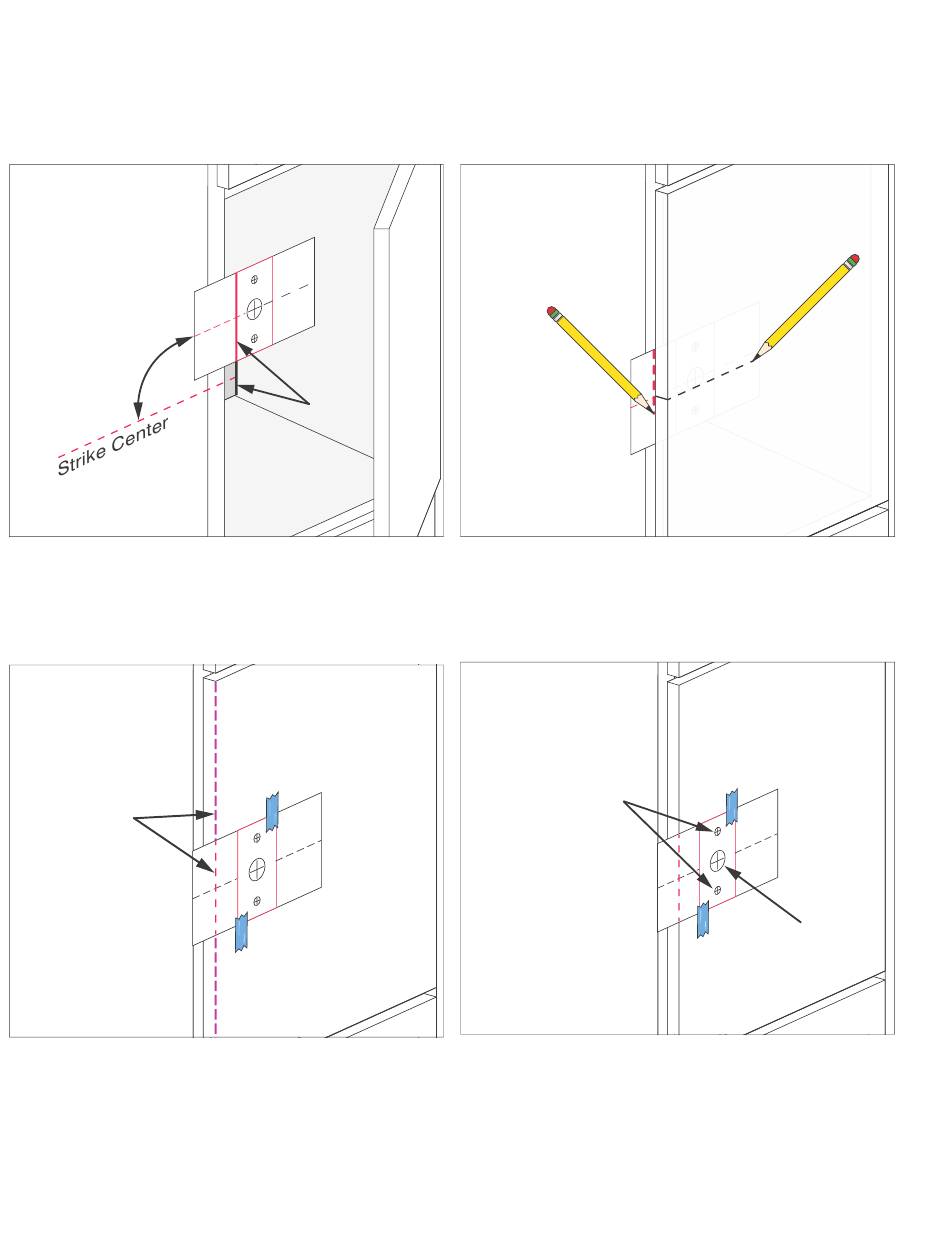

With the door open place the Template over the locker frame
(a) Align the Edge of Strike Plate with the Strike Plate Marker
(b) Center the Template to the center of the Strike Plate
You may secure the Template with removable tape
3
(a)
Place the Template on the front of the door
(a) Align the drawn mark on the Template with the door edge
(b) Center the Template with the mark on the door
Secure the Template with removable tape
12
(a)
(b)
2
(b)
Close the door over the Template
(a) Mark the door edge at the Template Center Line
(b) Mark the Template with the edge of the door
4
Drill x2
5/16" 0.3125 in
(7.94 mm)
Mark the center points of the door mounting holes on the front of
the door Drill the holes according the specified dimensions
(a)
Drill 3/4"
0.75 in (19.1 mm)
