Digilock Numeris Versa Product Manual

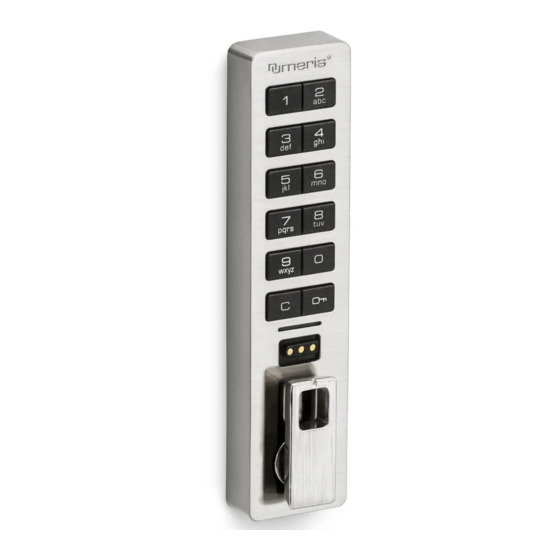

Versa locks with a keypad interface are operated by a 4-7 digit User Code or by an ADA compliant User Key. Manager Keys provide
management access and external power. Programming is accomplished via a Programming Key unique to the lock system. An optional
mobile application tool simplifi es lock system management and provides audit trail.

Lock Orientation

Front Unit

Horizontal Right
Horizontal Left

Keys

Operates the lock
Overrides user access
Allows management inspection
Provides external power
Programs Manager Keys to the lock
3
Assigns user credentials (in assigned use functionality)
Sets lock functionality
1 Up to 6 Manager Keys may be programmed to each lock. If managed with the optional Mobile App, up to 250 Manager Keys may be programmed to each lock.
2 1 Programming Key allowed per lock system.
3 Up to 20 user credentials may be assigned to each lock. If managed with the optional Mobile App, up to 250 user credentials may be assigned to each lock.

Key Insertion

Vertical Up
Numeris logo must face up
on vertical up body.
Product Guide
C Button
Key Slot
Knob
User Key
•
Vertical Down
Numeris logo must face
down on vertical down body.
Keypad
Shared & Assigned Use Functionality
Alpha Numeric
Keypad
Key Button
LED Usage Indicator
Shared Use
Assigned Use
Vertical Up
Manager Key
•
•
•
•
•
Horizontal Left
Numeris logo must face right
on horizontal left body.
1 Programming Key
•
•
•
•
•
•
Horizontal Right
Numeris logo must face left
on horizontal right body.
2
1
