Digilock DAK1-APS1 Product Manual

Keypad locks operate by entry of a 4-digit code. In assigned use functionality, a 4-digit User Code is assigned to operate the lock.
The user enters the assigned User Code to unlock and closes the door to automatically lock. Management staff operates the lock with
either the Programming Key unique to the lock system or any registered Manager Bypass Key.
Lock Parts

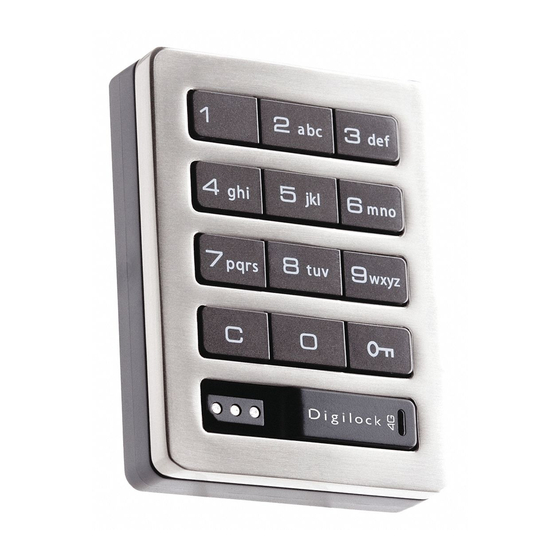

Front Unit
Alpha Numeric Keypad
C Button
Key Slot
Pull Handle
Standard Body
DAK1-APS1
Rear Unit
Cover Plate
Advanced Security
Keys
Programming Key
■
Registers Manager Bypass Keys
■
Provides lock access in case of forgotten/lost user
credential (code or key)
■
Allows management audit/inspection
■
Provides external power in case of battery failure
1 Programming Key required per lock system
■
Key Insertion
Standard Body
Digilock logo must face up on standard and vertical body locks.
Product Guide
Keypad Locks Advanced Security
Key Button
C Button
LED Usage Indicator
Key Slot
Generation Indicator
Pull Handle
Mounting Holes
Cover Plate Screws
1/2" (12mm) Deadlatch
Manager Bypass Key
■
Assigns User Code and User Key
■
Provides lock access in case of forgotten/lost
user credential (code or key)
■
Allows management audit/inspection
■
Provides external power in case of battery failure
Up to 25 Manager Bypass Keys may be registered
■
per lock
Vertical Body
Assigned Use
DAK1-APS1, DAK1-APV1 & DAK1-APH1
Generation Indicator
LED Usage Indicator
Alpha Numeric
Keypad
Key Button
Generation Indicator
Vertical Body
DAK1-APV1
Horizontal Body
Digilock logo must face left on horizontal body locks.
Alpha Numeric Keypad
LED Usage Indicator C Button
Key Button
Horizontal Body
DAK1-APH1
User Key
Operates the lock instead of
■
User Code
■
ADA compliant*
*US Access Board requires 5% of all
locks to be ADA compliant.
Phone: 707 766 6000
www.digilock.com | sales@digilock.com
Pull Handle
Key Slot
