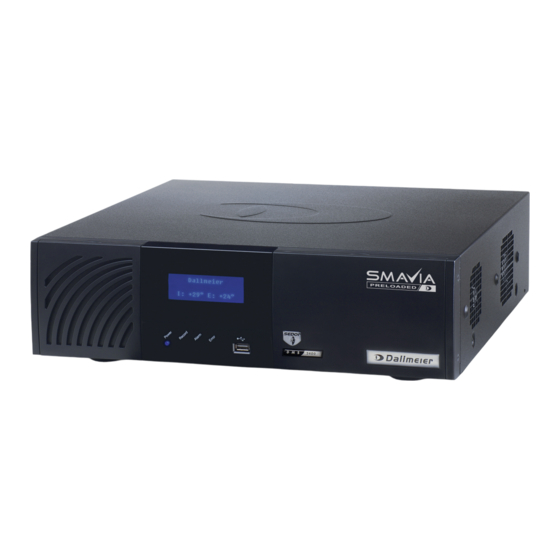

- Page 1 Commissioning English Appliance DMS 2400 DLS 1600 P R E L O A D E D 003864 / Rev. 1.0.5 / 2014-03-13...
-
Page 2: Table Of Contents
Commissioning and Remote Login ..................................13 Indicators on the Front Side....................................13 Validity This documents applies to the SMAVIA appliance DMS 2400 and DLS 1600. It has been created in connection with version 8.1.3 and 8.6.3 of the software SMAVIA Recorder Server. Conventions This document may contain various warning words and symbols that indicate potential sources of danger. -
Page 3: Safety Instructions
Modifications Do not make any modifications to the hardware or software that has not been tested and approved by Dallmeier. Inappropriate modifications can cause malfunctions, damages and data loss and can result in the loss of warranty. -
Page 4: Requirements
The air flow in a (closed) rack may be reduced. Ensure that the amount of air flow required for a safe operation is not compromised. Ensure sufficient ventilation with 4" (10 cm) of free space on the front, rear and right side of the device. Earthing Always ensure a reliable earthing of the device www.dallmeier.com... -
Page 5: Hdd Mounting
Devices that have been ordered without hard disk drives must be equipped with one 3.5" hard disk drive at least. Note that all mounted hard disk drives must be tested and released for mounting by Dallmeier (HDD whitelist in the Partner Forum)! may not be formatted or partitioned! -
Page 6: Mounting
Connect the recorder as described on the following pages. ► Commission the recorder as described on the following pages. Operation in 19" rack ► Exclusively use the 19" holder provided by Dallmeier. ► Insert the device into the 19" holder. ► Use the housing feet as guidance. ►... -
Page 7: Dimensions
Dimensions 133 mm 445 mm 425 mm 431 mm 133 mm 427 mm 95 mm 38 mm 424 mm... -
Page 8: Dms 2400
DMS 2400 Connections The number of the connections can differ depending on the ordered equipment or device variant. The following description refers to a device with full equipment and optional connectors. A B C D E F G H I J... - Page 9 DMS 2400 Assignment of the sockets Contact IN cameras (A) Weidmüller, 8 pins Pin Assignment Pin Assignment Pin Assignment Contact 3 Contact 6 2 3 4 5 6 7 8 Contact 1 Contact 4 Contact 2 Contact 5 Contact IN global (C) Weidmüller, 8 pins...
-
Page 10: Dls 1600
Max. 273 BTU / h Ambient temperatur 41°F − 104°F (+5°C bis zu +40°C), 68°F − 77°F (+20°C bis zu +25°C) recommended Humidity 5 – 70 % RH, non-condensing Atmospheric load Dust-free Weight Approx. 26 lbs (12 kg) with 2 HDDs www.dallmeier.com... - Page 11 DLS 1600 Assignment of the sockets Contact IN cameras (A) Weidmüller, 8 pins Pin Assignment Pin Assignment Pin Assignment Contact 3 Contact 6 2 3 4 5 6 7 8 Contact 1 Contact 4 Contact 2 Contact 5 Kontakt IN global (C) Weidmüller, 8 pins Pin Assignment Pin Assignment...
-
Page 12: Commissioning And Local Login
The task bar with the LOGIN button is displayed. ► Click the LOGIN button. The Recorder login dialogue is displayed. ► Click Later to login without changing a password. The configuration interface is displayed. ► Observe the appropriate Operation and Configuration documentations. www.dallmeier.com... -
Page 13: Commissioning And Remote Login
Commissioning and Remote Login Commissioning ► Connect the device to the network. ► Connect the device and relevant peripherals to the voltage supply. ► Switch on the peripherals and the device. The device is available for remote configuration via Ethernet after the start is complete (up to approx. 5 minutes). The IP address of the device (default 192.168.2.230) can be changed without login using the software PService or IP-Finder. -
Page 14: Indicators On The Front Side
Indicated failures, e.g. camera failures or hard disk faults. USB interface USB 2.0, type A HDD, DVD-RW drives Behind the flap Display Shows information and status messages. Serial number Internal temperature Model Version number SMAVIA Recording Server External temperature Line for status messages www.dallmeier.com... - Page 15 Notes...
- Page 16 The manufacturer accepts no liability for damage to property or pecuniary damages arising due to minor de- fects of the product or documentation, e.g. print or spelling errors, and for those not caused by intention or gross negligence of the manufacturer. Dallmeier electronic GmbH & Co.KG Cranachweg 1 93051 Regensburg Germany www.dallmeier.com...
