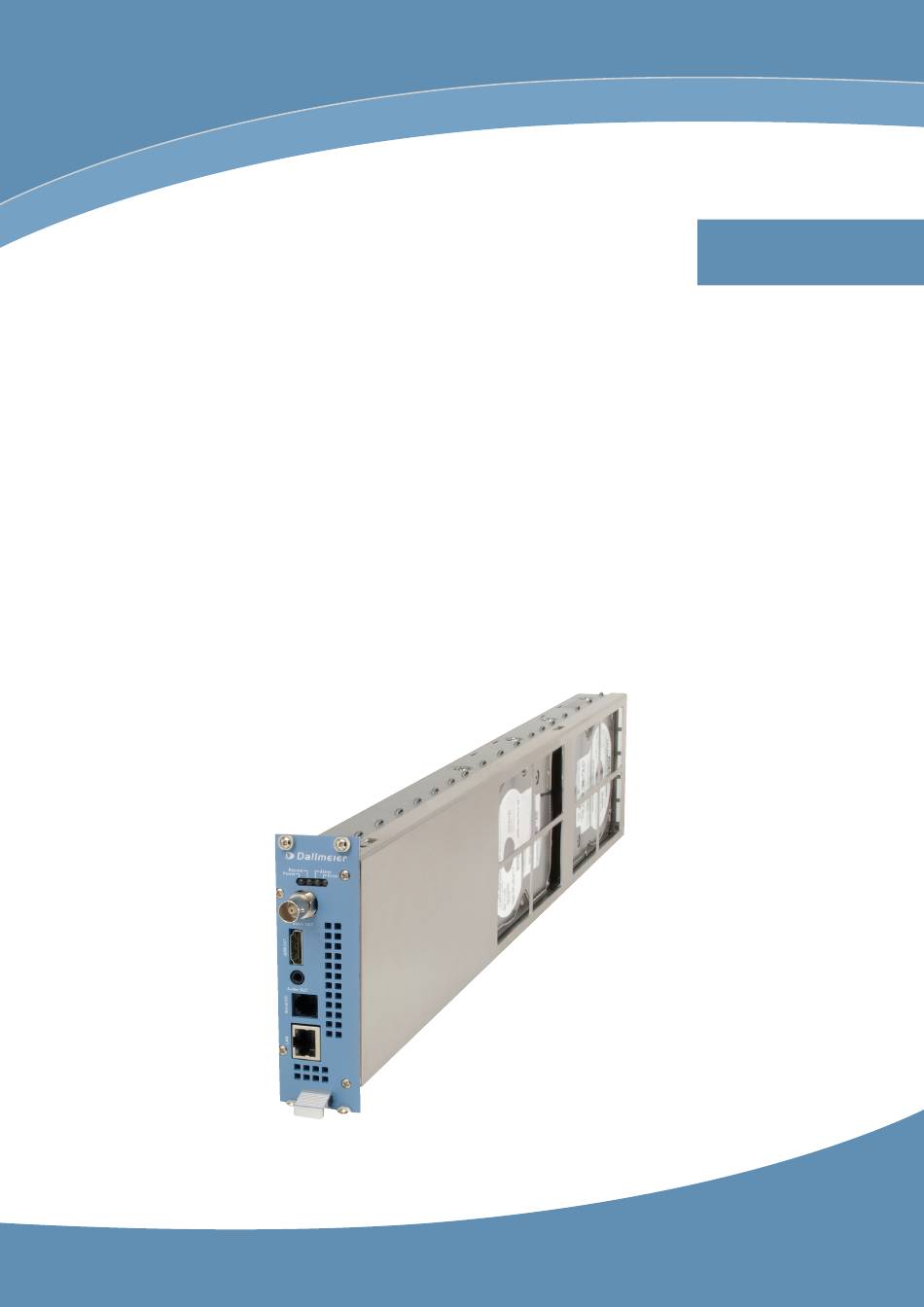

- Page 1 Commissioning English Dallmeier DIS-2/M UTP DIS-2/M NSU DIS-2/M Multi-D HD 004076 / 1.0.0 / 2012-10-30...
-
Page 2: Table Of Contents
Dimensions ..........................................10 Notes ............................................11 Validity This document is valid for the module DIS-2/M UTP, DIS-2/M NSU uad DIS-2/M Multi-D HD. The descriptions in this document are based on the software version 2.5.x.x.x. Conventions This document may contain various warning words and symbols that indicate potential sources of danger. -
Page 3: Safety Instructions
(UPS). A sudden voltage drop can damage the RAID system. Modifications Do not make any modifications to the hardware or software that has not been tested and approved by Dallmeier. Inappropri- ate modifications can cause malfunctions, damages and data loss and can result in the loss of warranty. -
Page 4: Installation Module
The module is inserted correctly when it has been fully slid in and engaged. ► The front cover of the module must be flush with the edge of the module rack housing. The module will now already be powering up. www.dallmeier.com... - Page 5 Ensure that the EMC seal on the duct cover is on the right-hand side. If you do not have enough duct covers available, contact the Dallmeier support. NOTICE Open ducts on the module rack can result in serious damage to the modules in conti- nuous operation (particularly a hard disk drive failure).
-
Page 6: Dis-2/M Utp
Connections DIS-2/M UTP Contact IN/OUT LAN (RJ 45) Video IN/OUT (BNC) S-Video (mini DIN 4) UTP/RS 485 Audio IN/OUT (3,5 mm phone jack) Contact IN/OUT Control inputs (Contact IN) Relais (Contact OUT) Function Function Relay 1 Contact 1 Relay 2... -
Page 7: Dis-2/M Nsu
Connections DIS-2/M NSU Contact IN/OUT LAN (RJ 45) Contact IN/OUT Control inputs (Contact IN) Relais (Contact OUT) Function Function Relay 1 Contact 1 Relay 2 Contact 2 9/11 Relay 3 Contact 3 13/15 Relay 4 Contact 4 14/16 Relay (Contact OUT) The output relays are floating and galvanically separated. -
Page 8: Dis-2/M Multi-D Hd
12 V AC ± 5 % Power consumption Max. 25 W Thermal output Max. 85 BTU/h Temperature +5°C up to +40°C (41°F – 104°F) Humidity 5 – 70 % RH, non-condensing Atmospheric load Dust-free Weight Ca. 2,5 kg (Variant 700 with 2 HDD) www.dallmeier.com... -
Page 9: Login
Login The configuration is done through the graphical user interface in a browser. System Requirements The following software components are provided: Browser Mozilla Firefox, version 8.x.x or higher Internet Explorer*) 8 or higher Login ► Proceed as follows to sign up: The default ip address is “10.2.6.98”, the default password is “3”. -
Page 10: Dimensions
Dimensions Variant 550 109 mm 4.3" 378 mm 14.9" 41 mm 1.6" Variant 700 109 mm 4.3" 538 mm 21.2" 41 mm 1.6" www.dallmeier.com... -
Page 11: Notes
Notes... - Page 12 The manufacturer accepts no liability for damage to property or pecuniary damages arising due to minor de- fects of the product or documentation, e.g. print or spelling errors, and for those not caused by intention or gross negligence of the manufacturer. Dallmeier electronic GmbH & Co.KG Cranachweg 1 93051 Regensburg www.dallmeier.com...
