  • Page 1 Service English Appliance PRELOADED IPS 2400 Rev. 1.1.0 / 2014-10-06...
  • Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of thirdparty trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.

  • Page 3: Table Of Contents

    8.1.2 Display ......................20 Procedure .....................20 8.2.1 With RAID System ..................20 8.2.2 Without RAID System ...................22 Exchange ......................23 Power Supply Modules................26 Identify ......................26 9.1.1 Information Dialog ..................26 9.1.2 Display ......................27 9.1.3 Status LED ....................27 Deactivation ....................28 Exchange ......................28 Cleaning .......................31 www.dallmeier.com...

  • Page 4: Introduction

    SMAVIA Appliance Introduction Validity This document is valid for the SMAVIA Recording Server appliance IPS 2400 in conjunction with the preloaded VideoIP server software SMAVIA Recording Server 8.X.6. The images in this document might differ from the actual product. Documents...

  • Page 5: Typographical Conventions

    Expressions in bold/italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations. www.dallmeier.com...

  • Page 6: Safety Instructions

    System Components Only use internal components that have been tested and approved by Dallmeier. Inappropriate internal components may cause malfunctions, damages and data loss and may result in the loss of warranty.
  • Page 7 The housings of the units may only be opened by qualified personnel for commissioning, inspection, maintenance and repair. Disposal Do not dispose waste electrical and electronic equipment into the household trash. Disconnect the units from the power supply. Remove all connected devices. Return the units to your respective sales partner. www.dallmeier.com...

  • Page 8: General Notes

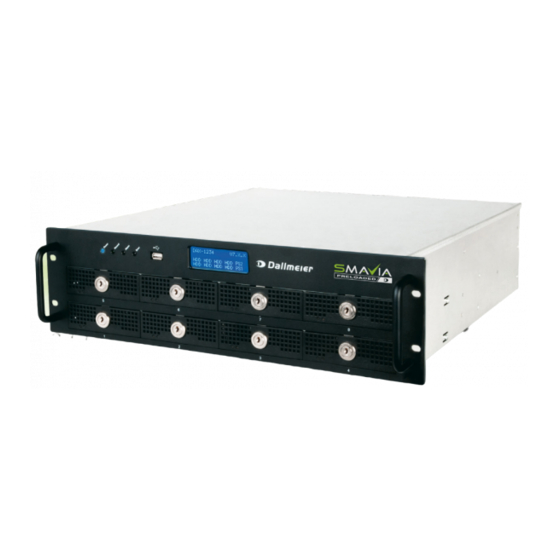

    General Notes Appropriate Use The IPS 2400 is a high performance appliance with a processing capacity for up to 24 IP vi- deo channels and an integrated storage system. In conjunction with the dedicated software SMAVIA Recording Server it is optimally suited for all applications which require a high recording speed, enhanced storage capacity and low power consumption while providing maximum security.

  • Page 9: Login

    In order to access the configuration interface of the appliance, proceed as follows:  Move the mouse pointer to the bottom of the screen. The Login button is displayed. Fig. 4-1  Click Login. The virtual keyboard is displayed.  Enter the password.  Confirm with OK. www.dallmeier.com...
  • Page 10 SMAVIA Appliance The configuration interface is displayed. Fig. 4-2  Make the required settings (see below).  Click Close in order to exit the configuration interface. www.dallmeier.com...

  • Page 11: Remote Login

     Open the context menu with a right-click.  Click NetConfig3. The connection is established. Fig. 4-3 Login Mode User Login  Enter User Name and Password.  Click Login. Login Mode Group Login  Enter the Password.  Click Login. www.dallmeier.com...
  • Page 12 SMAVIA Appliance The configuration interface is displayed. Fig. 4-4  Make the required settings (see below).  Click Close in order to exit the configuration interface. www.dallmeier.com...

  • Page 13: Licenses

     Open the Licenses dialog via System > Info > Licenses. Fig. 5-2  Make sure that the feature or function is selected as active.  Check the functionality of the feature or function.  Note that more settings are required under certain circumstances. www.dallmeier.com...

  • Page 14: Update

    Term of License The duration of the maintenance license is displayed in the software‘s info dialog and can be accessed via the network (PService).  Open the SW-Maintenance dialog via System > Info > Service. Fig. 6-1 www.dallmeier.com...

  • Page 15: Implementation

    The update is completed after a final restart of the appliance. While the update is performed, no settings or adjustments should be made. The storage medium should be removed only after the full completion of the update (restart). www.dallmeier.com...

  • Page 16: System Parameters

    The system parameters can be exported. After export they can be archived and modified to specific requirements. In addition to the system parameters, various log and protocol files are stored.  Open the Save Configuration dialog via System > System Parameters > Save Configuration. www.dallmeier.com...

  • Page 17: Import Parameters

    SMAVIA Recording Server. NOTICE Data loss! System failure! Inappropriate or incorrectly modified system parameters can lead to the loss of recordings and a permanent system fault.  Open the Restore Configuration dialog via System > System Parameters > Restore Configuration. www.dallmeier.com...
  • Page 18  Click Search USB stick if required.  Select the required storage medium as a Source.  Select the relevant import option.  Finally, click OK in order to start the import. The saved system parameters will be restored. www.dallmeier.com...

  • Page 19: Hdds

    SMAVIA Appliance HDDs The SMAVIA appliance IPS 2400 can be operated with several hard disks and a RAID system. The procedure of a hard disk exchande differs for devices with or without RAID system.  Proceed as described below, to replace a defective hard disk drive.

  • Page 20: Display

    The defective hard disk drive can be replaced during operation (hot-swap). Proceed as described below, to ensure the highest possible data security: Note that • new HDDs must be tested and released for mounting by Dallmeier (HDD white list on www.dallmeier.com). • new HDDs may not be formatted or partitioned.
  • Page 21 The new hard disk drive is used as the spare hard disk drive (SSS). The recovery of the previous spare hard disk drive (ooo) and the recording continues. Fig. 8-4  Note the information on the display.  Note that recovering of a 500 GB hard disk drive can last up to 15 hours. www.dallmeier.com...

  • Page 22: Without Raid System

    The settings of the device are completely preserved. Note that • new HDDs must be tested and released for the installation by Dallmeier (HDD white list on www.dallmeier.com). • new HDDs should not be formatted and not be partitioned.

  • Page 23: Exchange

    Data loss! In order to prevent data loss and damage to property observe the proce- dure described above.  Identify the defective hard disk drive as described above. Fig. 8-7  Unlock the HDD drawer unit with the key. www.dallmeier.com...
  • Page 24  Place the new hard disk drive in the HDD drawer unit.  Make sure that the connections of the hard disk drive are positioned on the back of the HDD drawer unit.  Mount the hard disk drive with the 4 screws. www.dallmeier.com...
  • Page 25  Do not use any force. Fig. 8-12  Make sure the HDD drawer unit and the housing are flush.  Lock the HDD drawer unit with the key. The new hard disk drive is initialized as described above. www.dallmeier.com...

  • Page 26: Power Supply Modules

    SMAVIA Appliance Power Supply Modules The SMAVIA appliance IPS 2400 can be equipped and operated with three redundant pow- er supply modules (hot plug, hot swap). If a power supply module fails, the two left take the complete power supply. The operation will continue without interruption.

  • Page 27: Display

    The status of the power supply modules is also indicated by the green LED on the front of the module. Fig. 9-3 Green LED lights up Power supply module switched on and OK Green LED not lit Power supply module switched off or defective www.dallmeier.com...

  • Page 28: Deactivation

    If the device is powered by two redundant power supply modules, one can be exchanged during operation.  Turn off the defective power supply module with the appropriate power switch.  Remove the power cable. Fig. 9-5  Loose the screws at the top of the power supply module. www.dallmeier.com...
  • Page 29  Take care not to cant.  Do not use any force.  Attach the power supply module with the two screws at the top.  Connect the power cable.  Turn on the new power supply module with the appropriate power switch. www.dallmeier.com...
  • Page 30 SMAVIA Appliance The power supply module is put into operation automatically. The device is powered from the redundant power supply modules with equal parts of tension. www.dallmeier.com...

  • Page 31: 10 Cleaning

     Do not use cleaning materials that contain solvents because they can damage the device.  Clean the housing (outside) with a soft, dry and anti-static dust cloth.  Remove dust deposits on the vent openings by gentle suction if required. www.dallmeier.com...
