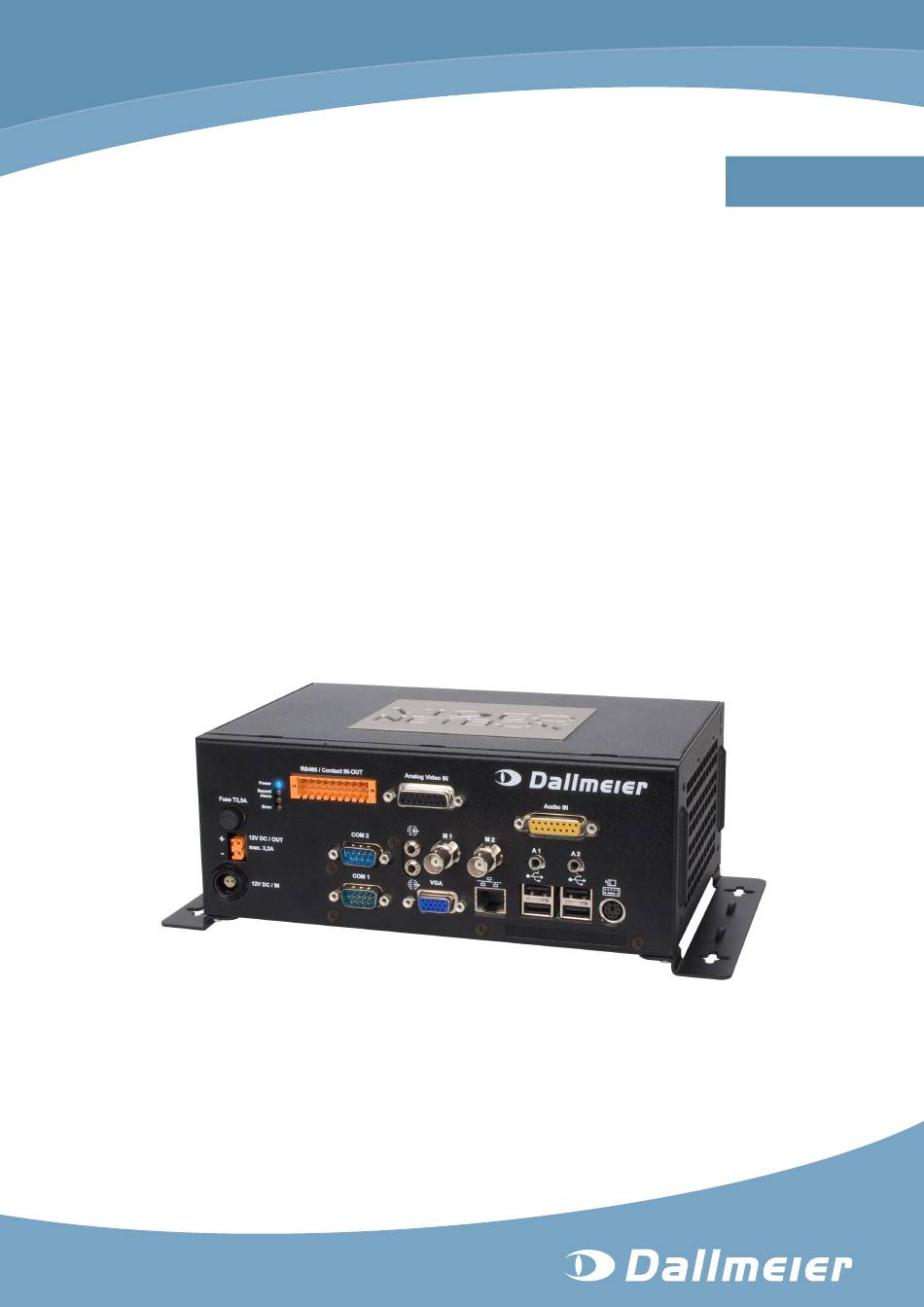

- Page 1 Service English Hybrid Audio and Video Server VideoNetBox VideoNetBox Bank Rev. 1.0.1 / 2011-10-13...
- Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.
-
Page 3: Table Of Contents
VideoNetBox, VideoNetBox Bank Table of Contents Introduction ....................4 Validity ......................4 Documents ......................4 Conventions ....................4 Safety Instructions..................6 Login ......................8 Local Login......................8 Remote Login....................9 Licenses.......................11 Update ......................13 System Parameters..................14 Default Parameters ..................14 Parameters Export ..................14 Parameters Import ..................15 Hard Disk Drives ..................17 Identification ....................17... -
Page 4: Introduction
VideoNetBox, VideoNetBox Bank Introduction Validity This documentation applies to the Hybrid Audio and Video Server VideoNetBox and VideoNetBox Bank. The descriptions in this document are based on version 7.1.4. Documents Datasheet The document Datasheet contains the technical specifications, features and data of the device. - Page 5 VideoNetBox, VideoNetBox Bank CAUTION CAUTION indicates a hazardous situation which, if not avoided, could re- sult in minor or moderate injury. NOTICE NOTICE indicates practices for preventing property damage, incorrect con- figurations or faulty operations The following symbols and various character formats are used to increase the clearness of the document: ...
-
Page 6: Safety Instructions
System Components Only use internal components that have been tested and approved by Dallmeier. Inappro- priate internal components can cause malfunctions, damages and data loss and can result in loss of warranty. - Page 7 VideoNetBox, VideoNetBox Bank Foreign Bodies If objects or liquids get into the unit, immediately disconnect it from the power supply (pull out the power plug). Contact the sales partner responsible for your area. Burnt Smell If you notice burnt smell or formation of smoke from the unit, immediately disconnect it from the power supply (pull out the power plug).
-
Page 8: Login
VideoNetBox, VideoNetBox Bank Login For the following service steps a login is required. This can be done locally directly on the recorder or over the network with the software NetConfig2. Local Login After the start (up to about 5 minutes) the recorder is ready for the local login. The back- ground image of the configuration screen is displayed. -
Page 9: Remote Login
VideoNetBox, VideoNetBox Bank The graphical configuration interface of the recorder is displayed. Fig. 3-2 Configuration interface Make the required settings (see below). Remote Login After the start (up to about 5 minutes) the recorder is ready for remote configuration over the network with the software NetConfig2. - Page 10 VideoNetBox, VideoNetBox Bank The graphical configuration interface of the recorder is displayed. Fig. 3-4 Configuration interface Make the required settings (see below). www.dallmeier.com...
-
Page 11: Licenses
VideoNetBox, VideoNetBox Bank Licenses Certain properties and functions of the recorder are optional. They are only available if they were ordered when the system has been purchased. Properties and functions can generally also be licensed and activated retrospectively. It may be necessary to purchase some additional hardware together with an license code for this purpose. - Page 12 VideoNetBox, VideoNetBox Bank Make sure that the property or function is marked as active. Check the operation of the property or function. Note that further adjustments may be required. www.dallmeier.com...
-
Page 13: Update
VideoNetBox, VideoNetBox Bank Update The recording software of the device can be updated if necessary. Open the Software Update dialogue via System > Service > Software Update. Fig. 5-1 Load update file Select the storage device as Source. -
Page 14: System Parameters
VideoNetBox, VideoNetBox Bank System Parameters The configuration of the device is stored in parameter files. They can be reset to default settings as well as exported and imported. Default Parameters The original configuration of the device can be restored by resetting to default system pa- rameters. -
Page 15: Parameters Import
VideoNetBox, VideoNetBox Bank Fig. 6-2 Save Configuration dialogue Select the storage medium as Target. Confirm with OK. Various log and protocol files are stored on the USB stick besides the system parameters. Parameters Import Stored or modified system parameters can be imported in order to restore the device con- figuration. - Page 16 VideoNetBox, VideoNetBox Bank Fig. 6-3 Restore Configuration dialogue Observe the detailed explanations in the dialogue. Select the storage medium as Source. Select the relevant import option. Confirm with OK www.dallmeier.com...
-
Page 17: Hard Disk Drives
VideoNetBox, VideoNetBox Bank Hard Disk Drives The units of the VideoNetBox series can be operated with up to two hard disk drives. Proceed as described below, to replace a defective hard disk drive. Identification The hard disk drives are accessible on the rear panel. First, the defective hard disk drive must be identified in the information dialogue. -
Page 18: Exchange
In order to replace a defective hard disk drive, proceed as follows: Note that all mounted hard disk drives • must be tested and released for mounting by Dallmeier (HDD whitelist in the Partner Forum)! • may not be formatted or partitioned! ... - Page 19 VideoNetBox, VideoNetBox Bank Fig. 7-3 Disconnect the cable from the hard disk drive. Disconnect the hard drive out of the 4 guidances Fig. 7-4 Remove the defective hard disk from the two HDD holders. Fig. 7-5 Slide the new hard disk drive into the HDD holders.
- Page 20 VideoNetBox, VideoNetBox Bank Fig. 7-7 Ensure that the connections of the hard disk drive are positioned at the rear side of the recorder. Insert the hard disk drive completely into the 4 guidances. Connect the designated connection cable to the hard disk drive.
-
Page 21: Cleaning
VideoNetBox, VideoNetBox Bank Cleaning NOTICE The housing of the device should be opened for maintenance and repairs only by trained personnel. If cleaning of the device may be necessary observe the following precautions: NOTICE Damage to the surface of the device! ...
