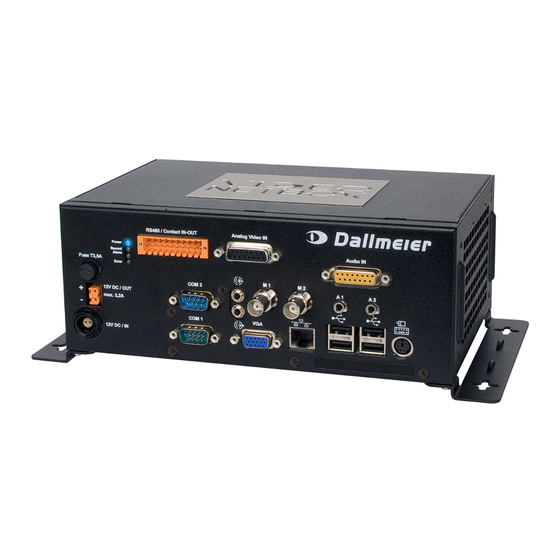

- Page 1 Commissioning English Dallmeier VideoNetBox VideoNetBox Bank 000791 / Rev. 1.1.0...
-
Page 2: Table Of Contents
Login ............................................8 Dimensions ..........................................10 Validity This documentation applies to the audio and video server VideoNetBox and VideoNetBox Bank. It has been produced on basis of software version 7.1.1 SP Y. Observe the corresponding documentation Requirements for the VideoNetBox Bank in addition. -
Page 3: Safety Instructions
(UPS). A sudden voltage drop can damage the RAID system. Modifications Do not make any modifications to the hardware or software that has not been tested and approved by Dallmeier. Inappropri- ate modifications can cause malfunctions, damages and data loss and can result in loss of warranty. -
Page 4: Hdd Mounting
Recorders that have been ordered without hard disk drive must be equipped with one 2.5" hard disk drive at least. Note that all mounted hard disk drives must be tested and released for mounting by Dallmeier (HDD whitelist in the Partner Forum)! may not be formatted or partitioned! Mounting The slot for HDD1 (on top, horizontally) must be used in case that only one hard disk drive is mounted. -
Page 5: Mounting
Mounting Ambient conditions Unfavourable ambient conditions can shorten the life of the unit and cause malfunctions or damages. Do not mount the recorder at places with: large scale dust and dirt steam or oil vapours (e.g. kitchen) unsuitable ambient temperatures ... -
Page 6: Connections
4 pins on Weidmüller 20 pins CF card, type 1 Serial interface Mouse / Keyboard 2 pins on Weidmüller 20 pins, RS485 (for Dallmeier PTZ domes only) PS/2, black (direct connection or via mouse + keyboard adapter) Serial interface COM 1 Not active... - Page 7 Assignment of the sockets 12 V DC OUT (B) 12V DC IN (C) Assignment Assignment 12V DC 12 V DC Contact IN (H and I) 1 (GND) Assignment Function Contact 1 Camera 1 - Start recording Contact 2 Camera 2 - Start recording Contact 3 Camera 3 - Start recording 2 (GND)
-
Page 8: Login
In the initial state it is possible to login without password. The rights of the Administrator group are valid. Note that the definition of the passwords and of the network parameters is necessary for remote access (e. g. Dallmeier PView 7). - Page 9 IP address 192.168.2.230 (can be changed with the software IP-Finder without login) Password Serial number (e.g. DAE-12345678) Note that the definition of the passwords and of the network parameters is necessary for remote access (e. g. Dallmeier PView 7). Login ►...
-
Page 10: Dimensions
Dimensions Measures in millimetre (mm). www.dallmeier.com... - Page 11 Notes...
