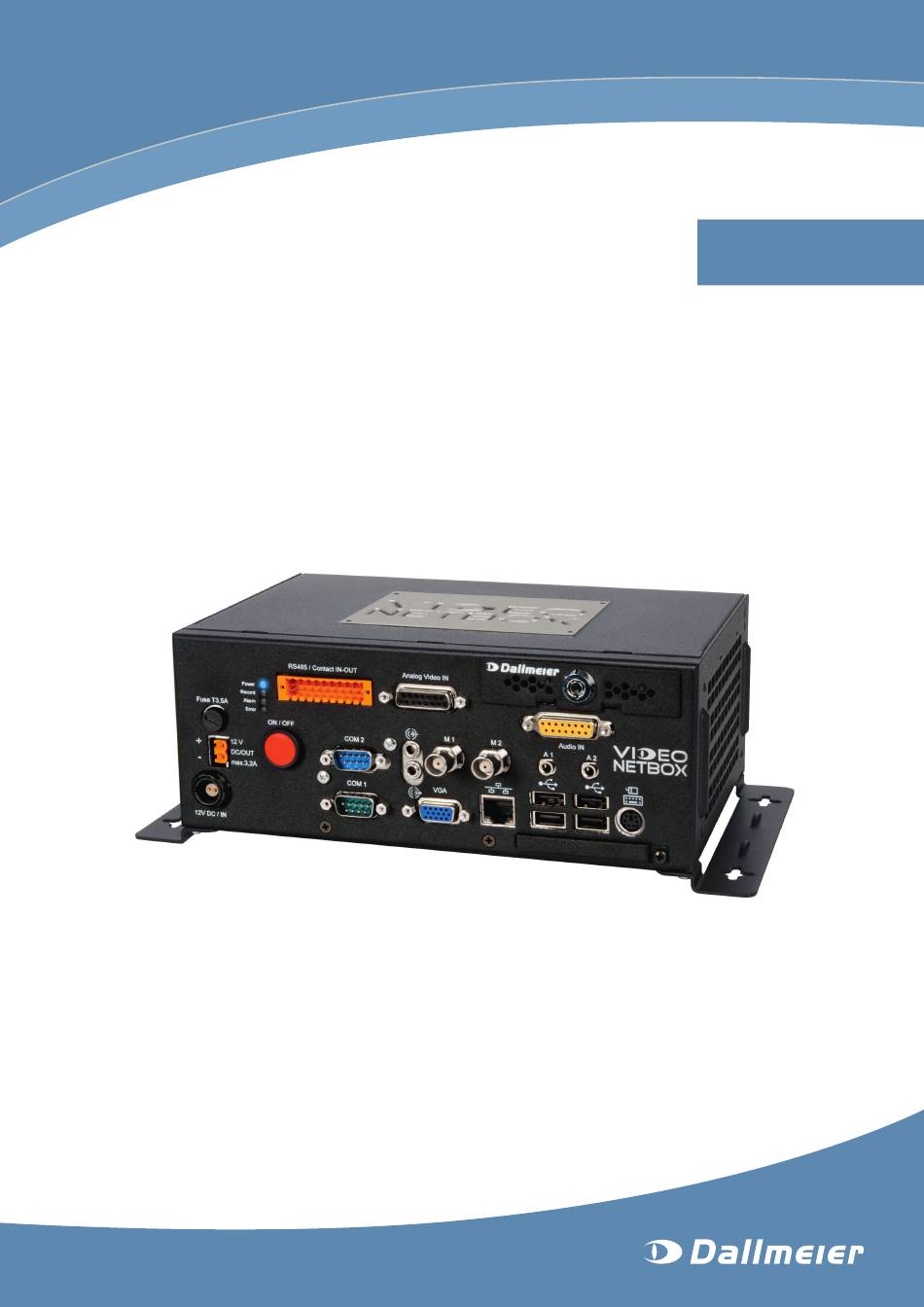

- Page 1 Commissioning English Dallmeier VideoNetBox eXd 003579 / Rev. 1.0.0...
-
Page 2: Table Of Contents
Contents Validity ............................................2 Safety Instructions ........................................3 HDD Mounting...........................................4 Mounting .............................................5 Connections ..........................................6 Login..............................................8 Dimensions ..........................................10 Validity This documentation applies to the audio and video server VideoNetBox eXd. It has been produced on basis of software ver- sion 7.1.4. www.dallmeier.com... -
Page 3: Safety Instructions
(UPS). A sudden voltage drop can damage the RAID system. Modifications Do not make any modifications to the hardware or software that has not been tested and approved by Dallmeier. Inappropri- ate modifications can cause malfunctions, damages and data loss and can result in loss of warranty. -
Page 4: Hdd Mounting
... optional 2.5" removable hard disk drive has to be mounted into the removable HDD tray..all hard disk drives must be tested and released for mounting by Dallmeier (HDD whitelist in the Partner Forum)! ... all hard disk drives may not be formatted or partitioned! Mounting ►... -
Page 5: Mounting
Mounting Ambient Conditions Unfavourable ambient conditions can shorten the life of the unit and cause malfunctions or damages. Do not mount the recorder at places with: large scale of dust and dirt steam or oil vapours (e.g. kitchen) ... -
Page 6: Connections
4 pins on Weidmüller 20 pins CF card, type 1 Relay OUT (1 and 2) Mouse / Keyboard 4 pins on Weidmüller 20 pins PS/2, black (direct connection or via mouse + keyboard adapter) Serial Interface Not Active 2 pins on Weidmüller 20 pins, RS485 (for Dallmeier PTZ domes only) 2× 3.5 mm phone jack Serial Interface COM 1 Removable Hard Disk D-SUB, 9 pins, RS232 2,5" HDD in removable tray Technical Data Dimensions W x H x D Approx. 230 x 85 x 150 mm (9.0"... - Page 7 VNB eXd Assignment of the Sockets 12 V DC OUT (B) 12V DC IN (C) Assignment Assignment 12V DC 12 V DC Contact IN (H and I) 1 (GND) Assignment Function Contact 1 Camera 1 - Start recording Contact 2 Camera 2 - Start recording Contact 3 Camera 3 - Start recording...
-
Page 8: Login
In the initial state it is possible to login without password. The rights of the Administrator group are valid. Note that the definition of the passwords and of the network parameters is necessary for remote access (e. g. Dallmeier PView 7). - Page 9 IP address 192.168.2.230 (can be changed with the software IP-Finder without login) Password Serial number (e.g. DAE-12345678) Note that the definition of the passwords and of the network parameters is necessary for remote access (e. g. Dallmeier PView 7). Login ►...
-
Page 10: Dimensions
Dimensions 230 mm (9.0") 95 mm (3.6") 150 mm 280 mm (11.0") Ø 4 mm (0.2") 100 mm (3.9") 256 mm (10.1") Measures in millimetre (mm). www.dallmeier.com... - Page 11 Notes...
- Page 12 Information about Copyright, Trademarks, Design Patents © 2011 Dallmeier electronic The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design. We reserve the right to make technical modifications. The manufacturer accepts no liability for damage to property or pecuniary damages arising due to minor de- fects of the product or documentation, e.g. print or spelling errors, and for those not caused by intention or gross negligence of the manufacturer. Dallmeier electronic GmbH & Co.KG Cranachweg 1 93051 Regensburg, Germany www.dallmeier.com info@dallmeier.com All trademarks identified by ® are registered trademarks of Dallmeier electronic.
