Geokon GeoNet 8800 Series Instruction Manual
Wireless data acquistion network
Hide thumbs
Also See for GeoNet 8800 Series:
- Instruction manual (52 pages) ,
- Product tutorial (30 pages) ,
- Troubleshooting tips (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Geokon GeoNet 8800 Series
Summary of Contents for Geokon GeoNet 8800 Series

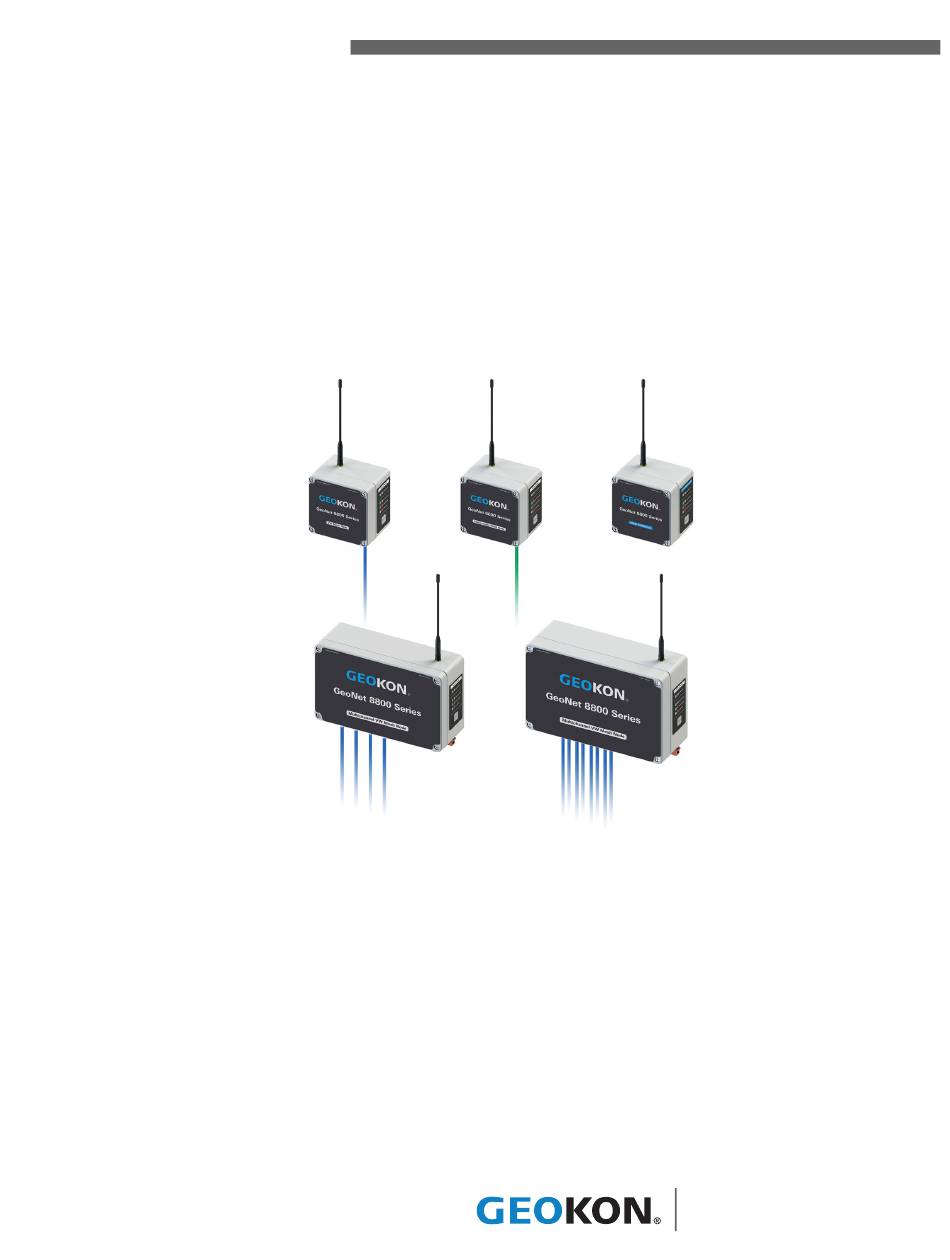

- Page 1 Model 8800 Series GeoNet Wireless Data Acquistion Network Instruction Manual ©2020, GEOKON. All rights reserved. Document Revision: S | Release date: 3/4/20...
- Page 3 WARRANTY STATEMENT warrants its products to be free of defects in materials and workmanship, GEOKON under normal use and service for a period of 13 months from date of purchase. If the unit should malfunction, it must be returned to the factory for evaluation, freight prepaid.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ............................1.1 NETWORK SUPERVISOR ......................1.2 SINGLE CHANNEL NODE ......................1.3 ADDRESSABLE NODE ........................1.4 FOUR CHANNEL NODE ........................1.5 EIGHT CHANNEL NODE ......................... 1.6 ACCESSORIES ............................1.7 GEONET MODEL IDENTIFICATION ..................1.8 NETWORKS ............................... 2. - Page 6 5.3 REPLACING BATTERIES ......................6. MODEL 8800-2-4B ADD-ON MODULE ................6.1 INTRODUCTION ..........................6.2 INSTALLATION ........................... 6.3 IP ADDRESS CONFIGURATION ................... 7. SENSEMETRICS MANAGEMENT PLATFORM ............. 7.1 CHANNEL CONFIGURATION ....................7.2 STATUS BUTTON ..........................APPENDIX A. SPECIFICATIONS ....................A.1 DEVICE SPECIFICATIONS ......................
- Page 7 FIGURES FIGURE 1: NETWORK SUPERVISOR (-SUP-232) .............1 FIGURE 2: NETWORK SUPERVISOR (-SUP-USB) ............2 FIGURE 3: SINGLE CHANNEL NODE (-01C-10P) ............2 FIGURE 4: SINGLE CHANNEL NODE (-01C-CBL) ............2 FIGURE 5: ADDRESSABLE NODE (-ADR) ................3 FIGURE 6: FOUR CHANNEL NODE (-04C) ...............3 FIGURE 7: EIGHT CHANNEL NODE (-08C) ..............3 FIGURE 8: CLUSTER TREE NETWORK TOPOLOGY ............4 FIGURE 9: WORKING AROUND OBSTRUCTIONS ............5...
- Page 8 FIGURE 39: INSTALLING NEAR A LARGE OBJECT ............36 FIGURE 40: INSTALLING CLOSE TO BUILDINGS OR FENCES/WALLS .......36 FIGURE 41: MOUNTING ONTO A METAL PLATE / INSIDE AN ENCLOSURE .....37...
- Page 9 TABLES TABLE 1: GEONET MODEL IDENTIFICATION ..............4 TABLE 2: NODE WIRING....................9 TABLE 3: LED INDICATOR MEANING ................11 TABLE 4: ADDRESSABLE SENSOR WIRING..............12 TABLE 5: MULTI-CHANNEL NODE SENSOR/LOAD LIMITS ........13 TABLE 6: STANDARD SINGLE GAUGE WIRING............15 TABLE 7: BATTERY LIFE ESTIMATES................
- Page 10 EQUATIONS EQUATION 1: 3KΩ THERMISTOR RESISTANCE .............27 EQUATION 2: 10KΩ THERMISTOR RESISTANCE ............28...
-
Page 11: Introduction
Agent software. Nodes collect battery and temperature data, and will read either 's vibrating wire gauges or GEOKON 's addressable sensors, depending on its configuration For information GEOKON regarding the installation and use of Agent software, please see the appropriate product manual. -
Page 12: Single Channel Node
An addressable node will read any RS-485 addressable sensor. Each GEOKON addressable node can read up to the following limits on the RS-485 bus: ■ 16 addressable MEMS sensors ■ 24 addressable VW sensors ■ 80 addressable temperature sensors 2 | INTRODUCTION | GEOKON... -
Page 13: Four Channel Node
FIGURE 5: Addressable Node (-ADR) 1.4 FOUR CHANNEL NODE A four channel node will read up to four vibrating wire sensors, one 3- GEOKON gauge load cell, or one 4-gauge load cell. FIGURE 6: Four Channel Node (-04C) 1.5 EIGHT CHANNEL NODE... -
Page 14: Geonet Model Identification
"hop". Examples of hops are shown in figures above and below. Up to four hops can be made between a node and the supervisor. With the ability to hop comes the ability for the supervisor to communicate with nodes that have not 4 | INTRODUCTION | GEOKON... -
Page 15: Figure 9: Working Around Obstructions
For optimum performance, recommends creating as GEOKON much vertical space as possible between the straight-line path and obstacles, including the ground. The Fresnel zone must be at least 60% obstruction-free to ensure optimal wireless communication. -
Page 16: Figure 10: Fresnel Zone
This may require extending the readout cable of the attached sensors, or connecting an antenna cable extension. 6 | INTRODUCTION | GEOKON... -
Page 17: Network Installation
NETWORK INSTALLATION Review the GeoNet Installation Tutorial available at the website, https:// GEOKON www.geokon.com/tutorial-videos. Select the mounting location with care. Certain mounting configurations can hinder or even completely block wireless signal transmission. Refer to Appendix G for more information. 2.1 SETTING UP THE NETWORK A network must include the supervisor and at least one node that is within radio range of the supervisor. -
Page 18: Mount The Device
Ensure that no dirt, water or other contaminants are allowed to enter the enclosure. Set the three-position battery select switch to the OFF (middle) position (see the figure below). FIGURE 13: Battery Select Switch 8 | NETWORK INSTALLATION | GEOKON... -
Page 19: Connect The Sensor(S)
Install the batteries by aligning the positive (+) side of the D cells with the + indicator in the battery holder. Push the batteries straight down into the holder. FIGURE 14: Battery Detail Move the battery select switch to either the Alkaline or Lithium position depending on the type of battery being used. -
Page 20: Deployment Mode
The network will not begin collecting data until the network time is set. To do this, use the Agent software (or other Modbus master). The default scan interval for data collection is 10 minutes. 10 | NETWORK INSTALLATION | GEOKON... -
Page 21: Status Button Functionality
If isolated from the rest of the network, a node will continue to sample and store data. When communication is reestablished, it will "catch up" by sending all of the collected data to the supervisor. FIGURE 16: Installation Order 2.3 STATUS BUTTON FUNCTIONALITY All GeoNet devices have red and green LED indicators to display their status. -
Page 22: Geonet Addressable Sensor Nodes
Position Color Description 485+ WHITE Communication RS-485+ 485- GREEN Communication RS-485- 12 volt power to the string BLACK Ground BARE Analog Ground (Shield) Terminal Connections TABLE 4: Addressable Sensor Wiring FIGURE 18: 12 | GEONET ADDRESSABLE SENSOR NODES | GEOKON... -
Page 23: Geonet Multi-Channel Nodes
MCNs ship with the following accessories: ■ One omnidirectional antenna (2.1 dBi). For other antenna options, please contact GEOKON technical support. ■ Two D cell alkaline batteries ■ Four desiccant packs FIGURE 19: Multi-Channel Node, Eight Channel Node Shown FIGURE 20: Multi-Channel Node Connectors;... -
Page 24: Installation
FIGURE 21: Multi-Channel Node Interior Loosen the cable gland nuts and remove the white plastic dowels. To prevent contaminants from entering the enclosure, do not remove the dowels from cable fittings that will not be used. 14 | GEONET MULTI-CHANNEL NODES | GEOKON... -
Page 25: Determining Correct Wiring
Tighten the screws a little at a time, working in a diagonal pattern; this ensures that the cover seals correctly. 4.2.2 DETERMINING CORRECT WIRING instruments with a single vibrating wire gauge should be wired as GEOKON shown in the table below: Position Color... -
Page 26: Maintenance
This is also best practice when replacing batteries in nodes. Replace D cell batteries when their measured voltage drops below 2.0 VDC. Replace external 12-volt batteries when the measured voltage drops below 11 VDC. 16 | MAINTENANCE | GEOKON... - Page 27 All data is retained in nonvolatile flash memory. Data will not be lost even if the batteries are removed for an extended period (e.g., years). REPLACE THE BATTERIES AS FOLLOWS: Place the network in deployment mode by pressing the status button on the Network Supervisor.
-
Page 28: Model 8800-2-4B Add-On Module
Double-click on the IP Address under the configuration window. In the configuration window, click on the Network tab. Check the boxes next to Modify IP address and Modify Netmask, see the figure below. 18 | MODEL 8800-2-4B ADD-ON MODULE | GEOKON... -
Page 29: Figure 22: Nport Configuration
FIGURE 22: Nport Configuration Update the IP Address, Netmask, Gateway, and DNS Server 1 fields to match your network. Note: Do not make any other changes to the settings as it may affect proper communications to the GeoNet network supervisor. FIGURE 23: Update Fields Click OK. -
Page 30: Figure 24: Ip Address With :4001 Suffix
10. Enter the new IP address followed by :4001 in the Network Address field in the Agent software. FIGURE 24: Enter the IP address followed by :4001 For more information, please refer to the Agent Software Program instruction manual, available at https://www.geokon.com. 20 | MODEL 8800-2-4B ADD-ON MODULE | GEOKON... -
Page 31: Sensemetrics Management Platform
SENSEMETRICS MANAGEMENT PLATFORM GeoNet wireless nodes are compatible with the sensemetrics sensor management platform. This combination of plug and play technologies greatly expands the ways data can be remotely collected and displayed in near real-time on a user-friendly, browser-based data platform. The figure below shows a network configuration pairing GeoNet wireless devices with sensemetrics' sensor management platform. - Page 32 22 | SENSEMETRICS MANAGEMENT PLATFORM | GEOKON...
-
Page 33: Appendix A. Specifications
APPENDIX A. SPECIFICATIONS A.1 DEVICE SPECIFICATIONS Node Supervisor Measurement Accuracy ±0.114Hz F.S. (400-5000 Hz) Data Memory 32 MB Storage Capacity >1.04Marrays Temperature Range −40 to +85 °C Thermistor Accuracy 0.5 °C 0.4 °C (on-board sensor) Thermistor Resolution 0.032 °C 0.1 °C (on-board sensor) Communication Type USB/RS-232 Communication... -
Page 34: Appendix B. Models
EIGHT CHANNEL GLAND SEAL (8800-NA-08C-CBL) For use with sensor cables that have stripped and tinned ends. The sensor cables pass through external cable glands and are wired into the terminal block. 24 | MODELS | GEOKON... -
Page 35: Compatibility
B.5 COMPATIBILITY All 8800-NA-XXX-XXX models are backwards compatible with the following legacy GeoNet products: Legacy Part Number New Part Number 8800-3-1A: 8800-NA-01C-CBL Single Channel VW GeoNet Node, Cable Gland, North America 8800-3-2A: 8800-NA-01C-10P Single Channel VW GeoNet Node, 10-Pin Bulkhead, North America 8800-4-1A: 8800-NA-SUP-232 RS-232 GeoNet Supervisor, North America... -
Page 36: Appendix C. Connector Pinouts
Description Bulkhead14: Orange Yellow Brown Green TABLE 14: Communications Connections (USB) Modbus Address and Channel TABLE 15: Channel Selection *sensemetrics Thread compatibility mode, not for use with supervisor. See Section 7 for more information. 26 | CONNECTOR PINOUTS | GEOKON... -
Page 37: Appendix D. Thermistor Temperature Derivation
APPENDIX D. THERMISTOR TEMPERATURE DERIVATION D.1 3KΩ THERMISTOR RESISTANCE Thermistor Types: ■ YSI 44005, Dale #1C3001-B3, Alpha #13A3001-B3 ■ Honeywell 192-302LET-A01 Resistance to Temperature Equation: – 273.15 A+B(LnR)+C(LnR EQUATION 1: 3kΩ Thermistor Resistance Where: T = Temperature in °C LnR = Natural Log of Thermistor Resistance A = 1.4051 x 10 B = 2.369 x 10 C = 1.019 x 10... -
Page 38: 10Kω Thermistor Resistance
341.9 125 158.6 157 81.1 45.0 8,057 2,316 62 810.6 94 333.2 126 155.1 158 79.5 44.3 7,722 2,235 63 786.6 95 324.8 127 151.7 159 78.0 43.5 TABLE 17: 10KΩ Thermistor Reeesistance 28 | THERMISTOR TEMPERATURE DERIVATION | GEOKON... -
Page 39: Appendix E. Troubleshooting
Listed below are a few commonly experienced problems and remedial action. These topics are also covered in the Troubleshooting GeoNet Networks and Agent Software Tutorial, and the GeoNet Troubleshooting Guide, both of which are available at ’s website, https://www.geokon.com. Contact GEOKON if additional assistance is needed. GEOKON SYMPTOM: UNIT WILL NOT RESPOND TO COMMUNICATIONS □... - Page 40 SYMPTOM: GREEN LIGHT FLASHES SLOWLY (ONCE PER SECOND) Bootloader is activated, complete the following: Change channel switches to a valid setting Press the Reset button on the circuit board. SYMPTOM: GREEN AND RED LIGHT ALTERNATING □ Device malfunction, contact GEOKON 30 | TROUBLESHOOTING | GEOKON...
-
Page 41: Appendix F. Firmware Update
APPENDIX F. FIRMWARE UPDATE WARNING! Performing a firmware update on a Node might reset the Node memory. Retrieve all data from the Network prior to performing a firmware update. F.1 PROCEDURE Put the Network in deployment mode (see Section 2.2). Power off the Network Supervisor by moving the battery select switch to "OFF"... -
Page 42: Figure 28: Rs-232 Connector Detail
B8800-5 Update Cable 8001-7 USB to RS-232 Adapter FIGURE 29: Update Cable Detail Move all channel select dipswitches to the "On" position. Refer to the figure below. FIGURE 30: Channel Selector Switch 32 | FIRMWARE UPDATE | GEOKON... -
Page 43: Figure 31: Run Geonetupdateutility.exe
The green LED indicator on the right side of the unit will begin to flash in one-second intervals. Download the 8800 GeoNet Firmware Update Package from the GEOKON website (https://www.geokon.com/software). In Windows Explorer, right-click the downloaded file and select "Extract All..." (refer to the figure below). FIGURE 31: Run "GeoNetUpdateUtility.exe"... -
Page 44: Figure 35: Click Select File
Click the triangle to the left of "Ports (COM & LPT)" to expand the list. Plug in the cable; the port will appear in the list. FIGURE 37: Select COM Port 16. Click the Program button. See the figure below. FIGURE 38: Update Progress 34 | FIRMWARE UPDATE | GEOKON... -
Page 45: Troubleshooting
RS-232 version supervisor. □ Perform updates using the -provided 8001-7 USB to RS-232 GEOKON adapter. Other adapters and native serial ports have been unreliable. □ Make sure the batteries are fresh. F.3 CHANGE SUMMARY FOR FIRMWARE VERSIONS... -
Page 46: Appendix G. Device Mounting Considerations
Common mounting mistakes include the following: Nodes Shipping container blocks signal FIGURE 39: Installing Near a Large Object Transmission blocked in multiple directions Node not mounted vertically FIGURE 40: Installing Close to Buildings or Fences/Walls, and/or Horizontally 36 | DEVICE MOUNTING CONSIDERATIONS | GEOKON... - Page 47 External enclosure blocks signal Metal plate both blocks and reflects signal FIGURE 41: Mounting onto a Metal Plate and/or Inside an Enclosure Large and/or massive structures, such as walls, buildings, hills, etc. can block and/or reflect RF signals. Tips include: ■...
-
Page 48: Appendix H. Certifications
The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CETECOM Inc. USA. Page 3 of 25 38 | CERTIFICATIONS | GEOKON... - Page 49 Fax: +1 (408) 586 6299 EMC Lab Manager: Cindy Li Responsible Project Leader: Isabel Wang Identification of the Client Applicant’s Name: Geokon Street Address: 48 Spencer Street City/Zip Code Lebanon, NH 03766 Country Identification of the Manufacturer Same as Client--------------- Manufacturer’s Name:...
- Page 50 Location: External Gain: 2.1 dBi Radios Co-location: Sample Revision: Prototype Unit; Production Unit; Pre-Production EUT Dimensions [mm]: 122 X 120 X 91 Weight [grams]: 1000 EUT Diameter: < 60 cm Other __________ Page 5 of 25 40 | CERTIFICATIONS | GEOKON...
- Page 52 GEOKON Phone: +1 (603) 448-1562 GEOKON 48 Spencer Street Email: info@geokon.com is an ISO 9001:2015 Lebanon, New Hampshire Website: www.geokon.com registered company 03766, USA...
