- Page 1 Model 8800 Series GeoNet Wireless Data Hosting System Instruction Manual ©2021, GEOKON. All rights reserved. Document Revision: Y | Release date: 07/09/21...
- Page 3 WARRANTY STATEMENT warrants its products to be free of defects in materials and workmanship, GEOKON under normal use and service for a period of 13 months from date of purchase. If the unit should malfunction, it must be returned to the factory for evaluation, freight prepaid.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ............................1.1 MODEL IDENTIFICATION ......................1.2 MODEL LIST ............................. 1.3 MESH TILT LOGGER SERIAL NUMBERS ................ 2. NETWORK COMPONENTS ......................2.1 CELLULAR GATEWAY ........................2.2 LOCAL GATEWAY ..........................2.2.1 RS-232 (880X-XX-SUP-232) ......................2.2.2 USB (880X-XX-SUP-USB) ....................... - Page 6 3.3.1 POWER THE LOGGERS ....................... 3.3.2 VERIFY THE NETWORK CONNECTION OF THE LOGGERS .......... 3.4 MOUNTING THE DEVICES ....................... 3.4.1 MOUNTING LOCATION CONSIDERATIONS ............... 3.4.2 GROUND THE GATEWAY AND LOGGERS ................3.5 CONNECT THE SENSORS TO LOGGERS ..............3.5.1 MAKING CABLE GLAND CONNECTIONS ................
- Page 7 B.2.1 RS-232 (880X-XX-SUP-232) ...................... B.2.2 USB (880X-XX-SUP-USB) ......................APPENDIX C. THERMISTOR TEMPERATURE DERIVATION ....... APPENDIX D. TROUBLESHOOTING ..................APPENDIX E. FIRMWARE UPDATE ..................E.1 PROCEDURE ............................E.2 FIRMWARE TROUBLESHOOTING ..................APPENDIX F. SOLAR PANEL KIT ....................F.1 SELECT A LOCATION ........................
- Page 8 FIGURES FIGURE 1: SERIAL NUMBER PLACEMENT ON MESH TILT LOGGERS ......3 FIGURE 2: CELLULAR GATEWAY ..................4 FIGURE 3: RS-232 LOCAL GATEWAY ................4 FIGURE 4: USB LOCAL GATEWAY ..................5 FIGURE 5: 10-PIN SINGLE CHANNEL LOGGER ...............5 FIGURE 6: GLAND-SEAL SINGLE CHANNEL LOGGER ............6 FIGURE 7: MESH ADDRESSABLE LOGGER ..............6 FIGURE 8: FOUR-CHANNEL LOGGER ................7 FIGURE 9: EIGHT-CHANNEL LOGGER ................7...
- Page 9 FIGURE 39: CHOOSE THE ’EXTRACT ALL’ MENU OPTION ..........36 FIGURE 40: CLICK THE ’EXTRACT ALL’ BUTTON ............36 FIGURE 41: SELECT THE DESTINATION ................36 FIGURE 42: OPEN THE GEOKON UPDATE UTILITY ............36 FIGURE 43: CLICK ’SELECT FILE’ ...................36 FIGURE 44: SELECT THE FIRMWARE TEXT FILE ............37 FIGURE 45: SELECT THE COM PORT ................37...
- Page 10 TABLES TABLE 1: GEONET 8800 SERIES MODEL LIST ..............3 TABLE 2: FOUR-CHANNEL MESH VW LOGGER GAUGE/LOAD LIMITS ...... 7 TABLE 3: EIGHT-CHANNEL MESH VW LOGGER GAUGE/LOAD LIMITS...... 7 TABLE 4: LEGACY COMPATIBILITY CHART ..............9 TABLE 5: CHANNEL SELECTION ..................13 TABLE 6: CELLULAR GATEWAY BATTERY SWITCH OPTIONS ........14...
-
Page 11: Introduction

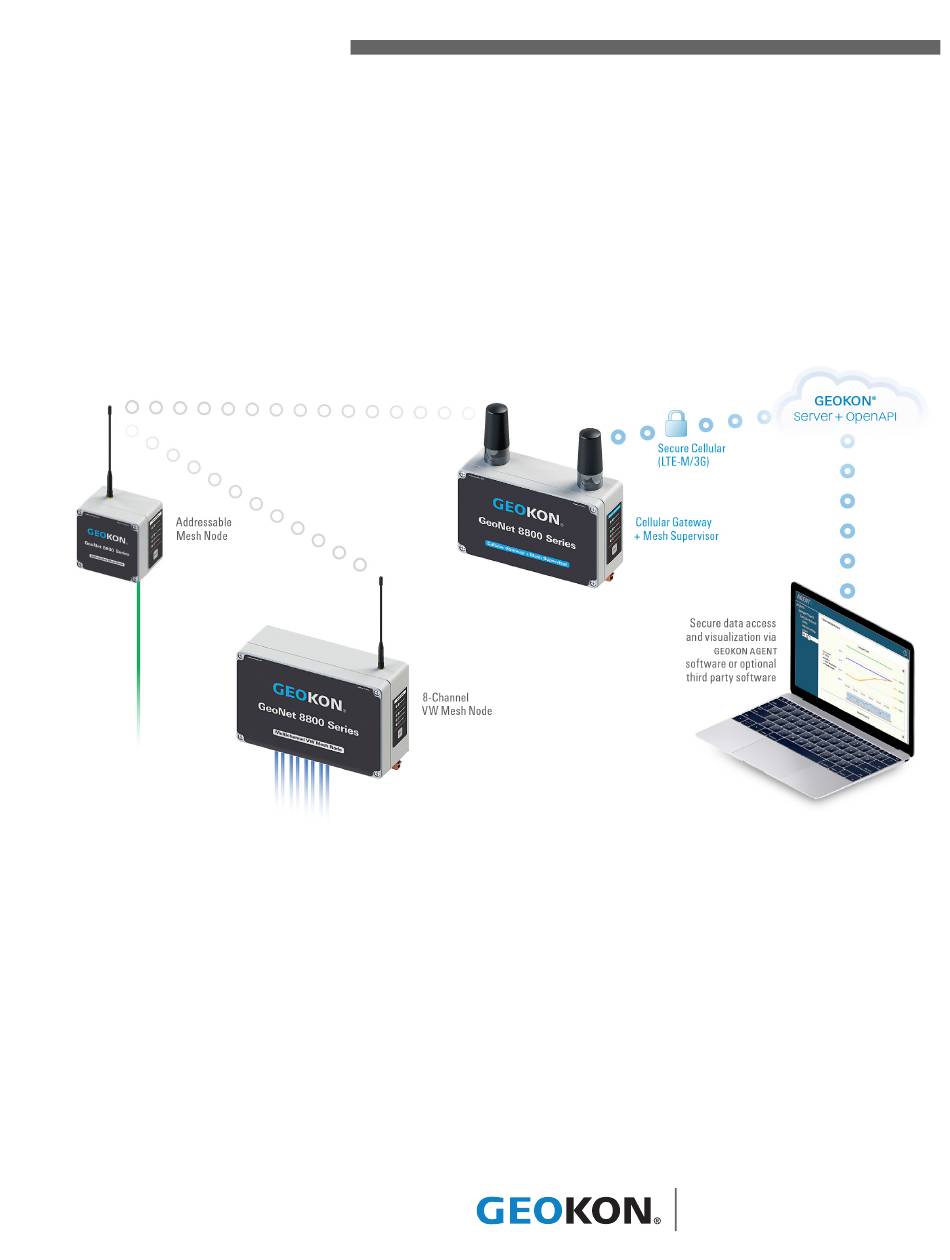

Gateway, single- and/or multiple-channel Mesh Vibrating Wire (VW) Loggers, Mesh Addressable Loggers, a Mesh Tilt Logger, and Agent software. Model 8800 Series loggers collect data from 's VW gauges and sensors. GEOKON The Mesh Tilt Logger contains an integrated biaxial tiltmeter, and GEOKON functions in the same manner as other loggers. -
Page 12: Model Identification

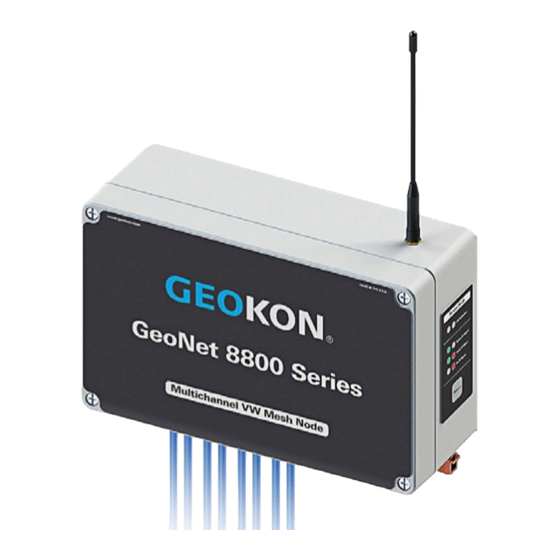

Logger Type 01C: Single-Channel Mesh VW Logger ADR: Mesh Addressable Logger 04C: Four-Channel Mesh VW Logger 08C: Eight-Channel Mesh VW Logger TLT: Mesh Tilt Logger Sensor Connection CBL: Cable Gland 10P: 10-Pin NAP: Not Applicable 2 | INTRODUCTION | GEOKON... -
Page 13: Model List
Eight-Channel Mesh VW Logger, Cable Gland, Peru 8800-PE-TLT-NAP Mesh Tiltmeter Logger, No Cable Entry, Peru TABLE 1: GeoNet 8800 Series Model List 1.3 MESH TILT LOGGER SERIAL NUMBERS Mesh tilt loggers have two serial numbers: one for the device as a whole, and one for the internal tiltmeter. -
Page 14: Network Components
Cellular Gateway models. 2.2.1 RS-232 (880X-XX-SUP-232) This model features an RS-232 connector, for transferring data using an RS-232 cable to a PC running Agent software. FIGURE 3: RS-232 Local Gateway (8800-XX-SUP-232) 4 | NETWORK COMPONENTS | GEOKON... -
Page 15: Usb (880X-Xx-Sup-Usb)
2.3 SINGLE-CHANNEL LOGGER A single-channel logger will read one vibrating wire gauge, either via GEOKON 10-pin cable or via a cable with stripped conductor wires, depending on model. Though designed to send data wirelessly to a gateway, this model also features a USB connector, for transferring data using a USB cable to a PC running Agent software. -
Page 16: Gland Seal (880X-Xx-01C-Cbl)
2.4.1 SINGLE-CHANNEL (8800-XX-ADR-CBL) For use with sensor cables with stripped and tinned ends. The sensor cable passes through an external cable gland and is wired into the terminal block. FIGURE 7: Mesh Addressable Logger (8800-XX-ADR-CBL) 6 | NETWORK COMPONENTS | GEOKON... -
Page 17: Four-Channel (880X-Xx-04C-Cbl)
2.4.2 FOUR-CHANNEL (880X-XX-04C-CBL) FIGURE 8: Four-Channel Logger (880X-XX-04C-CBL) Note: When inserting stripped conductor wires into the terminal blocks, be sure to connect them to the VW terminal blocks. A four-channel logger can be configured as follows: Model Maximum Number of Gauges Maximum Number of Load Cells 880X‑XX‑04C‑CBL Four... -
Page 18: Additional Information
Gateways are shipped with the following additional accessories: ■ Set of two screwdrivers, one Phillips head and one flat-head ■ One RS-232 or USB cable (depending on the model purchased) ■ USB to RS-232 adapter cable (RS-232 models only) 8 | NETWORK COMPONENTS | GEOKON... -
Page 19: Compatibility With Legacy Geonet Products
2.7 COMPATIBILITY WITH LEGACY GEONET PRODUCTS 8800-XX-XXX-XXX models are compatible with the following legacy GeoNet products: Legacy Part Number4: New Part Number 8800-4-1A 8800-NA-SUP-232 RS-232 GeoNet Local Gateway, North America 8800-4-2A 8800-NA-SUP-USB USB GeoNet Local Gateway, North America 8800-3-1A 8800-NA-01C-CBL Single Channel VW GeoNet Logger, Cable Gland, North America 8800-3-2A 8800-NA-01C-10P... -
Page 20: Figure 12: Mesh Network Topology
GEOKON space as possible between the straight-line path and obstacles, including the ground. The Fresnel zone must be at least 60% obstruction-free to ensure optimal wireless communication. The figure below illustrates the Fresnel zone. 10 | NETWORK COMPONENTS | GEOKON... -
Page 21: Figure 14: Fresnel Zone
Fresnel Zone Building Building FIGURE 14: Fresnel Zone IMPORTANT: If communication cannot be established when GeoNet is deployed to a site, it may be necessary to elevate the devices or their antennas, or to move them to a location where a radio link can be established. This may require extending the readout cable of the attached sensors, or adding an antenna cable extension. -
Page 22: Network Installation
Move the channel select DIP switches (shown in the figure below) to any of the twelve valid positions listed in Table 5 below. The setting will take effect at power-up, or after the device is reset. 12 | NETWORK INSTALLATION | GEOKON... -
Page 23: Configure The Gateway
ON = up OFF = down FIGURE 15: Channel Select Switches Channel5: OFF (down) ON (up) TABLE 5: Channel Selection 3.2 CONFIGURE THE GATEWAY 3.2.1 POWER CONCERNS In a new network, be sure to power the gateway before powering the loggers. When the unit is powered, a green LED on the right side of the box will flash twice after a small delay, indicating the unit has power. -
Page 24: Seal The Gateway
Place the supplied desiccant packs inside the enclosure. Ensure the cover gasket and the mating ridge on the enclosure are clean, and that the gasket is properly seated inside the groove on the cover. Place the cover on the unit. 14 | NETWORK INSTALLATION | GEOKON... -
Page 25: Set The Network Time
A Cellular Gateway will set the network time automatically when it connects to the cellular network. A Local Gateway must have its time set manually using ’s "Agent" data collection software. GEOKON Connect the Local Gateway to the computer using the -supplied USB GEOKON cable. -
Page 26: Mounting Location Considerations
Common mounting mistakes include the following: Loggers Shipping container blocks signal FIGURE 19: Installing Near a Large Object Transmission blocked in multiple directions Logger not mounted vertically FIGURE 20: Installing Close to Buildings or Fences/Walls, and/or Horizontally 16 | NETWORK INSTALLATION | GEOKON... -
Page 27: Ground The Gateway And Loggers
External enclosure blocks signal Metal plate both blocks and reflects signal FIGURE 21: Mounting onto a Metal Plate and/or Inside an Enclosure Large structures, such as walls, buildings, hills, etc. can block and/or reflect RF signals. Tips include: ■ Mount antennas above metallic structures. ■... -
Page 28: Making 10-Pin Cable Connections
Important! Make sure the cover seals tightly and evenly. WARNING: Single-channel enclosure lids are square but not symmetrical. They must be oriented correctly; attempting to seal a misaligned lid could strip the threads and/or allow moisture to enter the enclosure. 18 | NETWORK INSTALLATION | GEOKON... -
Page 29: Record Logger And Sensor Serial Numbers
Note: The Cellular Gateway cannot account for loggers added to the network after the commissioning process has been completed. Run the commissioning process again when adding new loggers. To commission the Cellular Gateway, do the following: Display https://api.geokon.com in a Web browser. FIGURE 23: Accessing the Cloud Click "create user". -
Page 30: Figure 25: Add An Account
Enter your credentials and credit card information, then click Submit. A copy of the account token will be emailed to the address associated with the account as a receipt. FIGURE 27: Enter your Credentials 20 | NETWORK INSTALLATION | GEOKON... -
Page 31: Figure 28: Enter The Serial Number
Click Devices, then enter the serial number of the Cellular Gateway. FIGURE 28: Enter the Serial Number 10. Click Register Device. 11. Click the button next to Activate Cellular Service to activate the Cellular Gateway. FIGURE 29: Activate Cellular Service 12. -
Page 32: Deployment Mode
For information on the function of the Status button, see Section 3.8. When the network is in Deployment mode, the network status will be indicated by the LEDs on the gateway approximately every 10-15 seconds. 22 | NETWORK INSTALLATION | GEOKON... -
Page 33: Placing The Gateway And Adding Loggers
Under normal Deployment mode radio conditions, the gateway and logger units will find each other in less than three minutes; this establishes the network. Once the network is established and the network time is set, the gateway's green LED will flash simultaneously with the green LEDs on the loggers. If the network time has not been set, the gateway's red LED will blink in unison with the loggers. -
Page 34: Table 8: Led Indicator Meaning
Take a reading and send existing data immediately Press and release Display the current status, then indicate signal strength Logger Press and release every radio cycle for 10 minutes TABLE 9: Status Button Functions 24 | NETWORK INSTALLATION | GEOKON... -
Page 35: Maintenance
In this type of environment, recommends that the internal desiccant packs GEOKON be replaced at intervals to prevent condensation from corroding or shorting out the internal electronics. -
Page 36: Lightning Protection
(if equipped) with a 12 AWG or larger wire. This will provide a path from the device to earth ground in the event of a lightning strike. 26 | MAINTENANCE | GEOKON... -
Page 37: Model 8800-2-4B Add-On Module
See Section 3.2.1. 5.3 IP ADDRESS CONFIGURATION sets the module to communicate with a GeoNet gateway; however, the GEOKON user must finish the setup so that it works with their network. Configure an IP address by following the instructions below. -
Page 38: Figure 35: Update Fields
10. Enter the new IP address followed by :4001 in the Network Address field in Agent software. FIGURE 36: Enter the IP address followed by :4001 For more information on using Agent software, please refer to the Agent Software Program instruction manual, available at https://www.geokon.com. 28 | MODEL 8800-2-4B ADD-ON MODULE | GEOKON... -
Page 39: Appendix A. Specifications
USB Driver FTDI Cellular Gateway: Battery pack, or 9‑24V DC external Power Supply Local Gateway: D cell, alkaline or lithium (2x), or 12V external GEOKON Operating Time Please contact Operating Temperature −40 °C to +85 °C Cellular Gateway: 160 × 260 × 91 mm (L×W×H) -
Page 40: Mesh Tilt Logger Specifications
Nonlinearity ±0.005° across ±30° range (0.09 mm/m) Arcseconds [Degrees] Arcseconds [Degrees ] / °C Temperature‑Dependent Uncertainty 68.8 [0.019°] Angle Resolution 0.9 [0.00025°] Arcseconds [Degrees] Tilt Range ±90° Degrees Axes TABLE 14: Mesh Tilt Logger Specifications 30 | SPECIFICATIONS | GEOKON... -
Page 41: Appendix B. Connector Pinouts
APPENDIX B. CONNECTOR PINOUTS B.1 GAUGE CABLE B.1.1 GLAND SEAL MESH VW LOGGERS (880X-XX-01C-CBL) Description Cable Wire Color Terminal Strip Position Vibrating Wire+ VW− Vibrating Wire− BLACK Thermistor+ WHITE TH− Thermistor− GREEN Analog Ground (shield) BARE WIRE TABLE 15: Mesh VW Logger Cable Connections (Gland Seal) B.1.2 10-PIN BULKHEAD MESH VW LOGGERS (880X-XX-01C-10P) 10‑Pin Bulkhead Internal Wire Color... -
Page 42: Appendix C. Thermistor Temperature Derivation
166.7 58.3 21.89K 2872 582.6 162.0 56.8 20.70K 2750 562.8 157.6 55.6 19.58K 2633 543.7 153.2 18.52K 2523 525.4 149.0 17.53K 2417 507.8 145.0 16.60K 2317 490.9 141.1 TABLE 20: 3KΩ Thermistor Resistance 32 | THERMISTOR TEMPERATURE DERIVATION | GEOKON... -
Page 43: Appendix D. Troubleshooting
Listed below are a few commonly experienced problems and remedial action. These topics are also covered in the Troubleshooting GeoNet Networks, Agent Software Tutorial, and in the GeoNet Troubleshooting Guide, all of which are available at ’s website, https://www.geokon.com. Contact GEOKON if additional assistance is needed. GEOKON SYMPTOM: UNIT WILL NOT RESPOND TO COMMUNICATIONS □... - Page 44 SYMPTOM: GREEN LIGHT FLASHES SLOWLY (ONCE PER SECOND) Bootloader is activated, complete the following: Change channel switches to a valid setting. Press the Reset button on the circuit board. SYMPTOM: GREEN AND RED LIGHT ALTERNATING □ Device malfunction, contact GEOKON 34 | TROUBLESHOOTING | GEOKON...
-
Page 45: Appendix E. Firmware Update
FIGURE 38: USB Cable Connection Download the '8800 GeoNet Firmware Update Package' from the GEOKON website (https://www.geokon.com/software). Right-click on the downloaded file and choose 'Extract All...' from the menu. MODEL 8800 SERIES GEONET WIRELESS DATA HOSTING SYSTEM | FIRMWARE UPDATE | 35... -
Page 46: Figure 39: Choose The 'Extract All' Menu Option
Select a destination for the files and then click 'Extract'. FIGURE 41: Select the Destination then click the 'Extract' Button Open 'GeoNetUpdateUtility.exe'. If a security warning appears, click 'Run'. FIGURE 42: Open the GEOKON Update Utility Click 'Select File'. FIGURE 43: Click the 'Select File' Button... -
Page 47: Firmware Troubleshooting
□ Perform updates using the -provided 8001-7 USB to RS-232 GEOKON adapter. Other adapters and native serial ports have been unreliable. Make sure the batteries are fresh. MODEL 8800 SERIES GEONET WIRELESS DATA HOSTING SYSTEM | FIRMWARE UPDATE | 37... -
Page 48: Appendix F. Solar Panel Kit
Select a location for the solar panel. Assemble and adjust the mounting bracket to the proper angle. Install the mounting bracket. Secure the solar panel to the mounting bracket. Connect the power cable to the gateway. 38 | SOLAR PANEL KIT | GEOKON... -
Page 49: Select A Location
F.1 SELECT A LOCATION Choose a location for the solar panel that is clear of obstructions and anything that might cast a shadow on the panel. F.2 ASSEMBLE THE MOUNTING BRACKET When assembling the two sections of the mounting bracket, be sure to set the sections to the desired angle before tightening the nuts. -
Page 50: Connect The Power Cable
Cellular Gateway. Tighten the retaining ring on the plug, for strain 9-24V relief. Note: Be sure to implement a drip loop, as indicated in the previous figure, to prevent water ingress through the power connector. 40 | SOLAR PANEL KIT | GEOKON... - Page 52 GEOKON Phone: +1 (603) 448-1562 GEOKON is an ISO 9001:2015 48 Spencer Street Email: info@geokon.com Lebanon, New Hampshire Website: www.geokon.com registered company 03766, USA...
