PoE Port Setup:

Individual ports may be disabled if those ports are not used or to avoid the connection of unauthorized PoE devices .
1 . To disable one or more ports click on the Disable radio button(s) in the PoE column (Fig. 6, pg. 10) .
2 . To enable one or more ports click on the Enable radio button(s) in the PoE column (Fig. 6, pg. 10).
Note: To enable all ports click on the Enable All link below PoE column .
3 . Click Submit to save the changes or proceed with programming .

PoE Port Shutdown:

Individual ports may be set for PoE shutdown . PoE shutdown affects only enabled ports and only occurs when a
trigger input is applied to the PoE shutdown terminals on the NetWayMV .
1 . To enable PoE shutdown for one or more ports click on the Enable radio button(s) in the PoE shutdown
column (Fig. 6, pg. 10) .
2 . To disable PoE shutdown for one or more ports click on the Disable radio button(s) in the PoE shutdown
column (Fig. 6, pg. 10) .
Note: To enable or disable PoE shutdown for all ports click on corresponding link below PoE shutdown column .
3 . Click Submit to save the changes or proceed with programming .

Power Allocation Mode:

NetWayMV features the ability to select how total power is allocated to the ports .
- Class Restricted Power Mode - each port will be allocated the maximum rated power that the PoE device
will broadcast .
- Dynamic Power Mode - each port will supply the specific amount of power that the PoE device requires
for operation .
Note: Be sure not to exceed the total power NetWay8MV/NetWay16MV is rated at .
1 . Click on the corresponding radio button to set the Power Mode desired (Fig. 6, pg. 10) .
2 . Click Submit to save the changes or proceed with programming .

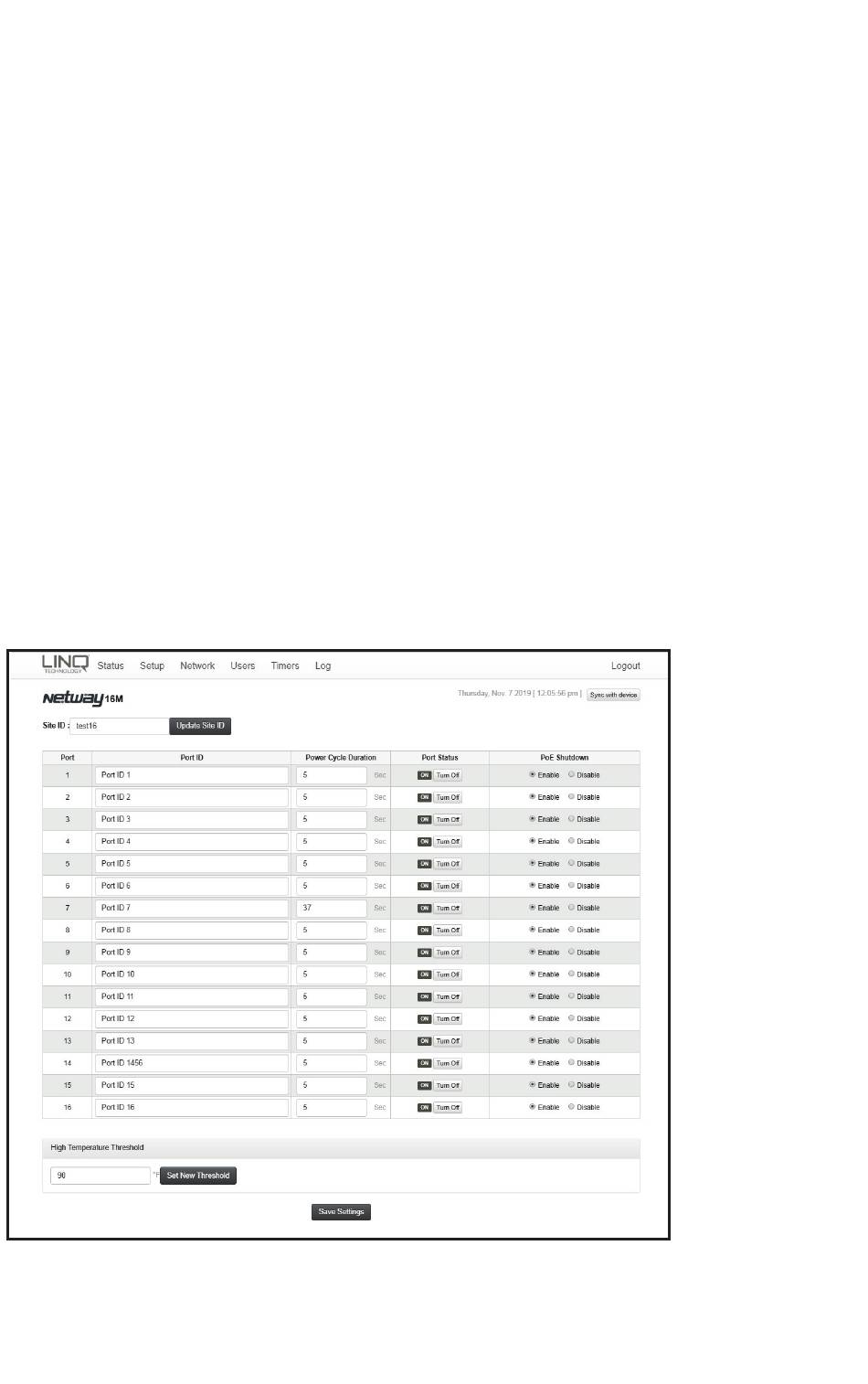

Fig. 6
