8 . Port status LEDs on the NetWayMV will initialize when PoE devices are connected as follows:
- LED will illuminate when devices are IEEE 802 .3af compliant .
- LED will blink once and illuminate when devices are IEEE802 .3at compliant (PoE Plus) .
9 . To utilize the PoE shutdown feature it is necessary to do the following:
a . Connect a device that will provide a low voltage trigger input (see Technical Specifications pg. 5) to
terminals marked [+ – , PoE Shutdown] on the NetWayMV (Fig. 1e, pg. 4) . When voltage is applied, the
PoE shutdown enabled PoE port(s) will drop to zero volts . Removing the low voltage trigger input at the
[+ – , PoE shutdown] terminals will allow the PoE port(s) to operate normally and supply power to PoE
compliant devices . Power will reset in approximately 4 seconds . Although there is no output voltage to
power PoE devices during shutdown, data signals may still be present on the data pair lines of the
structured cable .
b . Individual ports must be programmed utilizing the user interface (see User Interface and Programming,
pgs. 7 & 8) .
Port Status
All Ports Off
Port Off
Port On
Class 4 detection Port
Non-compliant Device
Port Overload Fault
4 Port Overload Grouped
8 Port Overload Grouped

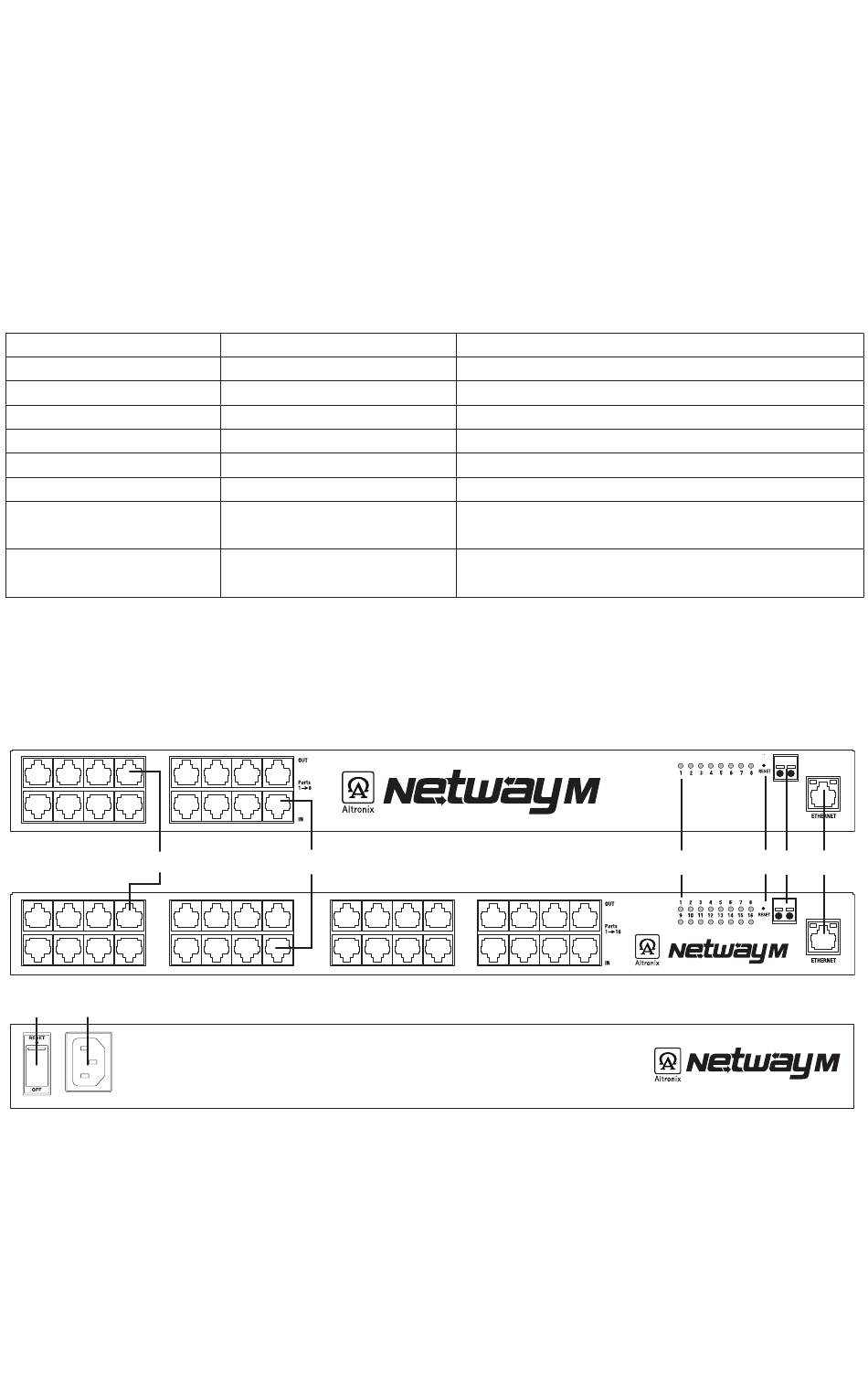

Fig. 1
NetWay8MV - Front Panel
1a
NetWay16MV - Front Panel
1g 1h
AC POWER
NetWay8M & NetWay16MV - Rear Panel
1a OUT 1-8 (NetWay8MV), OUT 1-16 (NetWay16MV): Structured cable to PoE compliant cameras/edge devices .
1b IN 1-8 (NetWay8MV), IN 1-16 (NetWay16MV): Structured cable to ethernet switch or video server .
1c LED(s) 1-8 (NetWay8MV), 1-16 (NetWay16MV): Port status LEDs .
1d Reset: Restores unit to factory settings .
1e + – , PoE Shutdown: Low voltage trigger input (see Technical Specifications pg. 6).
1f Ethernet: LAN or laptop connection enables NetWayMV programming and status monitoring .
1g Illuminated master power disconnect circuit breaker (switch):
• OFF position Circuit breaker tripped . Switch not illuminated .
• RESET (ON) position . Switch illuminated .
1h IEC 320 Connector: 220VAC, 60Hz (grounded line cord included) .
- 4 -

Port Status and LED Flash Codes:

Flash Codes
Sequential LED Port Scan
OFF
ON
Blinks 2 times
2Hz
5Hz
5Hz
5Hz
1b
Description
No devices connected
LED OFF
LED ON
Enables power to PoE devices .
Will prevent port from turning on .
Will prevent port from turning on .
4 LEDs
Will prevent ports from turning on .
LEDs 1-8 Power Supply Overload for ports 1-8 .
LEDs 9-16 Power Supply Overload for ports 9-16 .
+ PoE --
SHUTDOWN
1c 1d 1e 1f
+ PoE --
SHUTDOWN
NetWay8MV / NetWay16MV
