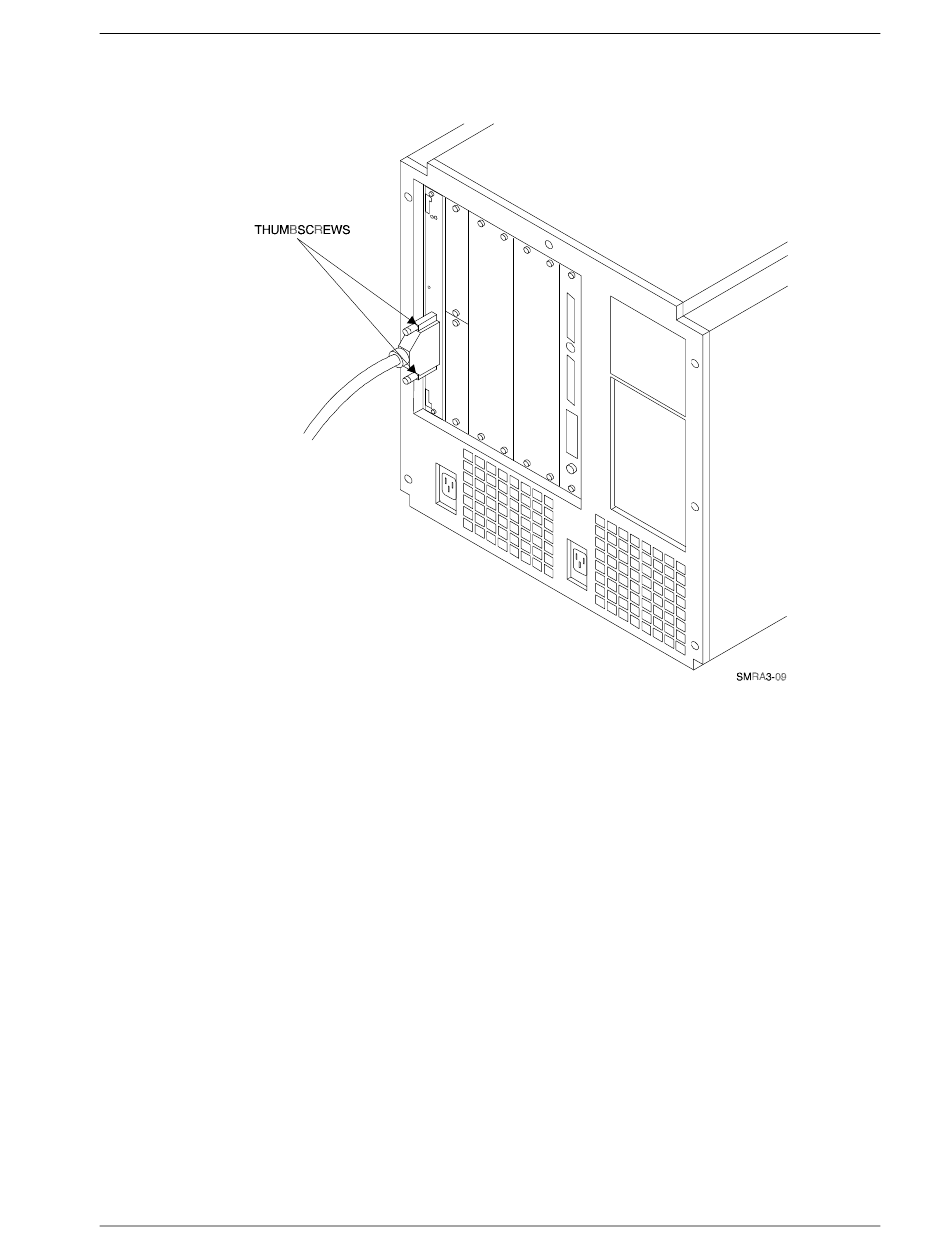

Figure 3–7 Host Adapter Board with Cable Attached

3.2 Installing the Subsystem

1. Using the keys provided, unlock the RAID Array Enclosure.
2. Install any additional disk StorageWorks Building Blocks (SBBs) up to a maximum of 24
SBBs. Begin with the lowest uninstalled row and add SBBs from left to right. To install
an SBB, hold it in both hands, insert it into the guide slots, and firmly push it into the
shelf until the mounting tabs snap in place.
3. Install the BN21K-05 three meter cable between the host system and the RAID

Controller.

•
Route the right angle connector end of the cable under the SWXRA-Yx Subsystem
enclosure and up through the front access hole nearest to the connector on the RAID
controller.
•
Install the connector with the cable dressed to the right by firmly pushing it onto the
controller's mating connector.
•
Secure it by tightening the 2 screws on the cable connector.
4. Install the power cable. Connect the female end of the power cable to the RAID Controller
power controller located at the lower right front corner of the array. Plug the power cable
into a 110/220 VAC line voltage source (the power supply automatically senses the
voltage level and will work with either voltage).
