Removing the SWXRA-Yx from the Pallet

Use the following procedure to remove the SWXRA-Yx from the shipping pallet:
1. Attach the ramp to the shipping pallet by fitting the lip of the ramp into the groove on the
pallet, as shown in Figure 1–3.
2. Lift the lock lever on each front caster to its up position so that the SWXRA-Yx
enclosure can be moved.

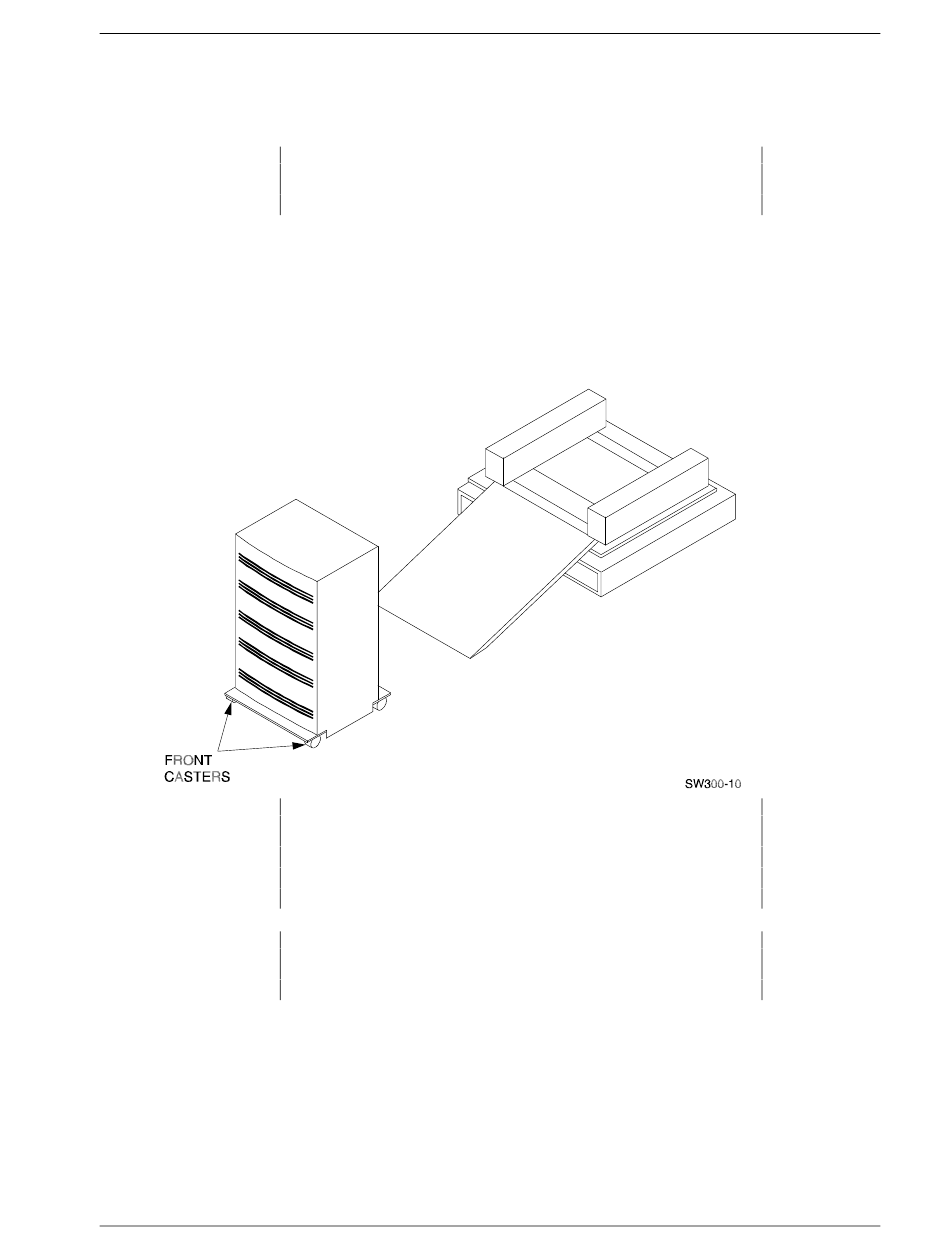

Figure 1–3 Installation of Ramp on Shipping Pallet
3. Grasping the sheet metal base assembly, carefully lift the rear of the SWXRA-Yx
enclosure over the "hump" in the center of the pallet and then roll the SWXRA-Yx
enclosure off the pallet and down the ramp to the floor. If any further lifting of the
SWXRA-Yx is required, grasp the sheet metal base assembly on the side and lift it
carefully.
4. Retain the shipping container and all packing materials.
EK–SMRA3–IG. C01
Serious personnel injury may result if correct safety precautions
are not taken during the removal procedure.
We recommend that three people be assigned to the task of
unloading the SWXRA-Yx array from its shipping pallet. Failure to
use sufficient personnel may result in personnel injury and
equipment damage.
Do not drop the SWXRA-Yx array from a height of more than two
inches, as serious structural damage can result.
WARNING
WARNING
CAUTION
Chapter 1. Unpacking
1–3
