3. Open the host computer. Refer to your system manual for assistance in completing this
procedure.

3.1.2 Installing the Host Adapter

The following steps must be performed to successfully install the HP-PB host adapter:
Select an available double-high adapter slot.
Verify the setting of the SCSI ID dip switches.
Insert the HP-PB host adapter in the available slot.
Connect cable to adapter connector.
The faceplate of the adapter contains two LEDs (see Figure 3-1). A green LED (Term Pwr)
illuminates to indicate that the adapter is supplying termination power to the SCSI Bus. An
amber LED (SelfTest Fail) illuminates to indicate that the adapter failed its self-test
procedure.

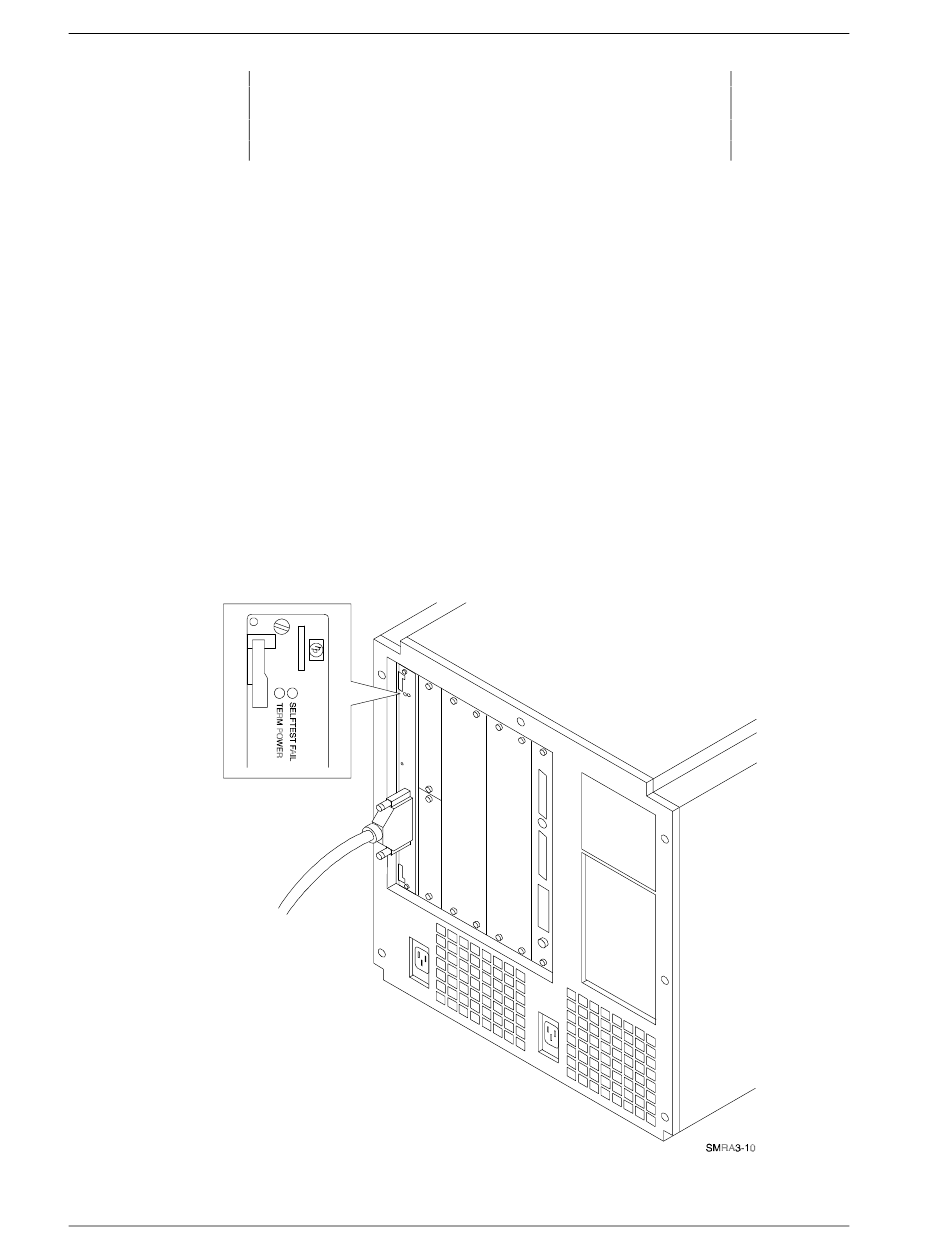

Figure 3-1 Adapter Faceplate LEDs
3–2
Failure to remove power from the host computer and peripherals
may introduce a personal hazard, or may result in damage to the
host computer or loss of stored data.
WARNING
EK–SMRA3–IG. C01
