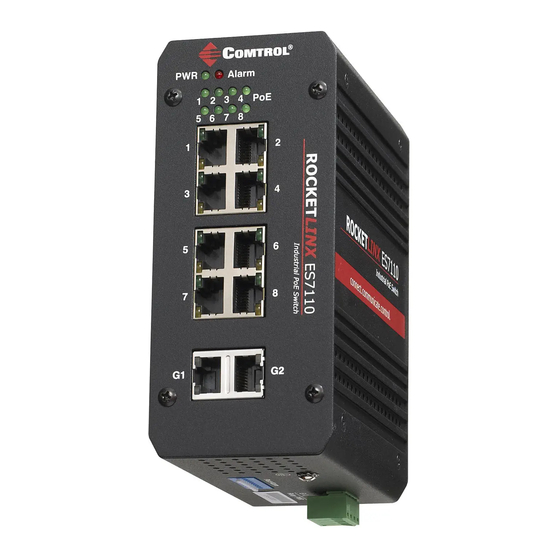

- Page 1 ROCKETLINX ES7110 Industrial PoE Switch Quick Installation Guide ES7110 | ES7110-VB www.comtrol.com 2000550 Rev C...
- Page 2 The compact IP30 rigid aluminum case allows the ES7110 to be reliably operated in an extreme environment (-25° to 70°C). Refer to the Comtrol web site. Set the DIP Switch The ES7110 has a 10-pin DIP switch located on the bottom panel to configure the Port Link Alarm for the Ethernet ports.
- Page 3 Wire the Power Use the following procedure to wire the power and ground. 1. Disconnect the terminal block from the ES7110. Power Supply DC Power output AC Power input 2. Insert the positive and negative 12 to 24AWG wires (12-24AWG) into the Wire PWR+ and PWR- contacts.
- Page 4 DIN Rail Mount The DIN rail clip is already attached on the rear side of the ES7110. 1. Insert the upper end of the DIN rail clip into the back of the DIN rail track from its upper side. 2. Lightly push the bottom of the DIN rail clip into the track. 3.
- Page 5 All the Fast Ethernet ports automatically detect the signal from the connected devices to negotiate the link speed and duplex mode. Auto MDI/MDIX allows you to connect another switch, hub, or workstation without changing straight-through or crossover cables. Crossover cables cross-connect the transmit lines at each end to the received lines at the opposite end.
- Page 6 Comtrol Customer Service You can use one of the following methods to contact Comtrol Corporation. Contact Method Web Address or Phone Number Support http://www.comtrol.com/pub/en/support ES7110: ftp://ftp.comtrol.com/html/ES7110.htm Downloads ES7110-VB: ftp://ftp.comtrol.com/html/ES7110-VB.htm Web Site http://www.comtrol.com Phone 763.957.6000...
