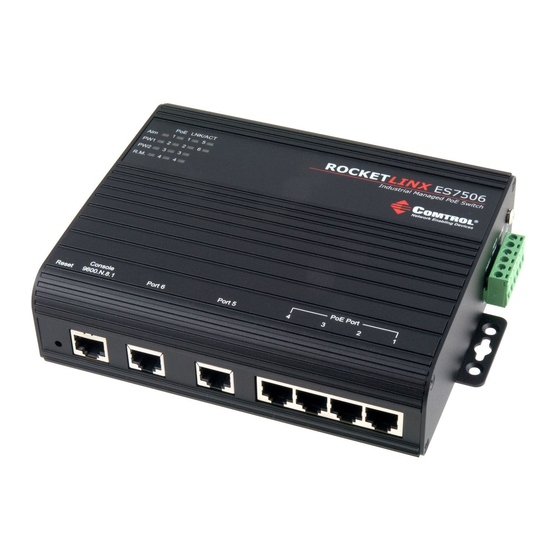

- Page 1 ROCKETLINX ES7506 Industrial 6-Port Managed PoE Switch QUICK INSTALLATION GUIDE 2000528 Rev D | Release Date - January, 2014...
-
Page 2: Installation Overview
The RocketLinx 7506 is designed for industrial PoE applications where the power source is not conveniently located, such as IP surveillance or wireless access points. See the Comtrol website for complete product specifications. INSTALLATION OVERVIEW You can use the following overview to install the ES7506. If you need more... - Page 3 Insert the positive and negative wires into PW+ and PW- contacts (PW1 and PW2). You can connect a single power supply or two power supplies depending on your requirements. If both power inputs are connected, the ES7506 is powered from the highest connected voltage.
- Page 4 Grounding the E7506 Wire the earth ground to ensure the system is not damaged by noise or any electrical shock, we recommend that you make a direct connection between the ES7506 and earth ground. Using a screw driver, loosen the earth ground screw on the side of the ES7506 and then tighten the screw after the earth ground wire is connected.
- Page 5 Start PortVision DX. PortVision DX can be started from Start --> All Programs --> Comtrol --> PortVision DX. Click the Scan button. Select the Comtrol product families that you want to locate and click the Scan button. (cont. on page 5)
-
Page 6: Led Indicators
(cont. from page 4) Right-click the ES7506 in the Device List pane (lower) that you want to configure and click Properties. Enter a user-friendly Device Name. Optionally, enter the ES7506 serial number, which displays a friendly device name in the Device List pane on the main page. Select DHCP IP or Static IP for the IP Mode. -
Page 7: Feature Configuration
FEATURE CONFIGURATION The ES7506 provides both in-band and out-band configuration methods: Out-band management means that you configure the ES7506 using the RS-232 console cable and the Command Line Interface (CLI) to access the ES7506 without attaching an admin PC to the network. You can also use out-band management, if you lost the network connection to the ES7506. - Page 8 COMTROL CUSTOMER SERVICE You can use one of the following methods to contact Comtrol. Contact Method Web Address or Phone Number Support http://www.comtrol.com/support Downloads ftp://ftp.comtrol.com/html/ES7506_main.htm Website http://www.comtrol.com Phone +1 763.957.6000...
