Matrix CONNEXUS Series Assembly Instructions Manual page 7

Z13
Z05x2
Z27x2
Z11
Z13
Z05x2
Z27x2
Z11
Free Standing

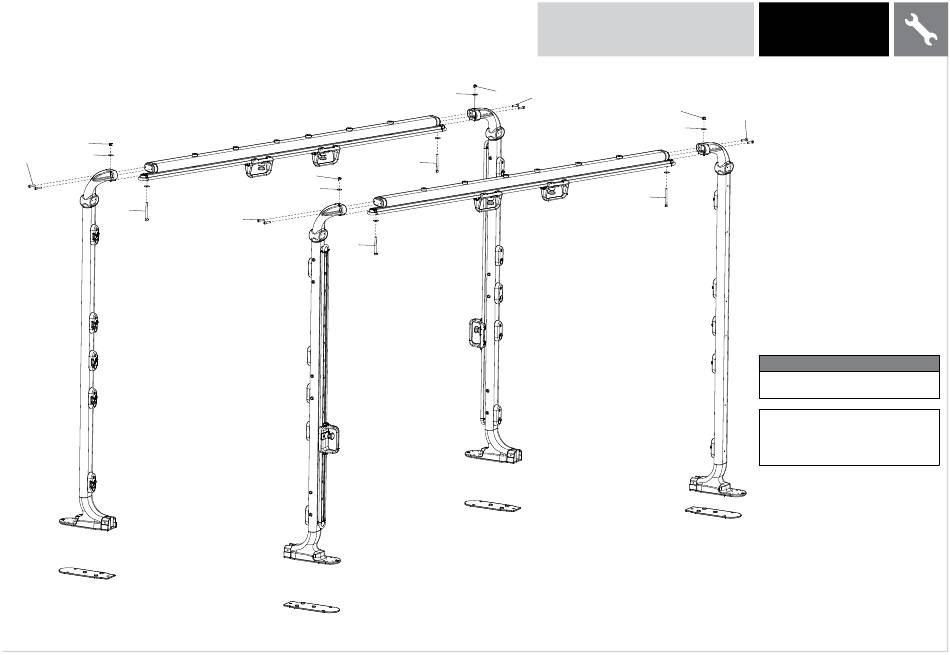

Step 1 of 3
Z13
Z05x2
Z27x2
Z11
GFTFS
Z13
Z27x2
Z05x2
Z11
NOTE:
Assemble laying down for step 1
Do not completely tighten hardware until final step
Item Description
Z05 Flat Washer (Φ10)
Z11 Screw (M10x110L)
Z27 Screw (M10x40L)
Z13 Nut (M10)
Qty
8
4
8
4
