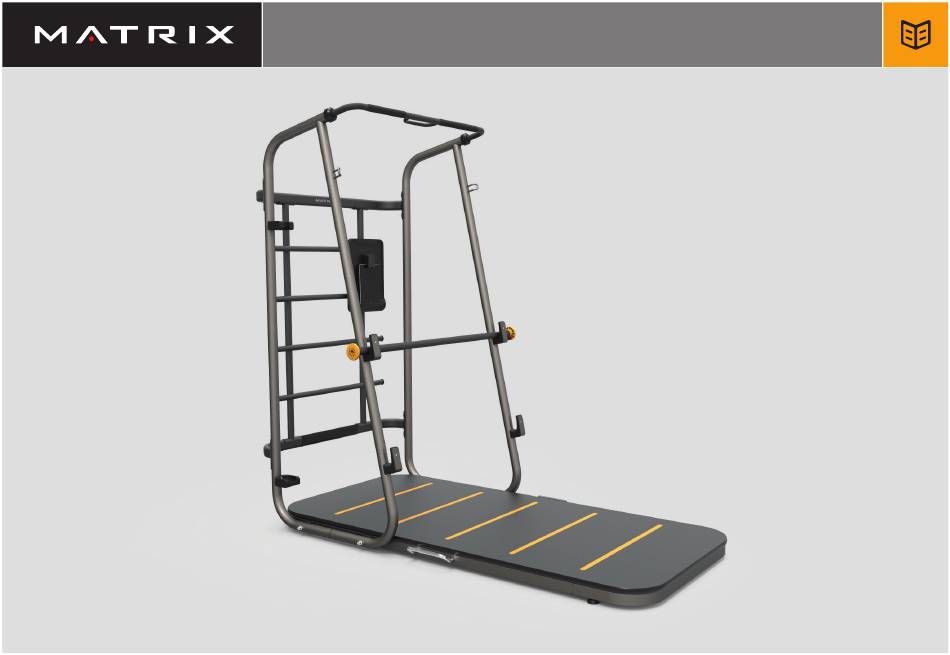

- Page 1 CONNEXUS HOME CXR50...
-
Page 3: Before You Begin
1 square foot BEFORE YOU BEGIN front The Connexus Home CXR50 is an innovative platform that provides solutions for functional training in the home. The CXR50 allows users to do suspension strap training, resistance band training and numerous body-weight exercises utilizing the platform and weighted training bar. TRAINING AREA 45 ×... -
Page 4: Serial Number Location
F 1 Hardware Kit MODEL NAME NEED HELP? MATRIX CONNEXUS HOME CXR50 If you have questions or if there are any missing parts, contact Customer Tech Support. Contact information is located on the information card. * Use the information above when calling for service. - Page 5 CONNECTION COVERS PULL-UP BAR LEFT FRAME UPRIGHT SUSPENSION ANCHOR (STRAPS NOT INCLUDED) UPPER CROSSBAR SUSPENSION STRAP HOOKS (NOT FOR TRAINING USE) TRAINING BAR STORAGE RESISTANCE BANDS SMART STORAGE CHALKBOARD MAGNETIC CHALKBOARD • MAGNETIC HOLDER • DEVICE TRAY (DEVICE NOT INCLUDED) TRAINING BAR •...
- Page 6 Hardware For Step 1 Hardware For Step 2 IMPORTANT: Do not tighten bolts until step 6 is complete. Description Description Bolt Bolt Lock Washer Lock Washer Flat Washer Torque Value Torque Value 50 Nm / 37 ft-lb 15 Nm / 11 ft-lb Tuck lifting straps under the base after flipping it over to avoid a tripping hazard.
- Page 7 Hardware For Step 3 Hardware For Step 4 IMPORTANT: Do not tighten IMPORTANT: Do not tighten bolts until step 6 is complete. bolts until step 6 is complete. Description Description Bolt Bolt Lock Washer Torque Value Flat Washer 15 Nm / 11 ft-lb Torque Value 15 Nm / 11 ft-lb...
- Page 8 Hardware For Step 5 Hardware For Step 6 IMPORTANT: Do not tighten Tighten all bolts from steps 1–6. Tighten bolts until step 6 is complete. to torque values listed in each step. Description Description Bolt Bolt Lock Washer Lock Washer Flat Washer Flat Washer Torque Value...
- Page 9 ASSEMBLY COMPLETE!
- Page 12 © 2018 Johnson Health Tech CXR50 Rev 1.0 ENGLISH...
