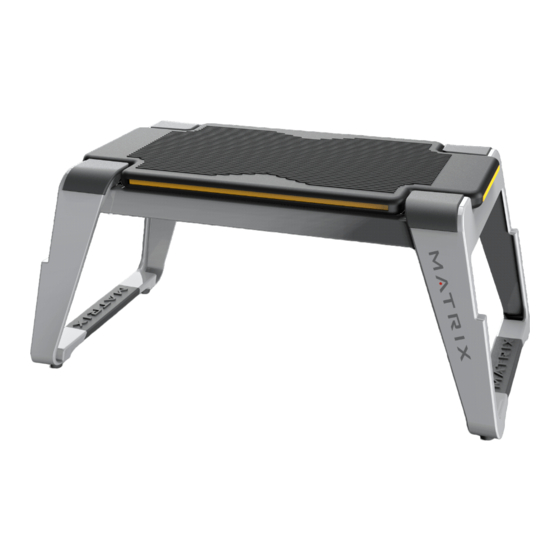

Matrix CONNEXUS STEP+ Quick Start Manual

Tools Included
1
4mm Allen Wrench
Hardware
Description Qty
Bolt 8
Flat Washer 8
© 2018 Johnson Health Tech. All Rights Reserved.
CO NN E XUS STEP+
GFTSS
PROPER USAGE
1. Do not exceed the weight limits of the
exercise device.
2. Make certain the top is secure before
stepping on the equipment to perform
step ups, lunges, toe taps, body weight
squats, etc.
3. Do not used when stacked.
4. Do not jump onto the instability device.
5. Top can be removed and placed on
floor with the curved surface down to
challenge balance and improve core
stability. Use care when stepping on and
off the balance board. Center body weight
on the board to balance safely.
6. Legs can be flipped upside down and
the hand grips can be used as a strength
platform to perform pushups, triceps dips
or mountain climbers.
2
MAINTENANCE CHECKLIST
ACTION FREQUENCY
Clean Top * Daily
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Frame * As Needed
Clean Grips * As Needed
* Top, grips and frame should be cleaned with a mild soap and water or a
non-ammonia based cleaner.
PRODUCT SPECIFICATIONS
TECH SPECS
Maximum User Weight 136 kg / 300 lbs
Maximum Training Weight 22.6 kg / 50 lbs
Product Weight 8.7 kg / 19.2 lbs
Overall Dimensions 70.5 x 38.1 x 33 cm /
(L x W x H)* 27.8 x 15 x 12.9"
* Ensure a minimum clearance width of 0.6 meters (24") for access to and
passage around MATRIX strength equipment. Please note, 0.91 meters (36")
is the ADA recommended clearance width for individuals in wheelchairs.
WARRANTY
For North America, please visit www.matrixfitness.com
for warranty information along with warranty exclusions
and limitations.
ENGLISH
Rev 1.0 A
Part # XXXXXXXXXX
