  • Page 2: Important Precautions

    IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using Matrix exercise equipment, basic precautions should always be followed, including the following: Read all instructions before using this equipment. It is the responsibility of the owner to ensure that all users of this replacement parts supplied by Customer Technical Support or an authorized dealer.
  • Page 3 F 1 Hardware Kit NEED HELP? If you have questions or if there are any missing parts, contact Customer Tech Support. SERIAL NUMBER MODEL MATRIX TARGET TRAINING CYCLE MATRIX TARGET TRAINING CYCLE * Use the information above when calling for service.

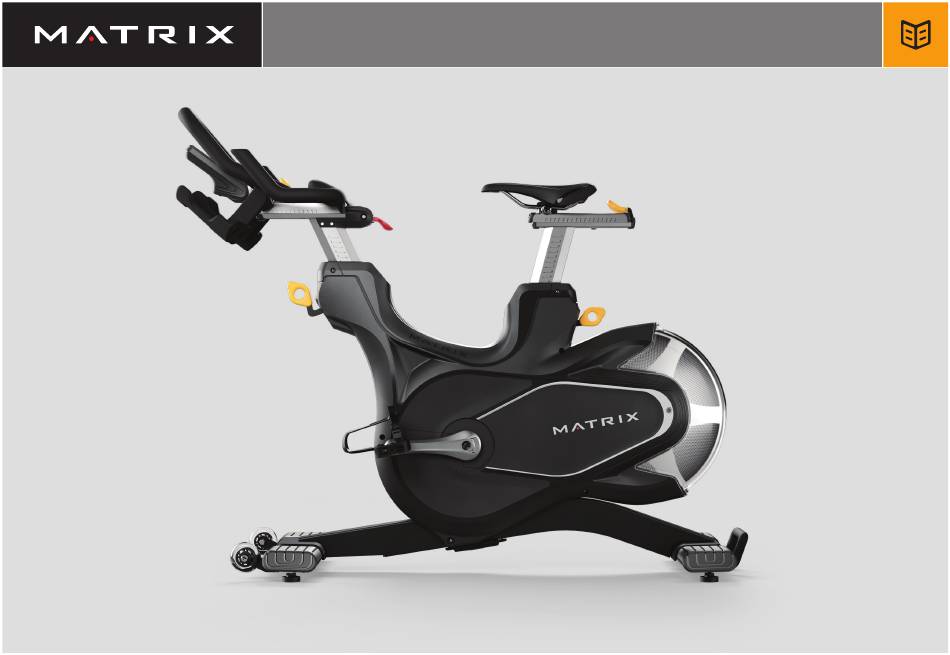

  • Page 4 ENGLISH ASSEMBLY HANDLEBARS TENSION CONTROL & EMERGENCY BRAKE LEVER DEVICE HOLDER SADDLE (CXM has console) HORIZONTAL SADDLE WATER BOTTLE HOLDER ADJUSTMENT LEVER HORIZONTAL HANDLEBAR SADDLE HEIGHT ADJUSTMENT LEVER ADJUSTMENT LEVER HANDLEBAR HEIGHT MAIN FRAME ADJUSTMENT LEVER SERVICE PANEL CRANK FLYWHEEL PEDALS TRANSPORT HANDLE TRANSPORT WHEELS...
  • Page 5 ENGLISH ASSEMBLY Hardware Screw (M6x50L) Hardware Torque Value Bolt (M12x25L) G - 10 Nm / 7.4 ft-lb Flat Washer LEFT PEDAL Torque Value 40 Nm / 29.5 ft-lb 78 Nm / 58 ft-lb. ASSEMBLY COMPLETE Hardware Hardware Stopper Screw (M4x10L) Screw (M8x20L) Screw (M4x6L) Slide handlebars onto frame...

  • Page 6: Console Operation

    ENGLISH CONSOLE OPERATION CXM CONSOLE INFORMATION Console turns on when pedals are moved. Press to change the large metric at the top from RPMs to Watts, to HR, to a lap feature. LAP/INTERVAL - when on the lap screen, press to start the first BACK-LIT LCD interval.
  • Page 7 ENGLISH CONSOLE OPERATION POWER ACCURACY USING THE HEART RATE FUNCTION This bike displays power on the console. The power accuracy of this model has been The heart rate function on this product is not a medical device. The heart rate reading tested using the test method of ISO 20957-10:2017 to ensure a power accuracy within a is intended only as an exercise aid in determining heart rate trends in general.

  • Page 8: Before You Begin

    ENGLISH BEFORE YOU BEGIN LOCATION OF THE UNIT TRAINING AREA FREE AREA Place the equipment on a level and stable surface away from direct sunlight. The intense UV light can cause discoloration on the plastics. Locate your equipment in an area with cool temperatures and low humidity. Please leave a clear zone on all sides of the equipment that is at least 60 cm (23.6”).
  • Page 9 ENGLISH BEFORE YOU BEGIN HOW TO ADJUST THE INDOOR CYCLE The indoor cycle can be adjusted for maximum comfort and exercise effectiveness. The instructions below describe one approach to adjusting the indoor cycle to ensure optimal user comfort and ideal body positioning;...
  • Page 10 ENGLISH BEFORE YOU BEGIN RESISTANCE CONTROL / EMERGENCY BRAKE The preferred level of difficulty in pedaling (resistance) can be regulated in fine increments by use of the tension control lever. To increase the resistance, push the tension control lever towards the ground. To decrease the resistance, pull up the lever upwards.

  • Page 11: Maintenance

    5. Ensure that any person(s) making adjustments or performing maintenance or and ammonia free). WEEKLY repair of any kind is qualified to do so. MATRIX dealers will provide service Clean all exterior parts, the steel frame, front and rear and maintenance training at our corporate facility upon request.

  • Page 12: Product Information

    49.4 x 22.2 x 40.5” 49.4 x 22.2 x 40.5” * Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs.
  • Page 13 © 2021 Johnson Health Tech Rev 2.2 A...
