SPC560D-DIS discovery board with SPC560D40L1

1.1

SPC560D-DIS discovery board

The SPC560D-DIS discovery board is an evaluation tool supporting STMicroelectronics
SPC56 D line microcontrollers. The evaluation board allows full access to all CPUs I/O
signals and to peripherals.
The SPC56 D line is STMicroelectronics state of the art MCU based on 32-bit
microcotrollers Power Architecture
Applications but as well suitable for industrial safety oriented applications. Such line is
optimized for Body applications as Body Control Modules, Door Modules, Seat controls,
HVAC, Comfort Modules, Security Access and they are suitable for ASIL B/SIL
requirements.
SPC560D-DIS discovery board is supported by a specific application project inside
SPC5Studio (a visual integrated software development environment to easily develop
software for SPC56 MCU's), that embeds micro start-up routines, I/O mapping and a simple
test codes SPC5Studio is available for download www.st.com/spc5studio.
The PCB, the components and all HW parts meet requirements of the applicable RoHS
directives.

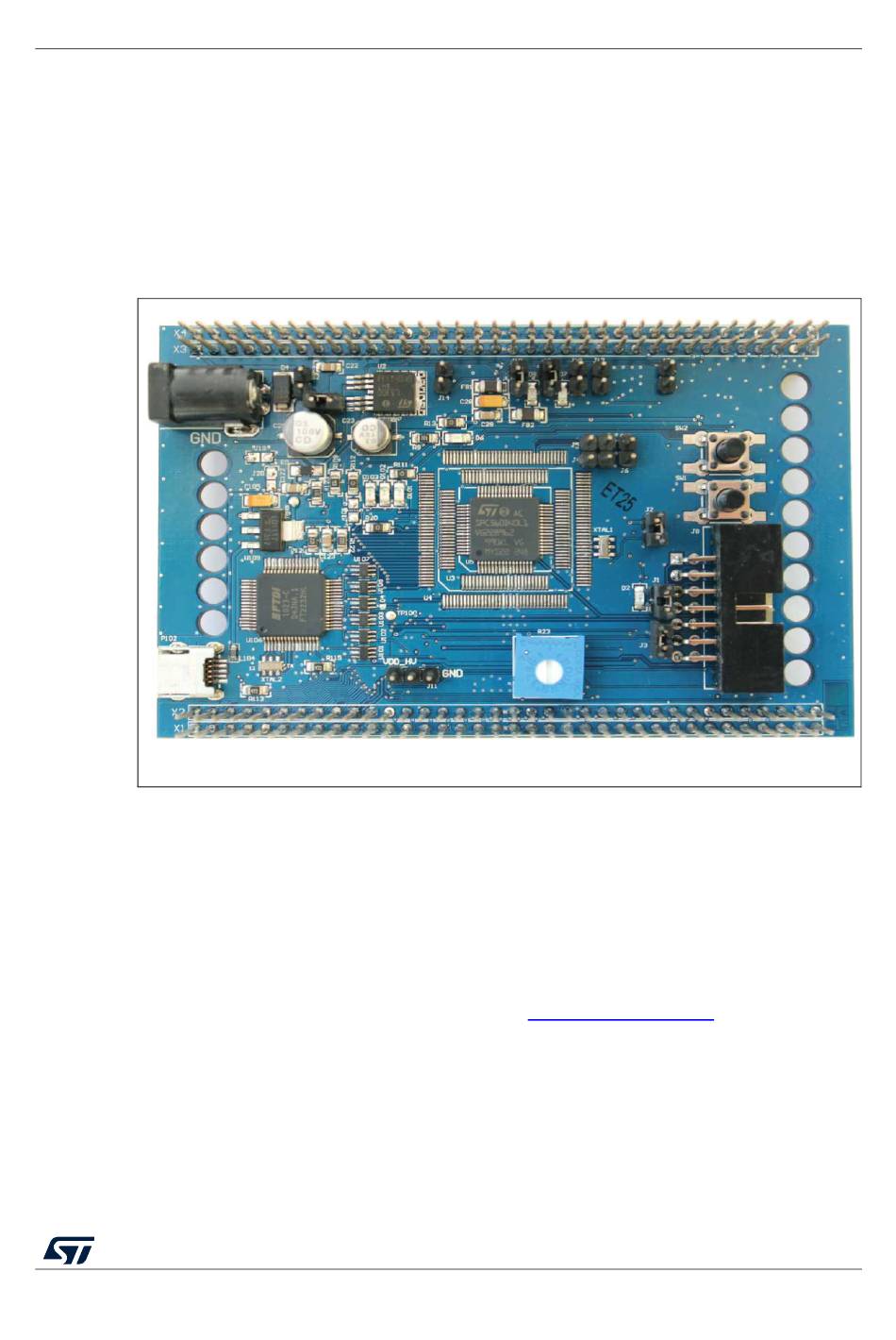

Figure 1. SPC560D-DIS discovery board with SPC560D40L1

®
