AN4424
Application note
Getting started with SPC564A-DISP discovery board
Introduction
The SPC564A-DISP is an evaluation tool supporting STMicroelectronics SPC56 M Line
microcontrollers.
The discovery board SPC564A-DISP is based on SPC564A70L7 32-bit 150 MHz e200z4
®
Power Architecture
core, 2Mbyte on-chip in an LQFP176 package.The numerous
interfaces including CAN/SCI/K-LINE/DSPI/GPIO make the SPC56M-DISP an excellent
starter kit for customer quick evaluation and project development.

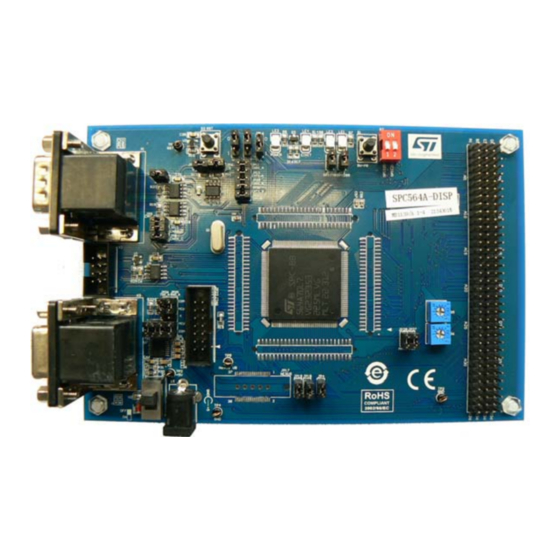

Figure 1. SPC564A-DISP Discovery Plus board with SPC564A70L7
The SPC56 M family is designed to address cost sensitive powertrain and transmission
applications.
The SPC56 M line key functionality is Time processing units (eTPU) a coprocessor to create
events in sync with internal or external signals without flooding the CPU with interrupt to
serve.
SPC5Studio is available for download www.st.com/spc5studio.
SPC5Studio comes with HighTec GNU "C" compiler free fully featured 30-day trial version.
An E2E Community is available on ST WEB:
https://my.st.com/public/STe2ecommunities/mcu.
The PCB, all components and all HW parts meet requirements of the applicable RoHS
directives.
August 2017
DocID025693 Rev 2
1/7
www.st.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST SPC564A-DISP
Summary of Contents for ST SPC564A-DISP
- Page 1 Getting started with SPC564A-DISP discovery board Introduction The SPC564A-DISP is an evaluation tool supporting STMicroelectronics SPC56 M Line microcontrollers. The discovery board SPC564A-DISP is based on SPC564A70L7 32-bit 150 MHz e200z4 ® Power Architecture core, 2Mbyte on-chip in an LQFP176 package.The numerous interfaces including CAN/SCI/K-LINE/DSPI/GPIO make the SPC56M-DISP an excellent starter kit for customer quick evaluation and project development.
- Page 2 Setting up Hardware and Connections ......3 How to connect SPC564A-DISP to a programmer/debugger ..4 How to connect an adapter to the JTAG connector .
- Page 3 Getting started Delivery Checklist The SPC56A-Discovery kit contains the following items: #1 SPC564A-DISP evaluation board. 1 Power supply (Output 5V , the center pin is positive). The jumpers allow configuring the board to enable features and different flash modalities.
- Page 4 How to connect SPC564A-DISP to a programmer/debugger AN4424 How to connect SPC564A-DISP to a programmer/debugger The following procedure describes how to connect and flash the microcontroller to a programmer/debugger. How to connect an adapter to the JTAG connector The following procedure describes how to connect to, flash and debug the microcontroller using the JTAG.
- Page 5 AN4424 General handling precautions Appendix A General handling precautions The following precautions are recommended when using the SPC564A-DISP board: Do not modify or manipulate the board when the DC supply is connected to the board. Any equipment or tool used for any manipulation of the semiconductor devices or board modification should be shielded and connected to ground.
- Page 6 Revision history AN4424 Revision history Table 1. Revision history Date Revision Changes 12-Dec-2013 Initial release. Delete section 2.2 How to develop, program and 08-Aug-2017 compile a project using SPC5studio and Appendix B Reference document. DocID025693 Rev 2...
- Page 7 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
