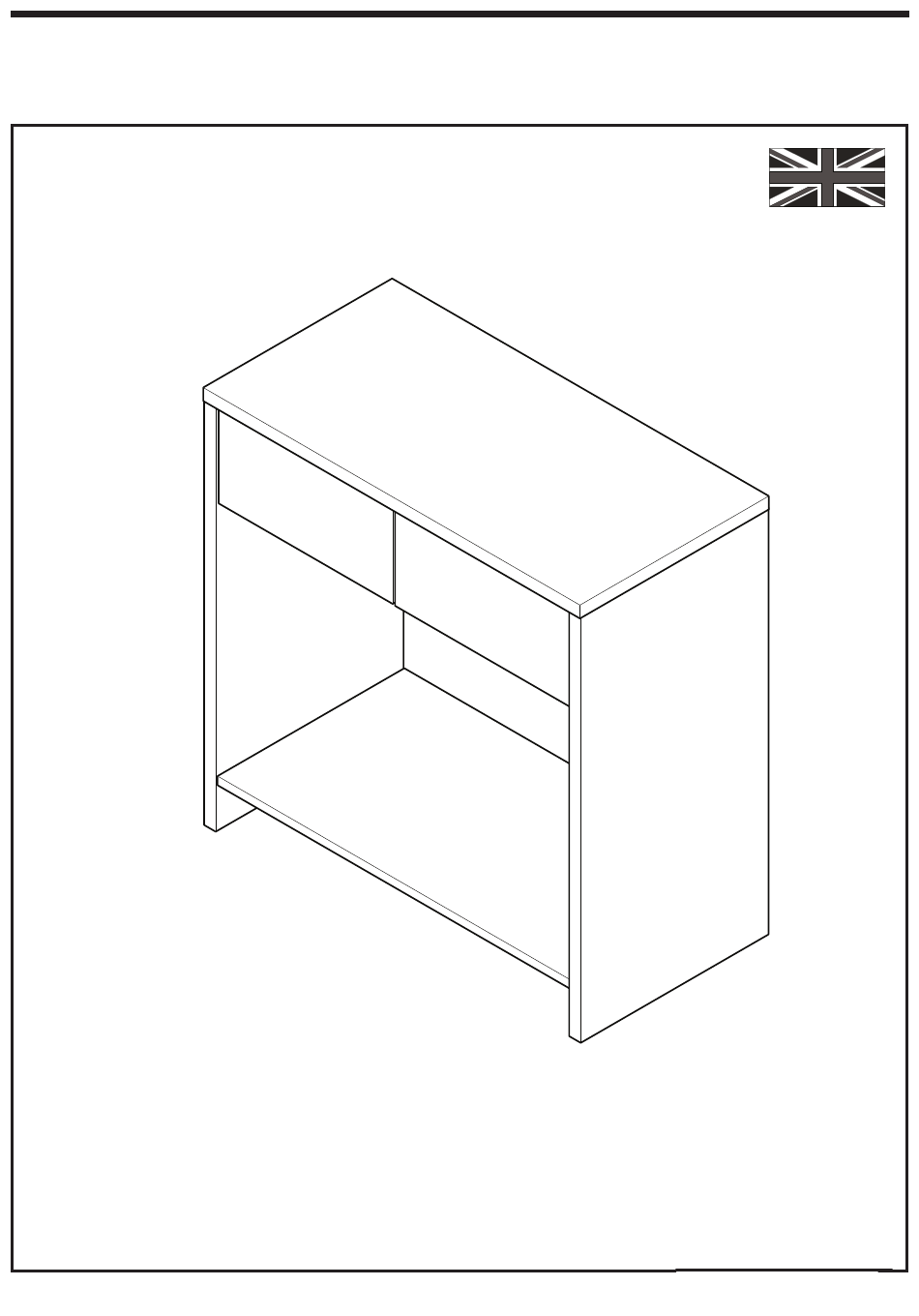

- Page 1 2 Drawer Console Table Assembly instructions Product size: H722 x W714 x D358 MADE IN GREAT BRITAIN Product Code : 054xx8547...
-
Page 2: Before You Start
2 Drawer Console Table Assembly Instructions Before you start Warnings Number of people required to assemble Important: Retain these instructions for future reference. One person to assemble the unit and two people to lift the unit into position. Unwrap all packaging materials and place the components... - Page 3 2 Drawer Console Table Assembly Instructions If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534 123 (by contacting the customer service line your statutory rights are not affected) Please have the following information to hand: >>...
-
Page 4: Getting To Know Your Product
2 Drawer Console Table Assembly Instructions Getting to know your product... - Page 5 2 Drawer Console Table Assembly Instructions Components supplied (not actual size) Fixtures and ttings supplied (actual size) Ref Dimensions Visual Dimensions(mm) Visual 15.0 x 12 714 x 358 x 22 (760 00 1103) (0740) 5.0 x 35 (760 00 3004) 12.0 x 11...
- Page 6 2 Drawer Console Table Assembly Instructions Insert the cam lock into the face of the panel in the Your furniture is assembled using a cam lock and dowel positions shown. system. This system combines a quick and easy Ensure that the cam arrow points towards the edge assembly with strength and a clean nish.
- Page 7 2 Drawer Console Table Assembly Instructions You will need to repeat this step on both sides of the drawer section. REPEAT ON REMAINING DRAWER R2 x2 L2 x2 Fx12 Pozi (large) 3.5 x 12 & not supplied B x6 5.0 x 35...
- Page 8 2 Drawer Console Table Assembly Instructions A x14 15.0 x 12 Ensure you attach the runners into the correct holes, as shown on the illustration below. Once you have attached the front of the runner, align the runner and attach the back of the runner with another E screw into the corresponding hole.
- Page 9 2 Drawer Console Table Assembly Instructions Ensure you attach the runners into the correct holes, as shown on the illustration below. Once you have attached the front of the runner, align the runner and attach the back of the runner with another E screw into the corresponding hole.
- Page 10 2 Drawer Console Table Assembly Instructions 2. 2. E x2 L1 x1 5.5 x 8 3.5 x 12 Pozi (large) not supplied 14 13 Now turn divider panel over. R1 x1 5.5 x 8 3.5 x 12 Pozi (large) not supplied...
- Page 11 2 Drawer Console Table Assembly Instructions Pozi (large) not supplied 14 15 Pozi (large) not supplied...
- Page 12 2 Drawer Console Table Assembly Instructions Pozi (large) not supplied 14 18 Lay the unit on its front Attach the top (1) to the end panels rst and secure the cams. Pozi (large) not supplied...
- Page 13 2 Drawer Console Table Assembly Instructions Stand the unit on its top Insert screw D into the rail (7) and screw into the divider panel (5). Use the groove in the divider panel (5) as a guide for your screw.
- Page 14 2 Drawer Console Table Assembly Instructions REV. A WARNING IN ORDER TO PREVENT OVERTURNING THIS PRODUCT MUST BE USED WITH THE WALL ATTACHMENT DEVICE PROVIDED Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent topple over: Use the wall attachment device provided.
