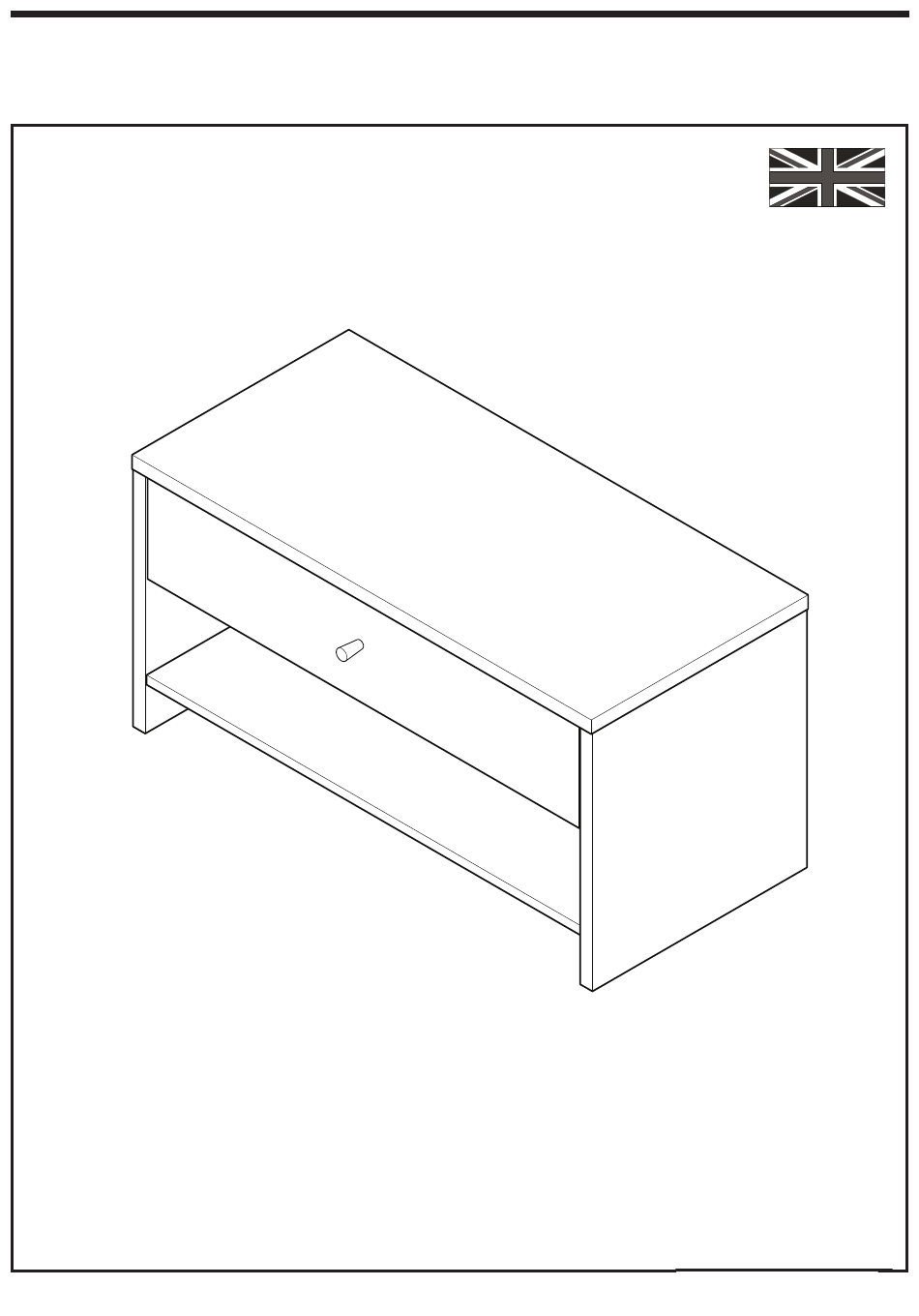

- Page 1 1 Drawer Occasional Table Assembly instructions Product size: H415 x W810 x D388 MADE IN GREAT BRITAIN Product Code : 051xx 9421...
-
Page 2: Before You Start
1 Drawer Occasional Table Assembly Instructions Before you start Warnings Number of people required to assemble Important: Retain these instructions for future reference. One person to assemble the unit and two people to lift the unit into position. Unwrap all packaging materials and place the components... - Page 3 1 Drawer Occasional Table Assembly Instructions If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534 123 (by contacting the customer service line your statutory rights are not affected) Please have the following information to hand: 8am - 4.30pm (Monday to Thursday)
-
Page 4: Getting To Know Your Product
1 Drawer Occasional Table Assembly Instructions Getting to know your product Drawers x 1... - Page 5 1 Drawer Occasional Table Assembly Instructions Components supplied (not actual size) Fixtures and ttings supplied (actual size) Ref Dimensions Visual Dimensions(mm) Visual 15.0 x 12 810 x 388 x 22 (760 00 1103) (1246) 5.0 x 35 (760 00 3004) 12.0 x 11...
- Page 6 1 Drawer Occasional Table Assembly Instructions Insert the cam lock into the face of the panel in the Your furniture is assembled using a cam lock and dowel positions shown. system. This system combines a quick and easy Ensure that the cam arrow points towards the edge assembly with strength and a clean nish.
- Page 7 1 Drawer Occasional Table Assembly Instructions You will need to repeat this step on both sides of the drawer section. Loosen screw in tting H. Now secure using the screw Push tting H into the groove in in tting H DO NOT OVERTIGHTEN drawer section back.
- Page 8 1 Drawer Occasional Table Assembly Instructions A x12 15.0 x 12 Ensure you attach the runners into the correct holes, as shown on the illustration below. Once you have attached the front of the runner, align the runner and attach the back of the runner with another E screw into the corresponding hole.
- Page 9 1 Drawer Occasional Table Assembly Instructions Ensure you attach the runners into the correct holes, as shown on the illustration below. Once you have attached the front of the runner, align the runner and attach the back of the runner with another E screw into the corresponding hole.
- Page 10 1 Drawer Occasional Table Assembly Instructions A 2nd person will be required to hold the plinth (6) until the other end panel is attached. Back rail (5) may have a gloss nish and may require a protective lm to be removed.
- Page 11 1 Drawer Occasional Table Assembly Instructions REV. A Pozi (large) not supplied 14 16 Turn the unit upright. Tilt the assembled drawer as shown to attach the drawer to the already located runners.
- Page 12 1 Drawer Occasional Table Assembly Instructions Notes...
