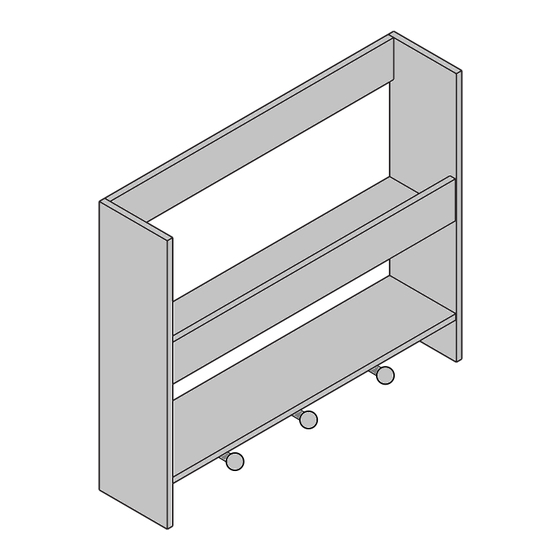

Wall Mounted Shelf with 3 Hooks
- please keep for future reference
211.96.105M
Dimensions
Width - 65cm
Depth - 15cm
Height - 55cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline:
0121 776 5720
Issue 1 - 19/11/18
Advertisement
Table of Contents
Related Manuals for JD Williams 211.96.105M
Summary of Contents for JD Williams 211.96.105M
- Page 1 Wall Mounted Shelf with 3 Hooks Assembly Instructions - please keep for future reference 211.96.105M Dimensions Width - 65cm Depth - 15cm Height - 55cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce or put weight on the product, the likelihood of components and tools listed on the following pages.
- Page 3 Components - Panels Please check you have all the panels listed below Top Plinth x 1 Lower Plinth x 1 Shelf Plinth x 1 Left Side Panel x 1 Right Side Panel x 1 Upper Shelfx 1 Lower Shelf x 1 Upper Back Panel x 1 Lower Back Panel x 1...
- Page 4 Components - Fittings Note: may be supplied than are required. Screw x 19 Screw x 16 Dowel x 6 Hooks x 3 Wall Fixing pack x 2 Tools required Phillips screwdriver (medium & large) 7mm Suitable drill bit Drill (for use with wall plug) Ruler - Use this ruler to help correctly identify the screws 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170...
- Page 5 Assembly Instructions Step 1 Inserting Dowels 1. Into Panels 1 insert a total of 6 x Dowels C as shown Step 2 Connecting Right Hand Panel 1. Locate Panels and 7 onto Right Side Panel 5 as shown. 2. Connect Panels using a total of 7 x Screws as shown...
- Page 6 Assembly Instructions Step 3 Connecting Left Hand Panel 1. Locate Panels and 7 onto Left Side Panel 5 as shown. 2. Connect Panels using a total of 7 x Screws as shown Step 4 Connecting Back Panels 1. On the reverse of the unit fit Back Panels 8 and 9 as shown using...
- Page 7 Assembly Instructions Step 5 1. To mount the unit to the wall 2 x holes will need to be drilled. Note: Please refer to the wall mounting guide at the back of this instruction for further details. 2. With the aid of someone, lift the unit into the desired position and mark the with a suitable scribe.
