Summary of Contents for JD Williams 2 Drawer Entertainment Center

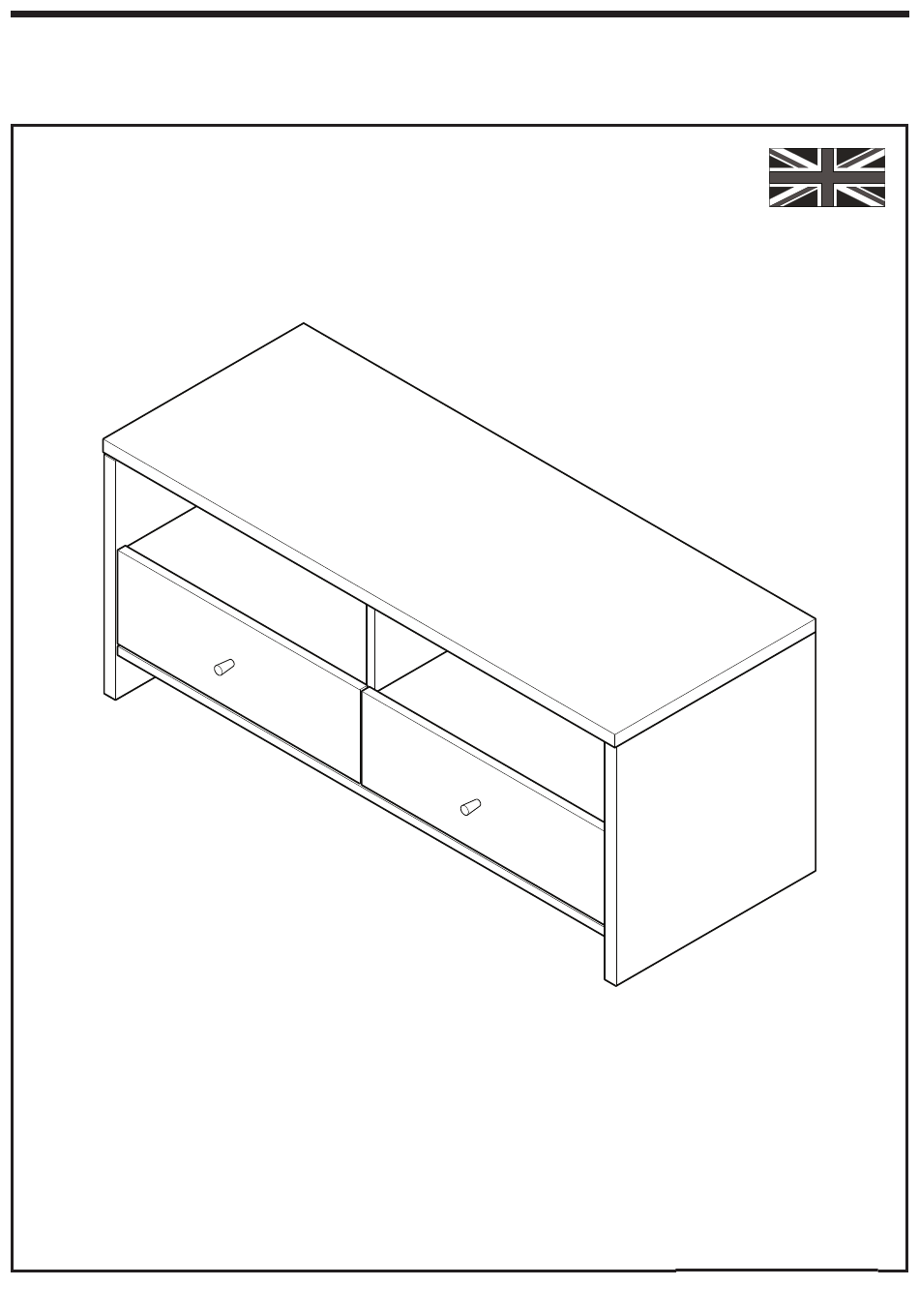

- Page 1 2 Drawer Entertainment Center Assembly instructions Product size: H415 x W978 x D388 MADE IN GREAT BRITAIN Product Code : 033xx9422...
-
Page 2: Before You Start
2 Drawer Entertainment Center Assembly Instructions Before you start Warnings Number of people required to assemble Important: Retain these instructions for future reference. One person to assemble the unit and two people to lift the unit into position. Unwrap all packaging materials and place the components... - Page 3 2 Drawer Entertainment Center Assembly Instructions If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534 123 (by contacting the customer service line your statutory rights are not affected) Please have the following information to hand: >>...
-
Page 4: Getting To Know Your Product
2 Drawer Entertainment Center Assembly Instructions Getting to know your product... - Page 5 2 Drawer Entertainment Center Assembly Instructions Components supplied (not actual size) Fixtures and ttings supplied (actual size) Ref Dimensions Visual Dimensions(mm) Visual 15.0 x 12 978 x 388 x 15 (760 00 1103) (1249) 5.0 x 35 (760 00 3004) 12.0 x 11...
- Page 6 2 Drawer Entertainment Center Assembly Instructions Insert the cam lock into the face of the panel in the Your furniture is assembled using a cam lock and dowel positions shown. system. This system combines a quick and easy Ensure that the cam arrow points towards the edge assembly with strength and a clean nish.
- Page 7 2 Drawer Entertainment Center Assembly Instructions You will need to repeat this step on both sides of the drawer section. REPEAT ON REMAINING DRAWER R2 x2 L2 x2 Fx12 Pozi (large) 3.5 x 12 & not supplied B x6 5.0 x 35...
- Page 8 2 Drawer Entertainment Center Assembly Instructions 7 x 2 A x16 15.0 x 12 Ensure you attach the runners into the correct holes, as shown on the illustration below. Once you have attached the front of the runner, align the runner and attach the back of the runner with another E screw into the corresponding hole.
- Page 9 2 Drawer Entertainment Center Assembly Instructions Ensure you attach the runners into the correct holes, as shown on the illustration below. Once you have attached the front of the runner, align the runner and attach the back of the runner with another E screw into the corresponding hole.
- Page 10 2 Drawer Entertainment Center Assembly Instructions E x2 R1 x1 5.5 x 8 3.5 x 12 Pozi (large) not supplied 14 13 Now turn divider panel over. B x2 L1 x1 5.0 x 35 5.5 x 8 3.5 x 12...
- Page 11 2 Drawer Entertainment Center Assembly Instructions Pozi (large) Pozi (large) not supplied not supplied 14 16 Pozi (large) not supplied...
- Page 12 2 Drawer Entertainment Center Assembly Instructions D x2 Pozi (large) 3.5 x 45 not supplied 14 18 A 2nd person will be required to hold the plinth (6) until the end panel is attached. Pozi (large) not supplied...
- Page 13 2 Drawer Entertainment Center Assembly Instructions Pozi (large) not supplied 14 20 Before securing the back it is necessary to square up the unit. You can do this by measuring between XX-XX and YY-YY ensuring these are the same (DIAG 1). If they not (DIAG 2). Apply slight pressure as indicated (DIAG 3) until they are the same.
- Page 14 2 Drawer Entertainment Center Assembly Instructions REV. A Turn the unit upright. Tilt the assembled drawer as shown to attach the drawer to the already located runners. Congratulations! Your unit is complete.
- Page 15 2 Drawer Entertainment Center Assembly Instructions Notes...
- Page 16 2 Drawer Entertainment Center Assembly Instructions Notes...
