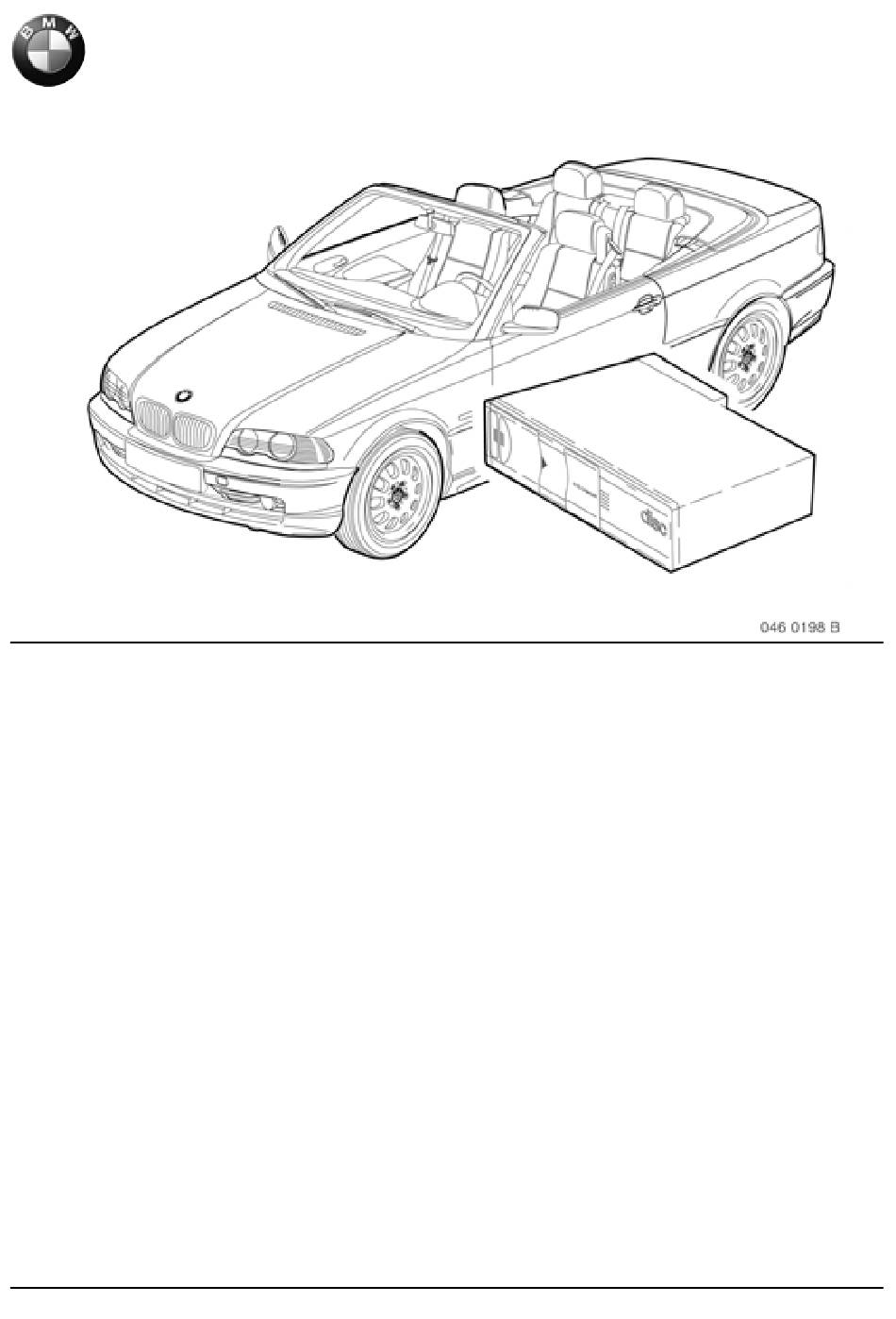

Parts and Accessories
Installation Instructions
BMW CD changer installation kit
BMW 3 Series Convertible (E 46/C)
Technical and electrical knowledge required
The installation time is 0.5 -2.0 hours but this may vary depending on the condition of the car
and the equipment in it.
Retrofit / Installation kit No.
Retrofit / Installation kit No. 65 12 137 916 (others see cover sheet)
Installation Instructions No. 01 29 137 925
65 12 0 137 916
65 12 0 137 917
Issue date: 10.2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65 12 0 137 916 and is the answer not in the manual?

Questions and answers

Related Manuals for BMW 65 12 0 137 916

Summary of Contents for BMW 65 12 0 137 916

  • Page 1 Parts and Accessories Installation Instructions BMW CD changer installation kit BMW 3 Series Convertible (E 46/C) Technical and electrical knowledge required The installation time is 0.5 -2.0 hours but this may vary depending on the condition of the car and the equipment in it.

  • Page 2: Table Of Contents

    Contents Section Page Important information on installing the CD changer in the E46/C....Preparations ............Parts list .

  • Page 3: Important Information On Installing The Cd Changer In The E46/C

    Important information on installing the CD changer in the E46/C Only for use in the BMW dealer organisation. The CD changer may only be installed by a specialist workshop that has the required special tools and manuals (servicing, repair, diagnostics, etc.).

  • Page 4: Preparations

    Preparations TIS instruction Print out error memory Disconnect the battery 12 00 ... Remove the left boot trim Remove the rear seat backrest (cars without a power supply cable 52 24 010 in the boot only) 52 24 005 Remove the rear seat bench (cars without a power supply cable in 52 24 005 the boot only) Remove the side trim at the rear left...

  • Page 5: Parts List

    Parts list 046 0199 B Power supply cable CD changer connection cable* CD changer connection cable** CD changer adapter cable*** 6-disk CD changer Retaining bracket (2x) Magazine for CD changer Philips screw with washer M4x6 (4x) Cable tie (15x) 2-way insulation-piercing connector* 5-way insulation-piercing connector* 10-pin black socket casing Socket casing (2x)**...
  • Page 6 Parts list The following parts are only required for cars without a CD changer holder in the boot. 046 0200 B CD changer holder Speed nut M5 (5x) Hexagonal screw M5x14 (5x) Oddments tray Oddments box Retrofit / Installation kit No. 65 12 137 916 (others see cover sheet) EN/6 Installation Instructions No.

  • Page 7: Connection Diagram For The Power Supply Cable A (For Cars With An On-Board Monitor Radio Only)

    Connection diagram for the power supply cable A (for cars with an on-board monitor radio only) This power supply cable A is only required for cars with an on-board monitor radio. 500mm 046 0201 B Power supply cable A is only required if the black 3-pin socket casing on the CD changer power supply is not tied back on the audio wiring harness on the left-hand side of the boot.

  • Page 8: Connection Diagram For The Power Supply Cable A (For Cars Without An On-Board Monitor Radio Only)

    Connection diagram for the power supply cable A (for cars without an on-board monitor radio only) This power supply cable A is only required for cars without an on-board monitor radio. F 46 0004 B Power supply cable A is only required if the black 3-pin socket casing on the CD changer power supply is not tied back on the audio wiring harness Cable Item...

  • Page 9: Connection Diagram For The Cd Changer B And C Connection Cable

    Connection diagram for the CD changer B and C connection cables 046 0202 B The CD changer connection cable B is only required on cars with an on-board monitor radio if the black 6-pin socket casing on the CD changer connection cable is not tied back on the audio wiring harness.
  • Page 10 Connection diagram for the CD changer B and C connection cables 046 0203 B The CD changer connection cable C is only required on cars without an on-board monitor radio if the black 6-pin socket casing on the CD changer connection cable is not tied back on the audio wiring harness.

  • Page 11: Connection Diagram For The Cd Changer D Adapter Cable (For Cars With An On-Board Monitor Radio From Production Date 9/01 Only)

    Connection diagram for the CD changer D adapter cable (for cars with an on-board monitor radio from production date 9/01 only) 046 0839 B Cable Item Description Connection location in the car colour CD changer connection cable Silver 10-pin plug casing To black 10-pin socket casing (8) with connected socket contacts B1, B2 and B3 of the CD changer/on-board monitor radio connection cable B...

  • Page 12: Installation And Cabling Diagram (For Cars With An On-Board Monitor Radio Only)

    Installation and cabling diagram (for cars with an on-board monitor radio only) B1-B3 046 0204 B Install the power supply cable A, the CD changer connection cable B and the CD changer adapter cable D as shown in the figure and secure them to the audio wiring harness with cable ties.

  • Page 13: Installation And Cabling Diagram (For Cars Without An On-Board Monitor Radio Only)

    Installation and cabling diagram (for cars without an on-board monitor radio only) C1-C3 046 205 B Install the power supply cable A and the CD changer connection cable C as shown in the figure and secure them to the audio wiring harness with cable ties. When installing the power supply cable A start with branches A1 and A2.

  • Page 14: To Install The Cd Changer Holder (Only Required For Cars Without A Cd Changer Holder In The Boot)

    10. To install the CD changer holder (only required for cars without a CD changer holder in the boot) Push five speed nuts (12) onto the mounting points on the body. 046 0206 B Secure the CD changer holder (11) with five hexagonal screws (13).

  • Page 15: To Install The Cd Changer

    To install the CD changer (for cars with an on-board monitor radio up to production date 9/01 only) The installation of the power supply cable A is only required if the black 3-pin socket casing X18180 on the power supply for the CD changer is not tied back near the CD changer installation location on the audio wiring harness.
  • Page 16 11. To install the CD changer (for cars with an on-board monitor radio up to production date 9/01 only) The figure shows the installation space in the left side wall in the passenger X13016 compartment. Connect branch A3, earth eyelet 6 mm, brown cable, on the power supply cable A to the earth post X13016.
  • Page 17 11. To install the CD changer (for cars with an on-board monitor radio up to production date 9/01 only) Connect the black 10-pin socket casing (8) on the CD changer connection cable B to the black 17-pin socket casing (20) and secure it with retaining clips (10).

  • Page 18: To Install The Cd Changer

    12. To install the CD changer (for cars with an on-board monitor radio from production date 9/01 only) The installation of the power supply cable A is only required if the black 3-pin socket casing X18180 on the power supply for the CD changer is not tied back near the CD changer installation location on the audio wiring harness.
  • Page 19 12. To install the CD changer (for cars with an on-board monitor radio from production date 9/01 only) The figure shows the installation space in the left side wall in the passenger X13016 compartment. Connect branch A3, earth eyelet 6 mm, brown cable, on the power supply cable A to the earth post X13016.
  • Page 20 12. To install the CD changer (for cars with an on-board monitor radio from production date 9/01 only) 046 0694 B Push the shrink hose (16) over the branch D1, silver 10-pin plug casing, of the CD changer adapter cable D and connect the black 10-pin socket casing (8) with connected socket contacts B1, B2 and B3 of the CD changer/on-board monitor radio connection cable B.
  • Page 21 12. To install the CD changer (for cars with an on-board monitor radio from production date 9/01 only) Remove the three transport guard screws (20) from the CD changer (1) and seal the apertures with the adhesive discs supplied (adhesive discs are supplied with the CD changer).

  • Page 22: To Install The Cd Changer (Cars Without An On-Board Monitor Only)

    13. To install the CD changer (cars without an on-board monitor only) The installation of the power supply cable A is only required if the black 3-pin socket casing X18180 on the connection cable for the CD changer is not tied back near the CD changer installation location on the audio wiring harness.
  • Page 23 13. To install the CD changer (cars without an on-board monitor only) The CD changer connection cable C only has to be installed if the black 6-pin socket casing X18729 on the CD changer connection cable is not tied back on the audio wiring harness near the CD changer installation location.
  • Page 24 13. To install the CD changer (cars without an on-board monitor only) Remove the three transport guard screws (20) from the CD changer (1) and seal the apertures with the adhesive discs supplied (adhesive discs are supplied with the CD changer). Remove the two covers (21) and set the adjustment mechanism (22) with a straight slot screwdriver to V (vertical installation) and then...

  • Page 25: Coding And Concluding Work

    14. Coding and concluding work Coding This system is not diagnostics-capable and does not need coding. Concluding work Connect battery Conduct a function test Reassemble the car by following the instructions for its dismantling in reverse order Print out error memory Retrofit / Installation kit No.

  • Page 26: Function

    15. Function The function of the CD changer is described in the radio owner’s manual. Retrofit / Installation kit No. 65 12 137 916 (others see cover sheet) EN/26 Installation Instructions No. 01 29 137 925 Issue date: 10.2001...

  • Page 27: Circuit Diagram (For Cars With An On-Board Monitor Radio Only)

    16. Circuit diagram (for cars with an on-board monitor radio only) X001* X002* X13016 0.5 WSRTGE 0.5 RTGN 0.5 BR X18180 I-BUS 30<56 046 0045 B Retrofit / Installation kit No. 65 12 137 916 (others see cover sheet) EN/27 Installation Instructions No.
  • Page 28 X18180 Black 3-pin plug connector CD changer The components and X designations marked with an asterisk (*) are only valid for this circuit diagram. All the other components and X designations correspond to BMW after-sales circuit diagrams Colour abbreviations = Blue = Brown...

  • Page 29: Circuit Diagram (For Cars Without An On-Board Monitor Radio Only)

    17 . Circuit diagram (for cars without an on-board monitor radio only) X001* X13016 X18126 X322 X002* 0.5 WSRTGE 4,0 RTGN 4,0 RTGN 0.5 WSRTGE 0.5 RTGN 0.5 BR X18180 I-BUS 30<56 046 0021 B Retrofit / Installation kit No. 65 12 137 916 (others see cover sheet) EN/29 Installation Instructions No.
  • Page 30 Black 3-pin plug connector CD changer The components and X designations marked with an asterisk (*) are only valid for this circuit diagram. All the other components and X designations correspond to BMW after-sales circuit diagrams Colour abbreviations = Blue = Brown...
