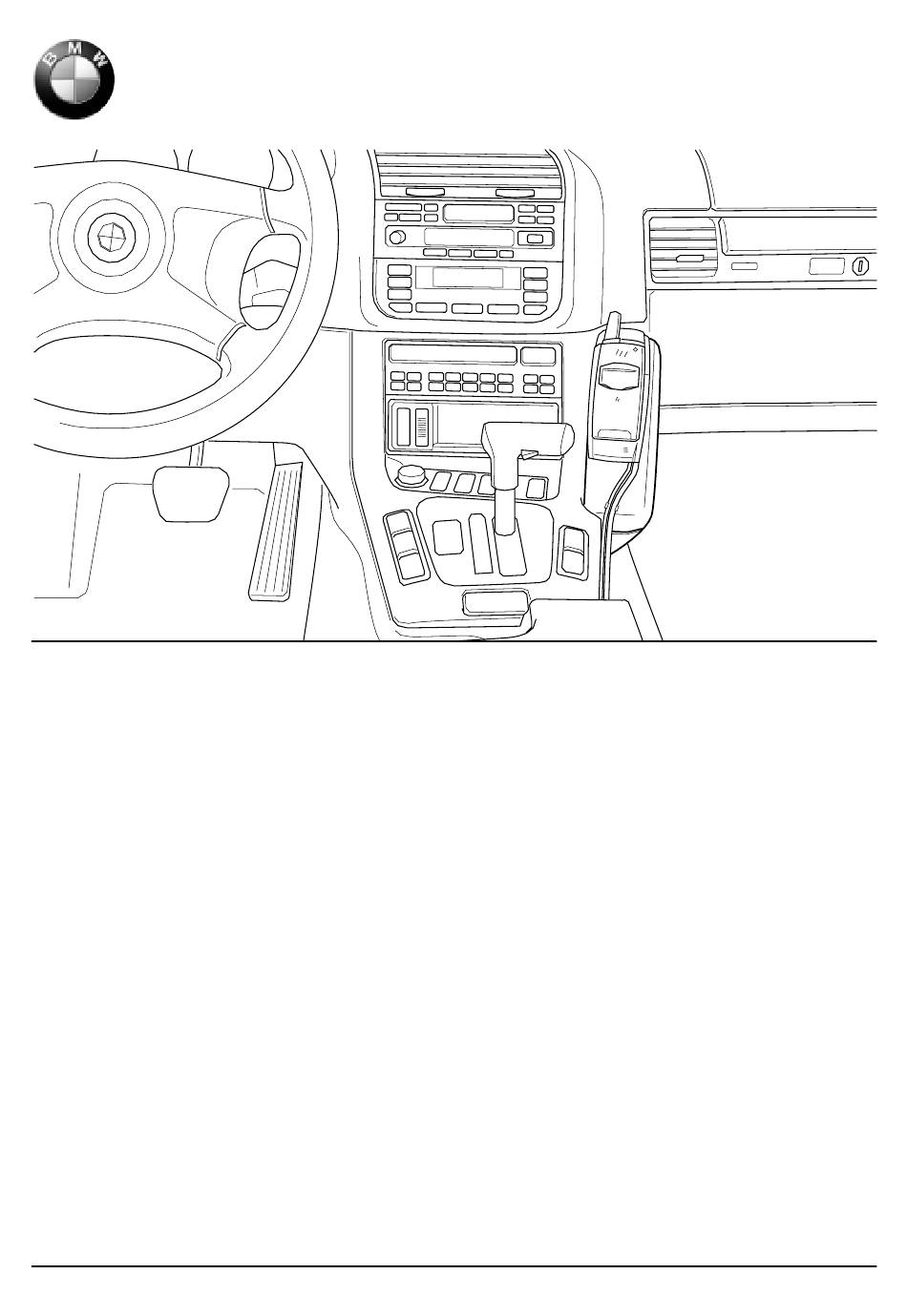

Ericsson hands-free facility retrofit kit, 3 series saloon e36/4 lhd, 3 series coupe e36/2 lhd, 3 series touring e36/3 lhd, 3 series convertible e36/c lhd, 3 series compact e36/5 lhd

Advertisement

Quick Links

Parts and Accessories
Installation Instructions
Ericsson hands-free facility retrofit kit
BMW 3 Series Saloon (E36/4) LHD
BMW 3 Series Coupé (E36/2) LHD
BMW 3 Series touring (E36/3) LHD
BMW 3 Series Convertible (E36/C) LHD
BMW 3 Series compact (E36/5) LHD
Specialist and electrical knowledge required.
Installation time approx. 3 hours, depending on the condition of the car and the equipment in
it.
Retrofit / Installation kit No. 84 64 0 025 816
Retrofit / Installation kit No. 84 64 0 026 649
Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649.....Issue date: 07 .2000
Installation instructions No. 01 29 0 025 885
F 36 0141 M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 84 64 0 025 816 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BMW 84 64 0 025 816

  • Page 1 Retrofit / Installation kit No. 84 64 0 025 816 Retrofit / Installation kit No. 84 64 0 026 649 Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649..Issue date: 07 .2000 Installation instructions No. 01 29 0 025 885...
  • Page 2: Table Of Contents

    12. To install the microphone (E36/5 only) ................37 13. Coding and concluding work ..................38 14. Circuit diagram ......................39 Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 Installation instructions No. 01 29 0 025 885...
  • Page 3: Important Information For The Installation Of The Ericsson Hands-Free Facility

    1/4-inch socket set Set of ring spanners Drill Set of drill bits Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/22 Installation instructions No. 01 29 0 025 885...
  • Page 4: Preparations

    65 81 020 Remove the oddments box in the centre console (E36/2/3/4/C only). Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/23 Installation instructions No. 01 29 0 025 885...
  • Page 5: Parts Overview

    3. Parts overview 21 22 E36/5 F 36 0140 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/24 Installation instructions No. 01 29 0 025 885...
  • Page 6 Telephone console (compact only – supplied with telephone console) Self-tapping screw ST4.2 x 16 (compact only – supplied with telephone console) FME connector for aerial connection Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/25...
  • Page 7: To Install The Telephone Console (E36/2/3/4/C Only)

    BMW telephone console on the centre console. F 36 0154 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/26 Installation instructions No. 01 29 0 025 885...
  • Page 8 ST2.9 x 9.5 (22). F 36 0155 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/27 Installation instructions No. 01 29 0 025 885...
  • Page 9: To Install The Telephone Console (E36/5 Only)

    ST4.2 x 16 (32). F 36 0158 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/28 Installation instructions No. 01 29 0 025 885...
  • Page 10: To Assemble The Control Module For The Hands-Free Facility

    16 (3), washers (4) and nuts M4 (5) and with the spacers (7) if necessary. F 36 0150 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/29 Installation instructions No. 01 29 0 025 885...
  • Page 11: Connection Overview

    The X designations marked with an asterisk (*) only apply for this overview and do not refer to the general after-sales service documents. Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/30 Installation instructions No.
  • Page 12 The X designations marked with an asterisk (*) only apply for this overview and do not refer to the general after-sales service documents. Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/31 Installation instructions No.
  • Page 13: Installation And Wiring Diagram

    Connect the wiring harness A to the basic wiring harness B and the control module (2) for the hands-free facility and tie them back. Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/32 Installation instructions No.
  • Page 14: To Install The Holder For The Mobile Phone

    Lay branch D1 to the installation location of the control module for the hands-free module in the footwell on the left. Lay branch D2 to the centre console near the gearshift or selector lever. Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/33...
  • Page 15: To Install And Connect The Wiring Harnesses And Switch Module

    Branch A2 is not required – tie it back on the wiring harness. F 36 0113 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/34 Installation instructions No. 01 29 0 025 885...
  • Page 16 Tie back surplus lengths of the cables and install the footwell trim. F 36 0149 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/35 Installation instructions No. 01 29 0 025 885...
  • Page 17: To Install The Microphone (E36/2/3/4/C Only)

    F 36 0125 M phone (10) and press the microphone (10) into position. Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/36 Installation instructions No. 01 29 0 025 885...
  • Page 18: To Install The Microphone (E36/5 Only)

    (10) and press the microphone (10) into the switch trim (d). F 36 0127 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/37 Installation instructions No. 01 29 0 025 885...
  • Page 19: Coding And Concluding Work

    Assemble the car again following the instructions to dismantle it in reverse order. Print out the error memory. Conduct a function test. Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/38...
  • Page 20: Circuit Diagram

    0,35 GE/SW 0,35 SW 0,5 BR X11* X10* F 36 0174 M Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/39 Installation instructions No. 01 29 0 025 885...
  • Page 21 GR = Grey OR = Orange RD = Black Violet WT = White Retrofit / Installation kit No. 84 64 0 025 816, 84 64 0 026 649 Issue date: 07 .2000 EN/40 Installation instructions No. 01 29 0 025 885...
