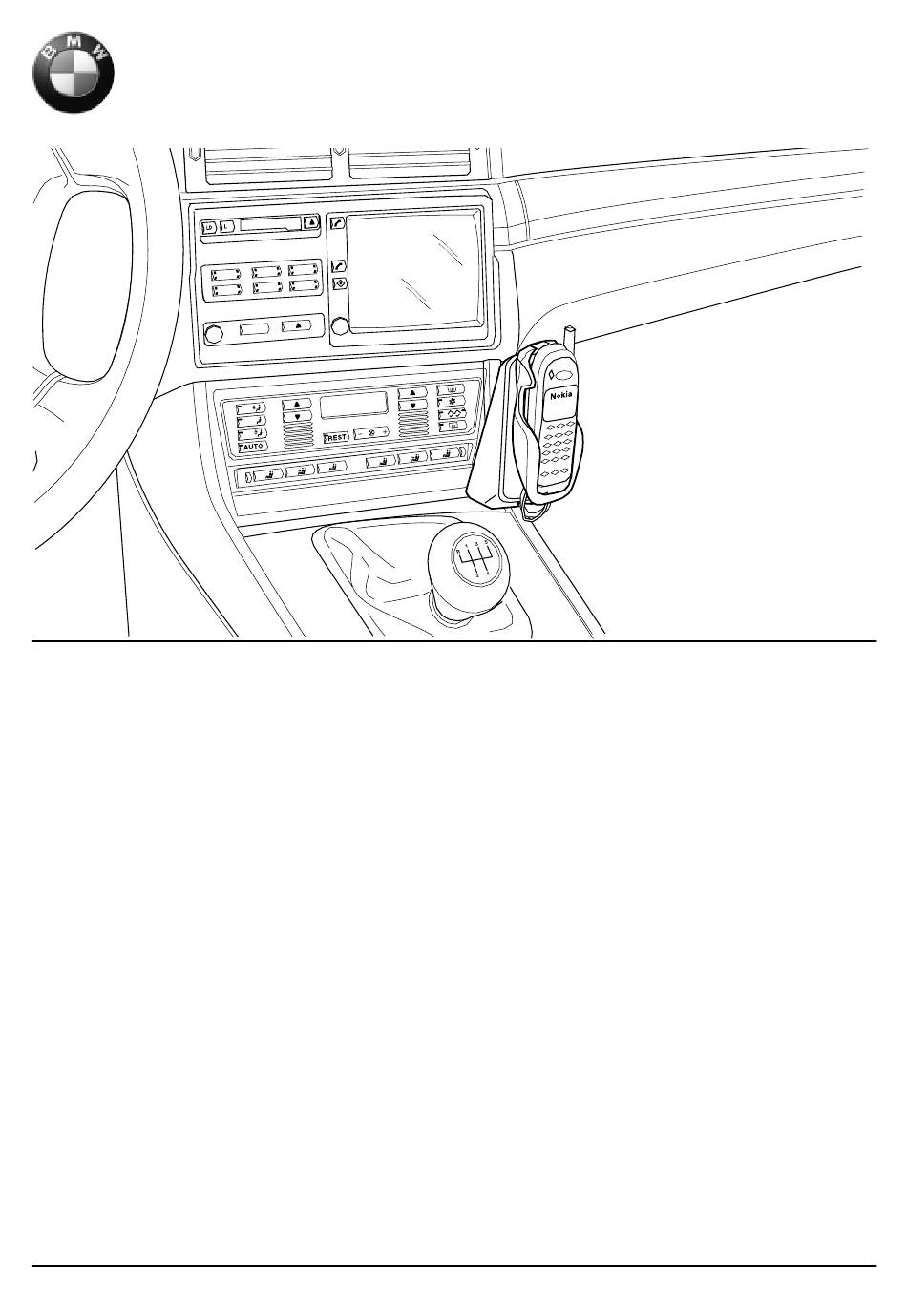

Installation Instructions
Retrofit kit for Nokia hands-free facility
BMW 7 Series (E 38) LHD
These installation instructions are only valid for cars up to a production date of 9/00.
Specialist and electrical knowledge required.
Installation time 1 hour, depending on the condition of the car and the equipment in it.
Retrofit / Installation kit No. 84 64 0 025 810
Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614
Installation instructions No. 01 29 0 025 833
84 64 0 026 614
Issue date: 07 .2000
F 38 0175 B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 84 64 0 025 810 and is the answer not in the manual?

Questions and answers

Related Manuals for BMW 84 64 0 025 810

Summary of Contents for BMW 84 64 0 025 810

  • Page 1 Retrofit / Installation kit No. 84 64 0 025 810 84 64 0 026 614 Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 Installation instructions No. 01 29 0 025 833...

  • Page 2: Table Of Contents

    16. Circuit diagram for telephone adapter cable (cars with SA 640 telephone preparation only) ......................47 Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 Installation instructions No. 01 29 0 025 833...

  • Page 3: Important Information For The Installation Of The Nokia Hands-Free Facility

    Adhesive textile tape Set of Allen keys Drill Angle cutter Double-sided adhesive tape Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/26 Installation instructions No. 01 29 0 025 833...

  • Page 4: Preparations

    Remove the centre console trim at the front right. 51 16 200 Remove the microphone trim. 51 44 011 Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/27 Installation instructions No. 01 29 0 025 833...

  • Page 5: Parts Overview

    3. Parts overview F 38 0176 B Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/28 Installation instructions No. 01 29 0 025 833...
  • Page 6 The parts marked with an asterisk (*) are not supplied with the parts kit and must be ordered separately using the electronic parts catalogue (EPC) to suit the equipment in the car. Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/29 Installation instructions No.

  • Page 7: Connection Overview

    White 6-pin socket casing To white 6-pin plug casing on the hands-free facility control module (2) behind the glove compartment. Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/30...
  • Page 8 PIN 2, red/black/yellow cable, on the white 3-pin socket casing for the cigarette lighter plug connector X531 under the centre console insert with trim Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/31...

  • Page 9: Installation And Wiring Diagram (For Cars With Sa 640 Telephone Preparation Only)

    Branch D3 on the right near the heating duct Tie back any excess lengths. Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/32 Installation instructions No. 01 29 0 025 833...

  • Page 10: Installation And Wiring Diagram (For Cars Without Sa 640 Telephone Preparation Only)

    Branch C2 to the footwell on the passenger side Tie back any excess lengths. Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/33 Installation instructions No. 01 29 0 025 833...

  • Page 11: To Install The Microphone

    F 38 0181 B Then secure the front headlining trim (30) in the headlining (31). Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/34 Installation instructions No. 01 29 0 025 833...

  • Page 12: To Install And Connect The Adapter Wiring Harness, Aerial Adapter Cable And Telephone Adapter Cable In Cars With Sa 640 Telephone Preparation

    (32) towards the front (on the right near the heating duct (33). X4546B F 38 0183 B Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/35 Installation instructions No. 01 29 0 025 833...
  • Page 13 UHF on the aerial adapter cable B, through it. F 38 0206 B Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/36 Installation instructions No. 01 29 0 025 833...
  • Page 14 3-pin socket casing (33). Then tie back the telephone wiring harness (30) again. Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/37 Installation instructions No. 01 29 0 025 833...

  • Page 15: To Install And Connect The Adapter Wiring Harness In Cars Without Sa 640 Telephone Preparation

    Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/38 Installation instructions No. 01 29 0 025 833...

  • Page 16: To Install The Mobile Phone Holder With Connection Cable On The Telephone Console

    (23) using textile adhesive tape (30). F 38 0191 B Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/39 Installation instructions No. 01 29 0 025 833...

  • Page 17: To Install The Telephone Console With The Fitted Mobile Phone With Connection Cable

    Affix the rattling guard (14) on the cable so that it encloses the screw connection C2 + B2 or C2 + 30. Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/40...

  • Page 18: To Connect And Install The Hands-Free Facility Control Module

    (34) from the coarse Dual securing strip (17) on the hands-free facility control module (2). Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/41 Installation instructions No. 01 29 0 025 833...
  • Page 19 (31). F 38 0197 B Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/42 Installation instructions No. 01 29 0 025 833...

  • Page 20: To Prepare And Install The Right-Hand Footwell Trim

    (31) and secure it with the self- tapping screw (32). F 38 0202 B Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/43 Installation instructions No. 01 29 0 025 833...

  • Page 21: Coding And Concluding Work

    Conduct a function test. Assemble the car again following the instructions to dismantle it in reverse order. Print out the error memory. Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/44...

  • Page 22: Circuit Diagram For Adapter Wiring Harness

    GR = Grey BK = Black GN = Green YE = Yellow Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/45 Installation instructions No. 01 29 0 025 833...
  • Page 23 15. Circuit diagram for adapter wiring harness Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/46 Installation instructions No. 01 29 0 025 833...

  • Page 24: Circuit Diagram For Telephone Adapter Cable (Cars With Sa 640 Telephone Preparation Only)

    GR = Grey BK = Black GN = Green YE = Yellow Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/47 Installation instructions No. 01 29 0 025 833...
  • Page 25 16. Circuit diagram for adapter wiring harness (cars with SA 640 telephone preparation only) X531B RTSWGE RTSWGE RTSWGE 0.35 RTGE X4545B F 38 0205 B Retrofit / Installation kit No. 84 64 0 025 810, 84 64 0 026 614 Issue date: 07 .2000 GB/48 Installation instructions No. 01 29 0 025 833...
