TVTRUSS74 Assembly Instructions

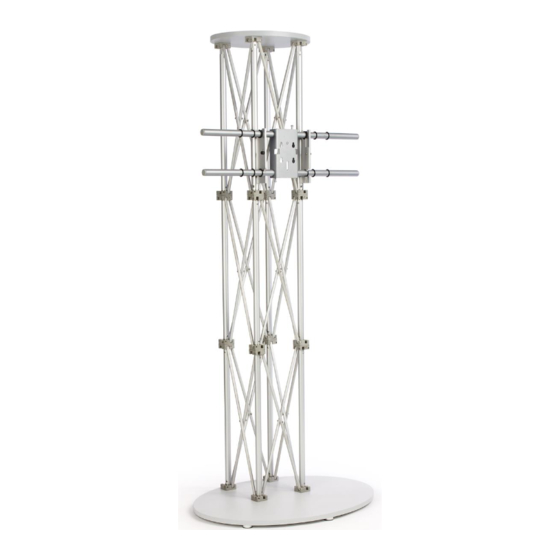

This truss display stand will accomodate LCD screens up to 50" diagonal.
Part
Base
Top
Top Truss
Truss
Rails
Bracket
O-Rings
Hex Wrench
Bolt
Carry Bag (not shown)

Step 1.

Open a Truss (D) section and align
screws with holes on Base (A).
Rotate truss tubes clockwise.
Make one full turn on one truss
tube and repeat on next tube.
Continue to alternate turning
all truss tubes to ensure
Base does not bind. Tighten
all four truss connectors.
D
ID Qty
A 1
B 1
C 1
D 2
E 1
F 2
G 8
H 1
I 4
1
A

Step 2.

Open Truss (D) section
and align screws with
holes on truss from Step 1.
Fasten using same
procedure in Step 1.
A
B
E
G

Step 3.

Top Truss (C) and Top (B)
D
must be assembled at the
same time. Align screws of
Top Truss with holes of
Truss (D) and place Top (B)
on Top Truss (C).
Rotate Top Truss tubes
clockwise. Make sure threads
catch at top and bottom.
Complete one half turn
on one truss tube and repeat
on next tube.
Continue to alternate turning
truss tubes to prevent binding.
Tighten all four tubes.
IMPORTANT! Brackets on
Top Truss must be placed
as shown, so LCD screen
is over center of
Base.
Page 1 of 2
C D D
F
I
F
H
B
C
D
