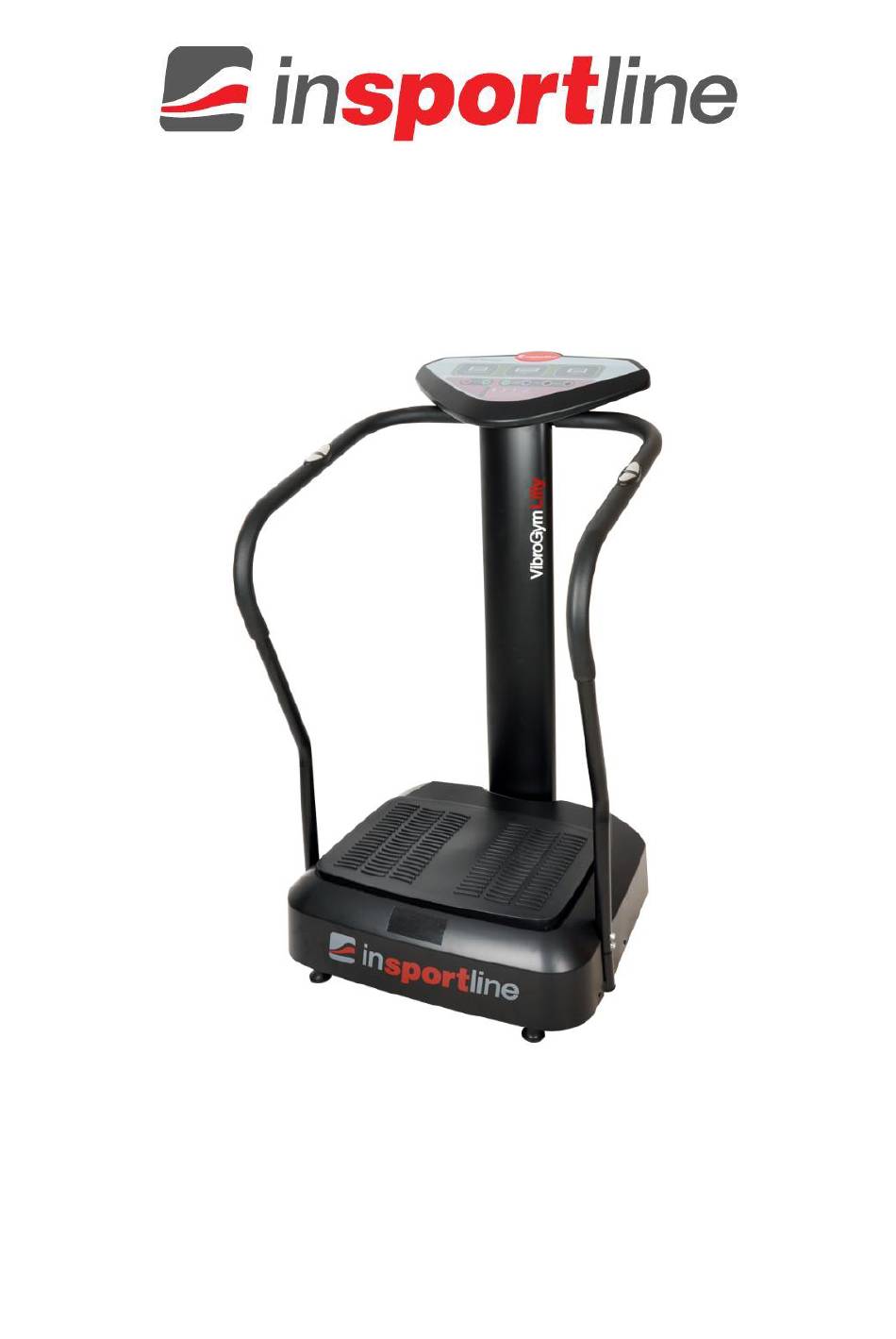

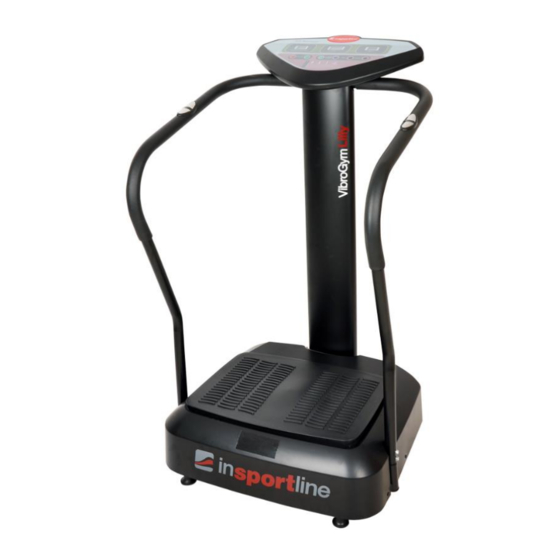

- Page 1 USER MANUAL – EN IN 2164 VibroGym inSPORTline Lilly Vibration Machine...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PRODUCT DESCRIPTION ........................5 TECHNICAL PARAMETERS ........................5 PARTS LIST ............................6 ASSEMBLY ............................. 7 USE ............................... 10 PROGRAMS ............................10 CONTROL PANEL ..........................11 SELF-MAINTENANCE .......................... 14 CLEANING ............................14 FAQ ............................... 14 ENVIRONMENT PROTECTION ......................14 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS .......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please follow the warnings and cautions said below strictly. This will prevent to damage of your machine or any harm to your body or any lose which caused by any improper use of the machine. Read the manual carefully before first use and keep it for future references. Read the manual carefully and keep it for future reference. - Page 4 • When damaged, it might be lead to fire. • Please do not use damaged power cord or plug. • It might lead to fire or electrocution. • Do not install the machine in wet place or near to water. •...
-
Page 5: Product Description
TIPS It is advisable to drink 500ml lukewarm water before use in order to eliminate the toxic wastes. Drink 3000ml of water daily for a healthier lifestyle as it can revitalize your energy in your body. Water can benefit your body as follows: •... -
Page 6: Parts List
PARTS LIST Name Name Base Crosshead screw M5x10 Left handle support Crosshead screw M6x10 Right handle support Spring washer M8 Left handle Spring washer M5 Right handle Washer M8 Control panel Washer M5 Middle post Cable A Bolt M8x20 Fat sensor cable B Bolt M8x60 Fat sensor cable A Crosshead screw M5x10... -
Page 7: Assembly
ASSEMBLY STEP 1 Place the base (1) on the ground. Connect the cables from the middle post (7) to the cables from the base (1). Secure the post (7) to the base (1) with 2x bolts (8), 2x bolts (9), 4x washers (14) and 4x washers (16) as shown. - Page 8 STEP 3 Attach the handles (2 and 3) to the support rods (4 and 5) with 4x bolts (12). Attach the handles (2 and 3) to the middle post (7) with 2x bolts (11). STEP 4 Connect the cables (18 and 21) to the fat sensor A (20) and B (19). Then insert the cables into the post (7).
- Page 9 STEP 5 Attach and secure the control panel (6) to the middle post (7) with 3x screws (13).
-
Page 10: Use
Press the start button to start the device. Use the console as instructed. Place the device on a flat and solid floor. You can use a protective pad. Do not use continuously for more than 20 minutes. If you are using exercises that make it difficult to start the machine, we recommend that you start the machine first or ask another person for help. -
Page 11: Control Panel
CONTROL PANEL Speed Time Decrease speed Increase speed Time setting Save guide Body fat Turn on button Stop button Body fat measurement button Start / stop button: press this button to turn the device on / off Fat measurement button: After turning on the device, you can select the program by pressing the fat measurement button: automatic massage, manual massage (programs P1 - P3) or body fat calculation (values are for guidance only and are not for medical purposes). - Page 12 EXERCISES...
-
Page 14: Self-Maintenance
SELF-MAINTENANCE 1. Regularly tighten all bolts. 2. Clean sweat and dirt after each use. 3. Before cleaning, ensure that the main switch is turned off and AC plug is removed from the electrical outlet. 4. Do not using the Vibration Plate too long for the first time. 5. - Page 15 According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not conclude and execute the Contract in order to run or promote his own trade or business activities. “The Buyer who is not the End Customer”...
- Page 16 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
