Acura 08L02-TZ5-200C Installation Instructions

INSTALLATION
INSTRUCTIONS
PARTS LIST
Left roof rail cover
Right roof rail cover
TOOLS AND SUPPLIES REQUIRED
Ratchet
Torque wrench
T-15 TORX bit
The following tools are available through the Acura Tool
and Equipment Program. On the iN, click on Service >
Service Bay > Tool and Equipment Program, then enter
the number under "Search." Or, call 888-424-6857.
• Trim Tool Set (T/N SOJATP2014)
• Plastic Trim Tool (T/N SILTRIMTL10)

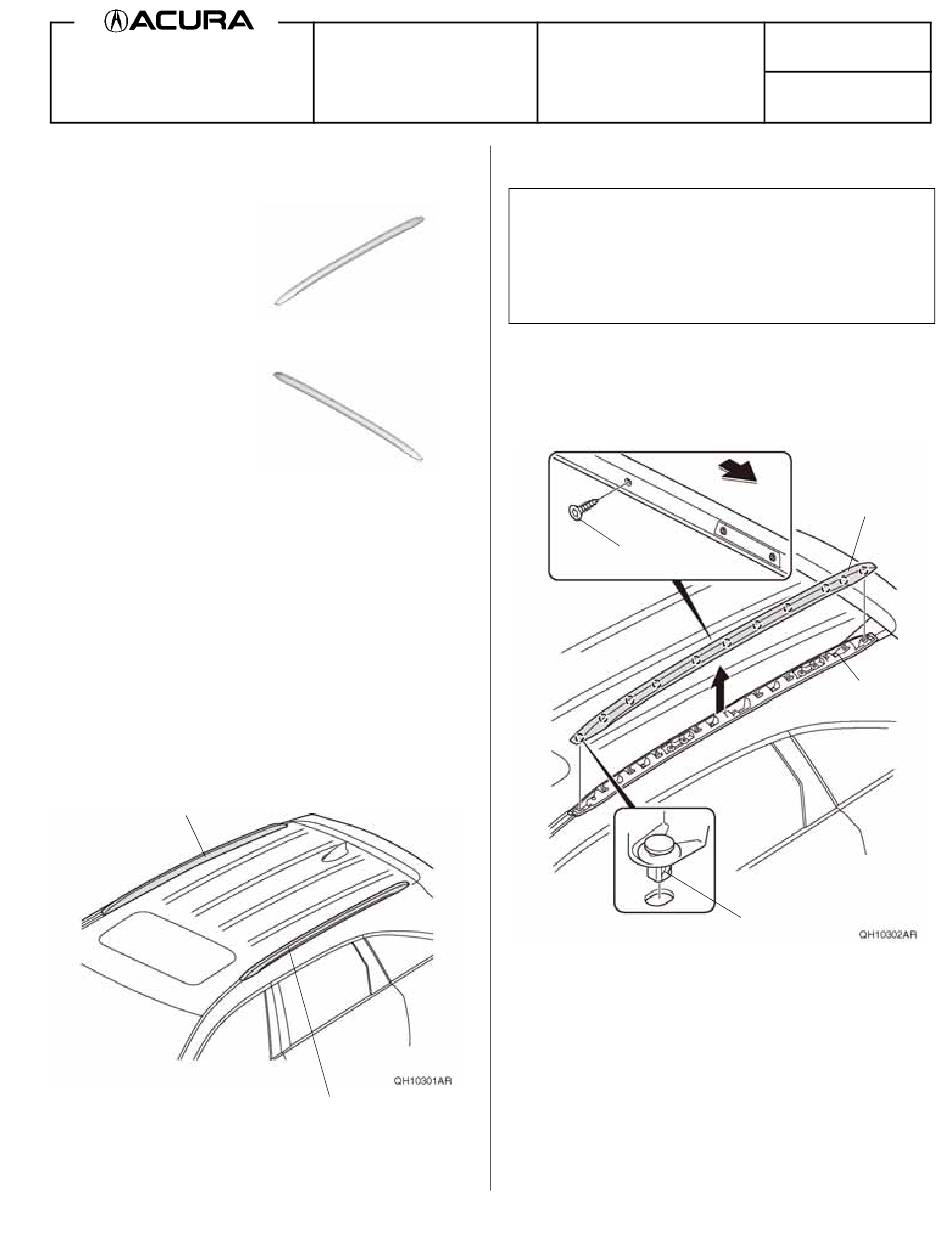

Illustration of the Roof Rail Covers Installed on the
Vehicle
RIGHT ROOF RAIL COVER
© 2018 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
ROOF RAIL COVERS
P/N 08L02-TZ5-200C
LEFT ROOF RAIL COVER
Application
2019 MDX
INSTALLATION
Client Information: The information in this installation
instruction is intended for use only by skilled
technicians who have the proper tools, equipment, and
training to correctly and safely add equipment to your
vehicle. These procedures should not be attempted by
"do-it-yourselfers."
NOTE: Be extremely careful not to damage the roof and
other finished surfaces of the body.
1. Remove the left roof rail cover from the left roof rail
base.
TORX SCREW
BII08978-03 (1807)
Publications No.
VERSION 1
Issue Date
JULY 2018
LEFT ROOF
RAIL COVER
FRONT
(Do not reuse.)
LEFT ROOF
RAIL BASE
11 CLIPS
1 of 2
08L02-TZ5-2B00-90
