Pro-Form Easy Access 2.0 PFIVEX86023.0 User Manual page 7

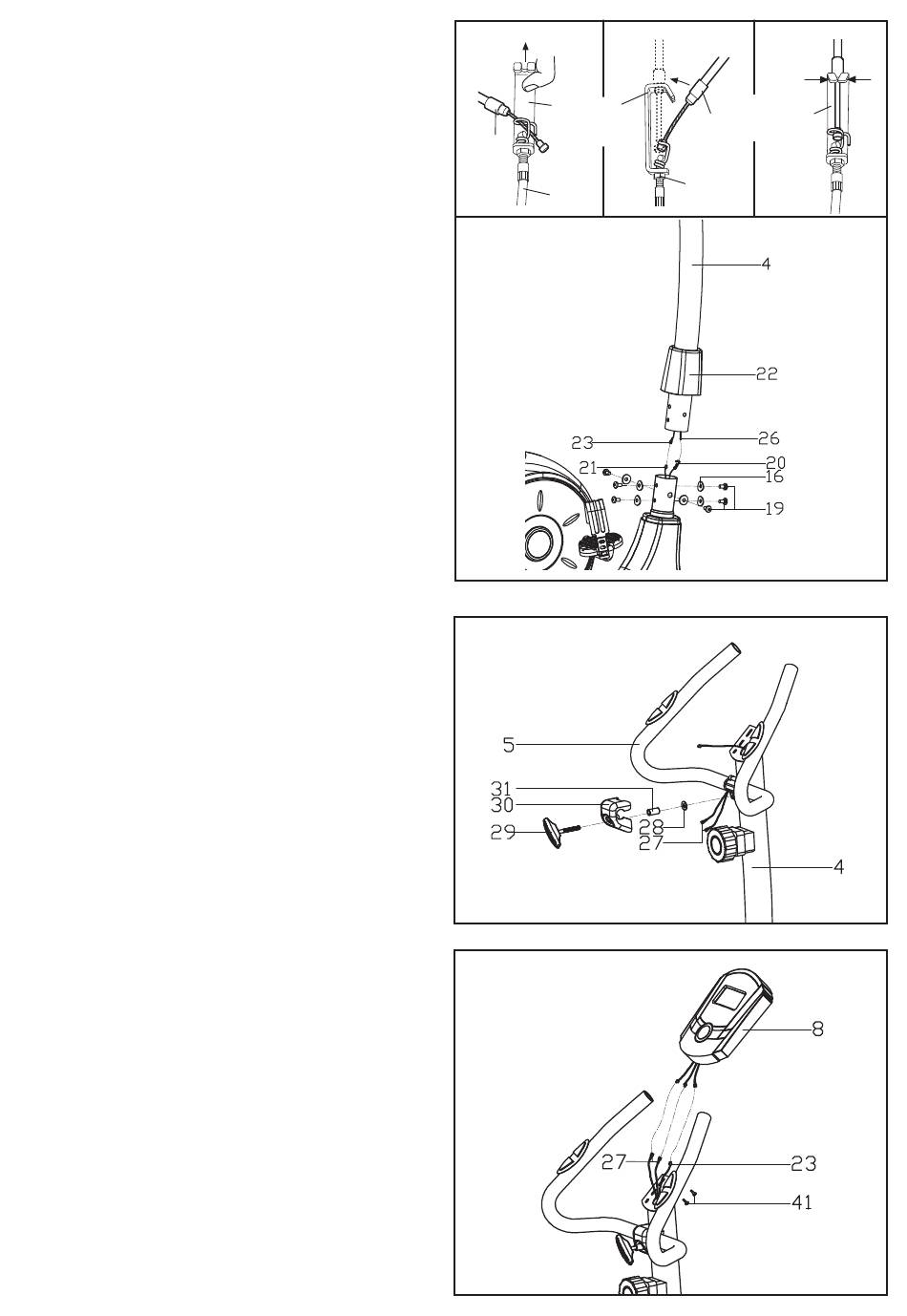

STEP 4
A C
B
While another person holds the Upright (4) near
the Frame (1), connect the Extension Wire (23) to
Metallic
Metallic
the sensor Wire (21).
26
6
suport
suport
Next, connect the Resistance Cable (26) to the
26 6
Lower Cable (20) in the following way:
20
9
20
9
• See drawing A. Pull upward on the metal bracket
on the Lower Cable (20), and insert the tip of the
Resistance Cable (26) into the wire clip inside the
metal bracket as shown.
• See drawing B. Firmly pull the Resistance Cable
(26) upward and slide it into the top of the metal
bracket as shown.
• See drawing C. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
Push the Wires (23, 21) and the Cables (20, 26)
downward into the Frame (1).
Tip: Do not pinch the wires and cables. Insert the
Upright (4) into the Frame (1). Attach the Upright
with four Screws (19) and four Washers (16).
STEP 5
Fit the Pulse sensor wires (27) through the hole of
Handlebar post (4), and then pull out from the top
of the Handlebar post (4).
Fix the Handlebar (5) onto the Handlebar post (4)
with Bolt (29), Handlebar cover (30), Bushing (31)
and Flat washer (28).
STEP 6
Open the battery cover and install two "AA" or
"UM-3" batteries into the battery compartment on
the back of Computer (8).
Pull the Sensor connecting wire (23) and hand
pulse wire (27) through the hole of Computer
bracket (8) and then fit the bracket onto the Han-
dlebar post. Secure with Cross pan head screw
(41) as shown.
Now your machine is ready for use.
