Service Procedure SP-JSS-190522-001

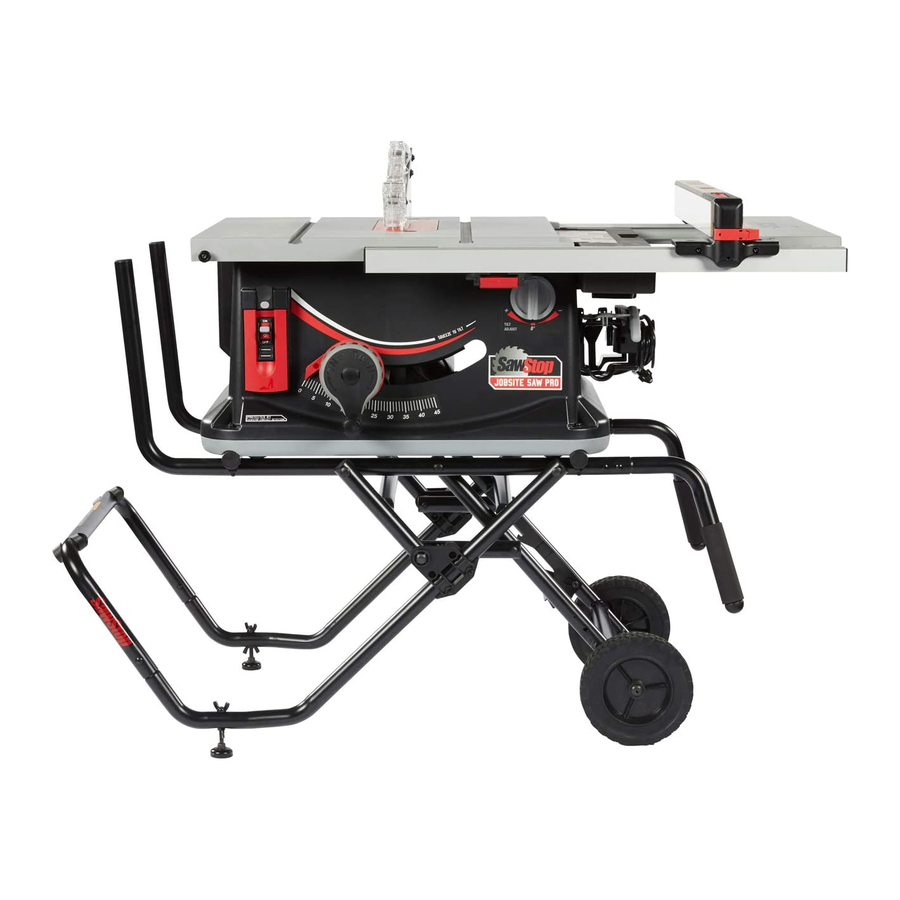

Adjusting JSS Guard Clamp
Tools & Supplies Required for This Procedure:
• 4mm Allen wrench
• 13mm combination wrench
Background: It sometimes becomes necessary to adjust the alignment of the JSS guard clamp to the
blade, or to adjust the clamping force. The clamp works on the same principles at the other SawStop
saws; the red clamping handle operates a cam that pushes the pressure plate sideways to clamp the
riving knife or splitter into place. This procedure discusses the steps needed to align the splitter with the
saw blade, and to adjust the clamping force.

Procedure Steps:

(Before starting, please read instructions all the way through to ensure complete understanding)
(Table Layout: Sample Text follows)

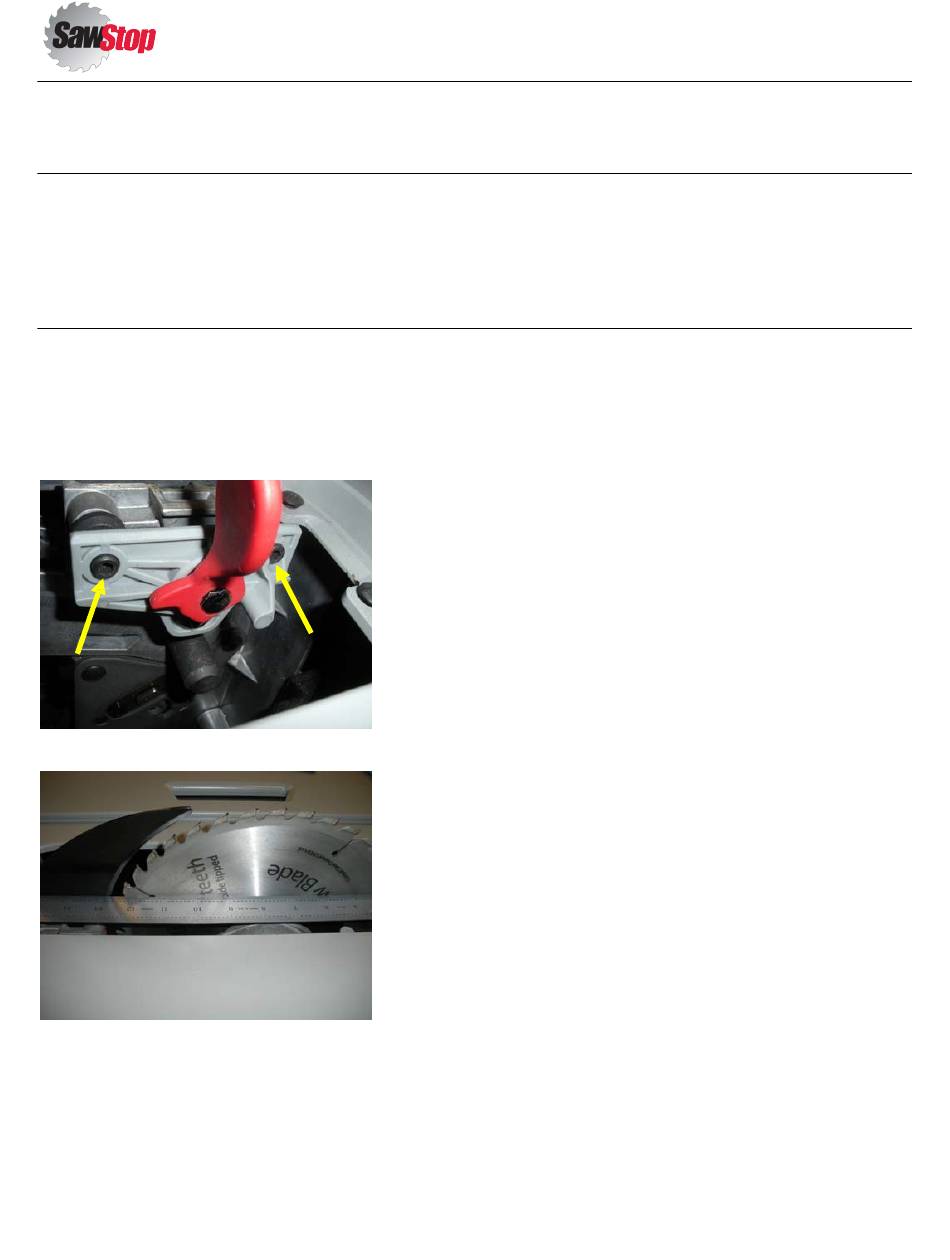

Guard Clamp Alignment Screws:

Checking alignment:

Adjusting these screws moves the position of the guard
clamp in and out to align with the saw blade.
1. Slide the steel straightedge against the left side of the
blade plate, making sure it runs between the carbide
tips and rides flat against the blade with no air gaps.
2. Ideally, the straightedge should also run flat against
the left side of the riving knife, with no gaps. If so,
you're done – no alignment is needed.
