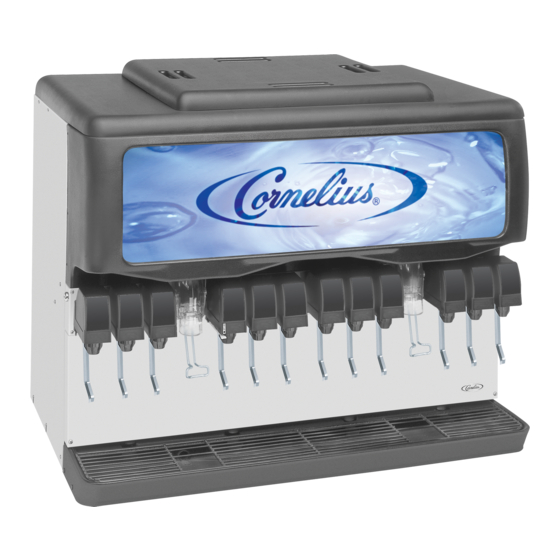

Cornelius ice/beverage dispenser operator's manual
Hide thumbs Also See for ED 300 BC:

Advertisement

OPERATOR'S MANUAL
ICE/BEVERAGE DISPENSER
Model: ED 300 BC
Release Date: March 24, 2004
Publication Number: 92059OPR
Revision Date: August 3, 2010
Revision: C
Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED 300 BC and is the answer not in the manual?

Questions and answers

Summary of Contents for Cornelius ED 300 BC

  • Page 1 OPERATOR’S MANUAL ICE/BEVERAGE DISPENSER Model: ED 300 BC Release Date: March 24, 2004 Publication Number: 92059OPR Revision Date: August 3, 2010 Revision: C Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.
  • Page 2: Contact Information

    Commercial Warranty. Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting from any of the following occurrences, including but not limited to, (1) other than normal and proper use and normal...
  • Page 3: Table Of Contents

    Safety Instructions..............1 Read and Follow ALL Safety Instructions .
  • Page 5: Safety Instructions

    Only trained and certified electrical, plumbing and refrigeration technicians should service this unit. ALL WIRING AND PLUMBING MUST CONFORM TO NATIONAL AND LOCAL CODES. FAILURE TO COMPLY COULD RESULT IN SERIOUS INJURY, DEATH OR EQUIPMENT DAMAGE. © 2004-2010, IMI Cornelius Inc. Ice/Beverage Dispenser Operator’s Manual AFETY...
  • Page 6: Safety Precautions

    Publication Number: 92059OPR ARNING OUNTER - 2 - gas leaks in the entire CO © 2004-2010, IMI Cornelius Inc.
  • Page 7: Start-Up And Operating Instructions

    © 2004-2010, IMI Cornelius Inc. Ice/Beverage Dispenser Operator’s Manual F. This could cause damage to the unit.
  • Page 8: Cleaning And Maintenance Instructions

    Ice/Beverage Dispenser Operator’s Manual CLEANING AND MAINTENANCE INSTRUCTIONS These instructions are used on all Cornelius ice drink dispensers. Some models may have additional cleaning requirements. Those models will have addition procedures listed later in the manual. WARNING: Disconnect power to the unit before cleaning or servicing following all lock out / tag out procedures established by the user.
  • Page 9: Cold Plate (Yearly Maintenance)

    8. Energize beverage faucet until chlorine sanitizing solution is dispensed through the faucet. Flush at least two (2) cups of liquid to ensure that the sanitizing solution has filled the entire length of the syrup tubing. © 2004-2010, IMI Cornelius Inc. Ice/Beverage Dispenser Operator’s Manual system.
  • Page 10: Sanitize Syrup Lines, B-I-B Systems

    - 6 - cylinder”) portion of the pressure to escape, then remove the cylinder with a safety chain to prevent it regulator can cause serious © 2004-2010, IMI Cornelius Inc.
  • Page 11: Removal And Replacement Of Agitators

    10. Lift the plastic agitator disc off of the stainless-steel agitator. 11. Replace by reversing steps. NOTE: Refer to Sanitize Procedure in the Owners Instruction for complete cleaning and sanitizing instructions. © 2004-2010, IMI Cornelius Inc. Ice/Beverage Dispenser Operator’s Manual - 7 - Publication Number: 920590OPR...
  • Page 12: Troubleshooting

    No 24 volt power to PC board. No CO2 pressure. C. Empty syrup tank. Kinked tubing. Clogged inner nozzle. Defective PC board. G. Defective harness from keypad. H. Defective Flow control. Defective solenoid harness. Defective keypad - 8 - © 2004-2010, IMI Cornelius Inc.
  • Page 13: Flavor Dispenses For More Than 1 Sec

    FLAVOR DISPENSES MORE THAN .5 OZ Contact your local syrup or beverage equipment distributor for additional information and troubleshooting of beverage system. © 2004-2010, IMI Cornelius Inc. Ice/Beverage Dispenser Operator’s Manual Dip switch settings on control board incorect. PC board defective.
  • Page 14 Ice/Beverage Dispenser Operator’s Manual Publication Number: 92059OPR - 10 - © 2004-2010, IMI Cornelius Inc.
