1.Prerequisites
Hardware: CHC i80 Kit, Controller Kit, UHF Bar
Antenna (450-470 MHz), Lithium Battery, pole
Software: LandStar 7
2.Steps to set i80 working as
rover in Internal UHF mode with
LandStar 7

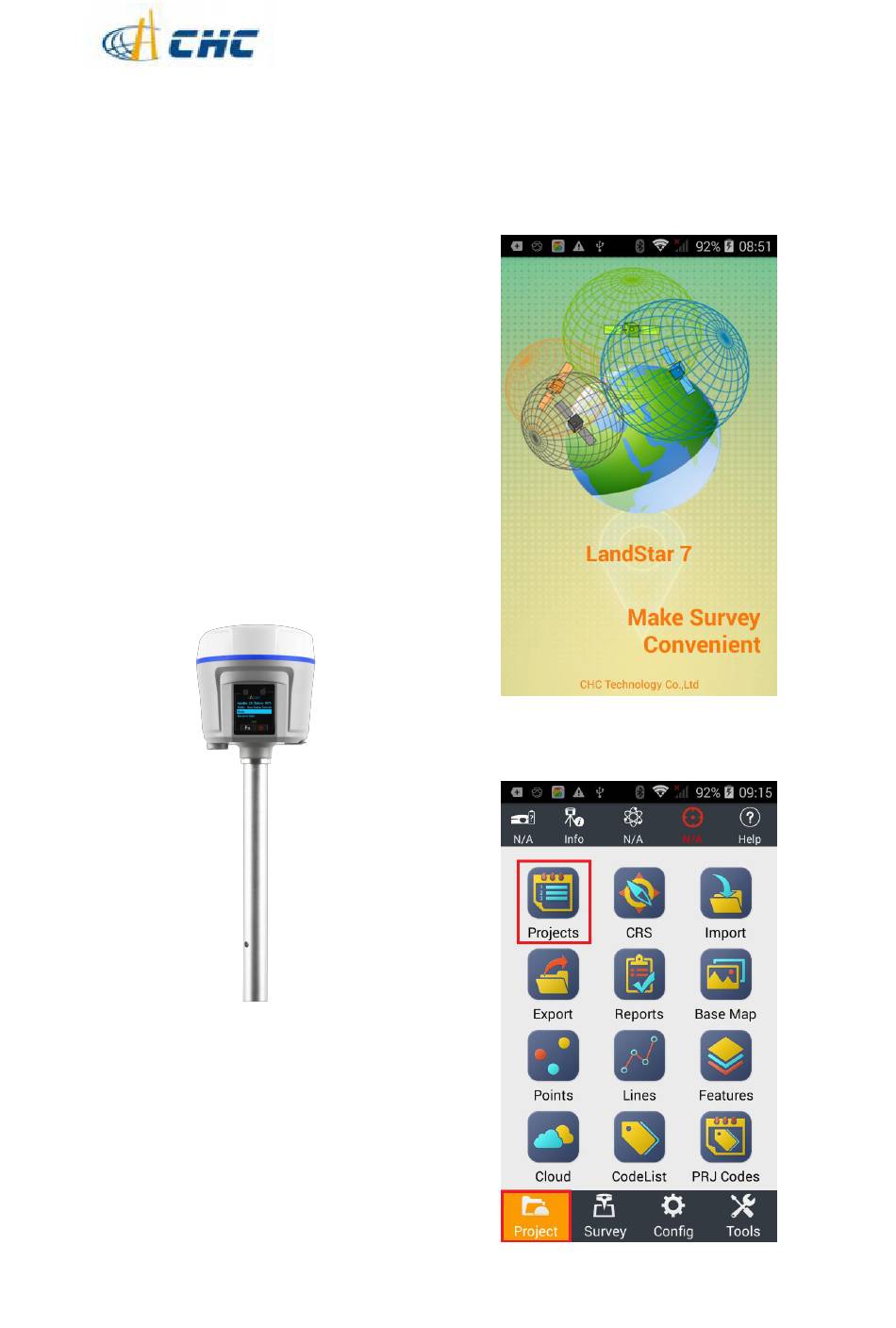

2.1 Rover installation
Fix the bar antenna onto the antenna port,
screw the rover receiver on the pole, and
put the Controller adapter in the right
place.
Note: The recommend firmware version of
i80 is 1.3.42 or higher. If not, please contact
local dealer or CHC Support for latest
firmware.
i80 GNSS Receiver Quick Tour with LandStar 7 (UHF Rover)
2.2 Rover setting in LandStar 7
1. Power on the receiver
Long press the i80 power button until the
green and blue LED lights are on.
2. Launch the LandStar 7 software
3. Click [Projects] icon in [Project] menu to
create or open a project.
