P o o l C o p M a n u a l : V 4 2 E N

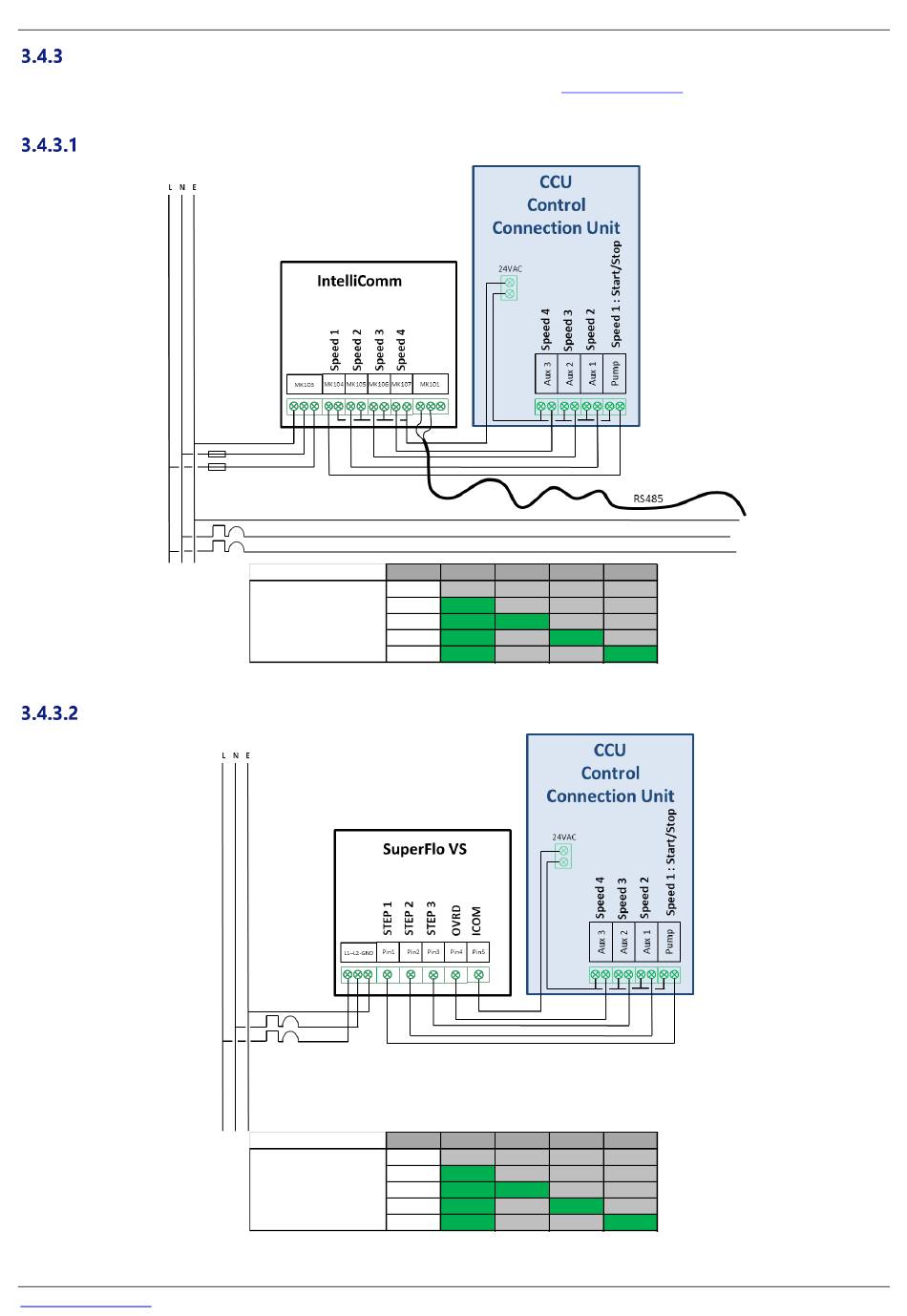

Con nect i ng a V a r ia ble Speed Pum p
See the VARIABLE SPEED PUMPS GUIDE downloadable on our internet website
section for compatibility, connection, control and programming.
Pentair IntelliFlo VSD (with IntelliComm drive)
Pentair SuperFlo VS/VS2
www.poolcop.com
Speed
PENTAIR Intellicom STOP
1
2
3
4

Figure 14 - Pentair IntelliFlo VSD with IntelliComm

Speed
PENTAIR SuperfloVS STOP
1
2
3
4

Figure 15 - Pentair SuperFlo VS/VS2

www.poolcop.com
Pump Aux1 Aux2 Aux3
OFF OFF OFF OFF
ON OFF OFF OFF
ON ON OFF OFF
ON OFF ON OFF
ON OFF OFF ON
Pump Aux1 Aux2 Aux3
OFF OFF OFF OFF
ON OFF OFF OFF
ON ON OFF OFF
ON OFF ON OFF
ON OFF OFF ON
P a g e | 2 5
in RESOURCES /DOWNLOADS
