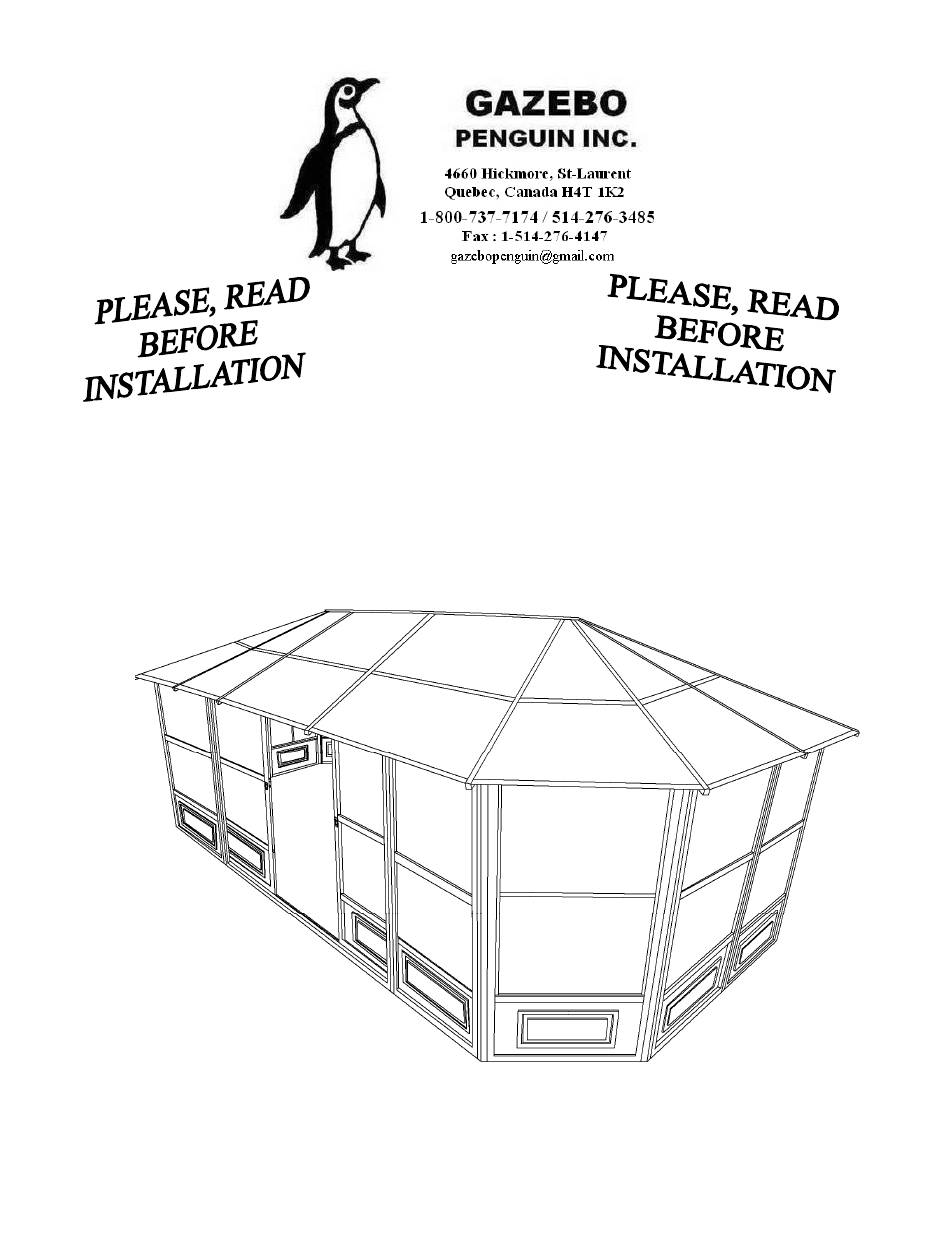

41218
12 X 18 SOLARIUM
ASSEMBLY INSTRUCTIONS
Assembly by more than one person is recommended.
Base Dimensions 12' ½"x18'11", Largest Dimensions 13'6"x20'4 ½" (see pg.14)
L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc
SUN-HO-REV5 1
Advertisement
Related Manuals for Gazebo penguin 41218
Summary of Contents for Gazebo penguin 41218
- Page 1 41218 12 X 18 SOLARIUM ASSEMBLY INSTRUCTIONS Assembly by more than one person is recommended. Base Dimensions 12’ ½”x18’11”, Largest Dimensions 13’6”x20’4 ½” (see pg.14) L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 1...
-
Page 2: Tools Needed
Based on the location, decide where you would like to position the solarium. Remember the sliding door with “C” shape should be placed on the left side. Sliding door with Regular sliding door receiver chanel L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 2... - Page 3 When assembling angled panels (A, B), you should put the two panels at 135 degree angle then use the angled connecting pieces (I) and (J) to affix the panels together. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 3...
- Page 4 1. Place a bolt (Ww) and washer (Gg) through the top door rail (F) and door frame, and a female bolt (Cc-2) from the other side. Once all are inserted, tighten them all securely. 2. Secure bottom door rail (G), using a bolt (Cc) and washer (Gg). L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 4...
- Page 5 4. Then use screw (Oo) to affix the upper door rail end caps (Nn) one at each end of top rail (F). 5. The other side of top rail (F) is same as above step. Doors as seen from inside Repeat steps 2 and 3 for the second door. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 5...
- Page 6 Make sure that extra hole on bracket remains on the side of angled panel (at the corner). Then screw it to frames with screws (Z). 2) Do not tighten the bolts right away as you may have to adjust the angle when inserting the PC roof panels. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 6...
- Page 7 First remove the protective layer from the PC panels, then insert them (Y, Aa, Ll, Qq) between the roof rafters according to the below drawing instructions. Note: the side that had the protective layer should be face down. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 7...
- Page 8 After the installation of the middle roof joints complete, insert the bottom PC roof panels (Jj, Kk, Mm, Rr) according to below drawing instructions. They should overlap about two inches under the upper PC roof panels and into the aluminum middle joints. Before After L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 8...
- Page 9 Step11: Once the installation of the edging complete, start affixing the roof cross bars (T, V, X, Tt) using bolt (Ff). Affix the top cross bars (Uu) onto the roof rafter (L) using bolt (Ff). L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 9...
- Page 10 2. To remove screening panel, first remove windows, then unscrew the 2 screws at the top corners of the screen frame. L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 10...
- Page 11 135° ANGLED 135° ANGLED OUTSIDE INSIDE CONNECTOR CONNECTOR 08-141 08-142 ROOF RAFTER ROOF RAFTER 08-164 08-166 TOP CAP CENTRAL HUB 08-145 08-146 MIDDLE ROOF MIDDLE ROOF JOINT JOINT 08-147 08-148 MIDDLE ROOF ROOF RAFTER JOINT L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 11...
- Page 12 (24 ½”x46 ½”) 08-158 TOP ROOF BOLT CORNER PANEL 08-161 08-167 BOLT SCREW 08-168 08-187 BOLT WASHER 08-189 08-193 ACORN NUT PLASTIC PLUG 08-195 08-196 (47”x47 ½”) (46 ¼”x43”) BOTTOM ROOF BOTTOM ROOF LEFT PANEL CORNER PANEL L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 12...
- Page 13 (INSTALLED IN THE DOOR 11-597 11-598 VERTICAL HORIZONTAL DOOR FRAME DOOR FRAME 12-036 12-037 PHILLIPS #2 FEMALE BOLT SCREWDRIVER Cc-2 11-623 AVAILABLE PLEASE Window for solarium EXTRA SINGLE 08-219 CALL (on the frames) DOOR 12-047 BOLT L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 13...
- Page 14 L:\WP51\Instructions\SOLARIUMS INSTRUCTION BOOKS\41218\ZZZ-184.41218.GP.EN.REV5.doc SUN-HO-REV5 14...
- Page 15 Warranty set forth below, it is warranted to be free of material and manufacturing defects for a period of one year from the date of purchase. Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement parts and prices.
