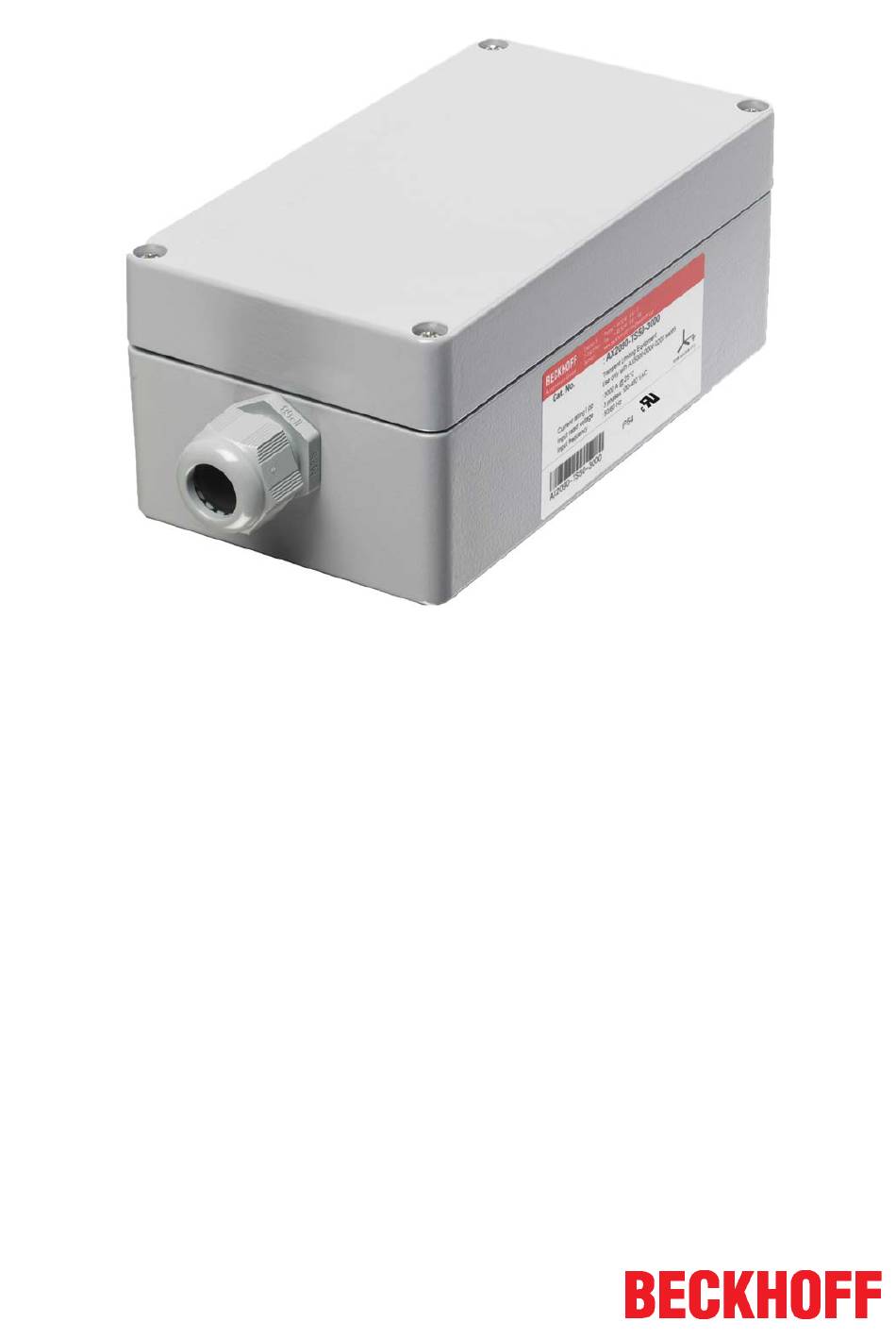

- Page 1 Documentation Transient voltage suppressor - AX2090- TS50-3000 Version: Date: 12.01.2017...
-
Page 3: Table Of Contents
Table of content Table of content 1 Foreword .............................. 4 Notes on the documentation...................... 4 Documentation issue status...................... 5 Appropriate use .......................... 5 2 Safety................................ 6 Safety instructions .......................... 6 3 Guidelines and Standards ........................ 7 CSA approval.......................... 7 4 Technical data............................ 8 Name plate ............................. 8 5 Installation of the transient box ....................... 9 Connection example ........................ -
Page 4: Foreword
EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 5: Documentation Issue Status
Comment First edition Appropriate use The AX2090-TS50-3000 transient boxes are accessory components for the AX5000 servo drive series. They are specifically designed for the Canadian market, to protect supply networks from overvoltages and to absorb current peaks. The AX2090-TS50-3000 transient boxes are always installed as control cabinet components and may only be commissioned as integrated system components. -
Page 6: Safety
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Guidelines And Standards
AX52090-TS50-3000 – certified according to CAN / CSA C22.2 no. 274. The cRU logo should be shown on the name plate. If you wish to operate an AX2090-TS50-3000 in Canada, please check whether the name plate shows the cRU logo. -
Page 8: Technical Data
Technical data Technical data This section contains general technical data and ordering information for the Beckhoff AX2090-TS50-3000 transient box. See below for name plate information (technical approvals, certifications, mains supply, etc.). AX2090-TS50-3000 Electrical data Rated input voltage [V 100 – 480 Max. -
Page 9: Installation Of The Transient Box
• cable between the mains filter and the AX5000 servo drive: max. 400 mm. EMC-compliant installation of the components and shield concept For further information on EMC-compliant installation and the shield concept please refer to the Beckhoff website (www.beckhoff.com) under: Note Motion → Documentation → AX5000 – EMC leaflet. -
Page 10: Installation In The Control Cabinet
Installation of the transient box Installation in the control cabinet Beckhoff Automation GmbH & Co. KG recommends M6 screws with through-hole thread of strength grade 8.8 for installation of the transient box in the control cabinet. The screws should be tightened with a maximum tightening torque of 7.3 Nm. -
Page 11: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
