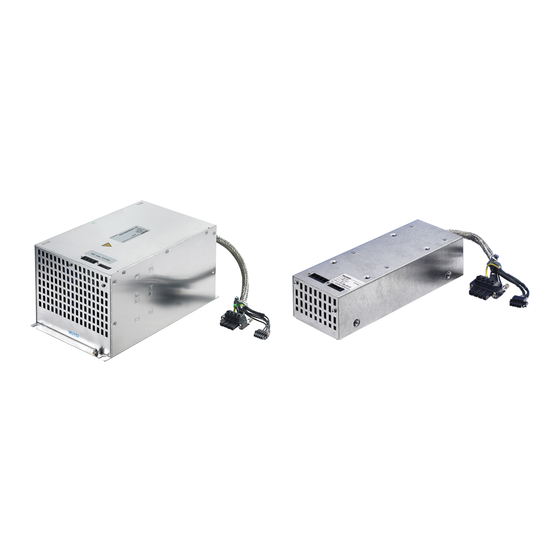

- Page 1 Documentation Motor choke AX2090-MD50 Version: Date: 2017-06-08...
-
Page 3: Table Of Contents
Table of content Table of content 1 Foreword .............................. 5 Notes on the documentation...................... 5 Documentation issue status...................... 5 Safety instructions .......................... 6 2 Electrical connection .......................... 7 3 Technical data............................ 8 4 Installation of the motor choke AX2090-MD50-0012 ................ 10 5 Dimensions .............................. 11 AX2090-MD50-0012 ........................ - Page 4 Table of content Version: 1.0 Motor choke AX2090-MD50...
-
Page 5: Foreword
EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Electrical Connection
WARNING Connection cables Use exclusively Beckhoff motor cables and firmly tighten the connecting plugs. Max. tight- ening torque - M4 thread = 1.5 Nm ±0.1 Max. tightening torque - M3 thread (motor connec- Note tor) = 0.6 Nm ±0.1. -
Page 8: Technical Data
Technical data Technical data Rated motor current Motor cable length Servo Drives Motor choke max. 400 V >20 m to 100 m AX5101, AX5103, AX5106, AX2090-MD50-0012 AX5112, AX5201, AX5203, AX5206 max. 480 V >20 m to 100 m max. 400 V >20 m to 50 m AX5118 and AX5125 AX2090-MD50-0025... - Page 9 Technical data Insertion attenuation (reference value Z = 50 Ω) Motor choke AX2090-MD50 Version: 1.0...
-
Page 10: Installation Of The Motor Choke Ax2090-Md50-0012
Installation of the motor choke AX2090-MD50-0012 Installation of the motor choke AX2090- MD50-0012 Destruction of the motor choke! • Always install the motor choke vertically on an earthed metallic mounting plate. If no metallic mounting plate is available, you must earth the motor choke; an earthing bolt is CAUTION provided on the motor choke for this purpose. -
Page 11: Dimensions
Dimensions Dimensions AX2090-MD50-0012 Motor choke AX2090-MD50 Version: 1.0... -
Page 12: Ax2090-Md50-0025
Dimensions AX2090-MD50-0025 Version: 1.0 Motor choke AX2090-MD50... -
Page 13: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
