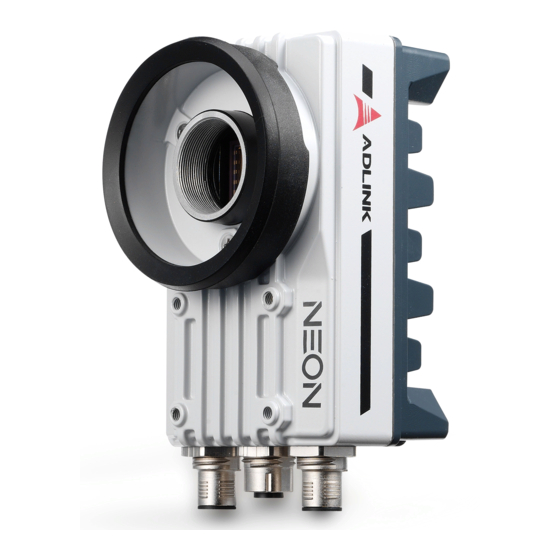

NEON-1040/1020 Starter Kit
Getting Started
Install 16 mm C-mount lens
Install lens protector
Install terminal board
Package Contents
• 5m shielded M12 socket to RJ45 plug
cable
• 3m M12 plug to free end cable
• 3m M12 plug (split) to VGA socket and
USB Type A socket cable
• IP67-rated lens protector
• Windows Embedded Standard
7 (license)
P/N 50- 40270-5000
Connect cables
Connect USB hub
• Terminal board for DI/O, RS-232,
GigE, USB, and power input
• 16mm 4Mpx C-mount lens
• 15° high-density white LED array
• 4 port USB hub
• NEON-1040/1020 Starter Kit Quick
Start Guide (this document)
• NEON-1040/1020 Quick Start Guide
Quick Start Guide
NEON-1040/1020
Starter Kit
Cable Details
Device
Camera End
End
M12 socket
RJ45 plug
M12 plug
Free end
Split to
VGA
M12 plug
socket and
USB Type
A socket
I/O Array
Power/I/O/UART
Ethernet
Rev. 2.00
Connects to
NEON-
1040/1020
via
Ethernet
Power/IO/UART
VGA/USB
VGA/USB
August 8 , 2014
