ADLINK Technology NEON-1020 User Manual

Quad core x86 smart camera
Hide thumbs Also See for NEON-1020:
Table of Contents

Advertisement

Quick Links

Download this manual

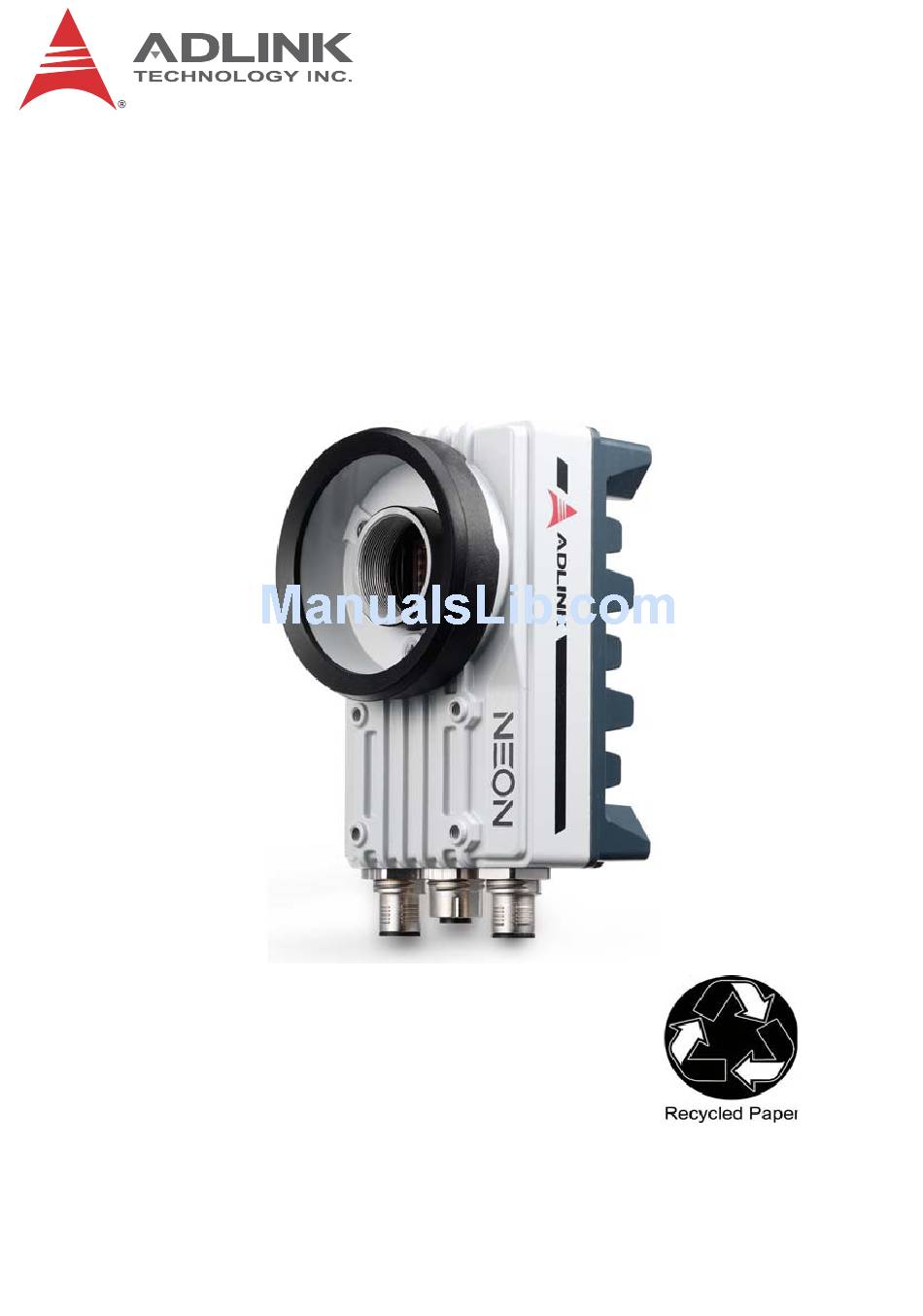

Quad Core x86 Smart Camera
Manual Rev.:
Revision Date:
Part No:
Advance Technologies; Automate the World.
NEON-1020/1040
User's Manual
2.00
June 13, 2014
50-1Z168-2000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEON-1020 and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology NEON-1020

Summary of Contents for ADLINK Technology NEON-1020

  • Page 1 NEON-1020/1040 Quad Core x86 Smart Camera User’s Manual 2.00 Manual Rev.: June 13, 2014 Revision Date: 50-1Z168-2000 Part No: Advance Technologies; Automate the World.

  • Page 2: Neon

    Revision History Revision Release Date Description of Change(s) 2.00 June 13, 2014 Initial release...
  • Page 3 NEON 1020/1040 Preface Copyright 2014 ADLINK Technology, Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.

  • Page 5: Table Of Contents

    NEON 1020/1040 Table of Contents Preface ..................iii List of Figures ............... vii List of Tables................ix 1 Introduction ................ 1 Overview................1 Features................1 Specifications............... 2 Schematics ................4 Indicators ................7 I/O Connectors..............8 1.6.1 Digital I/O and Power..........9 1.6.2 100/GbE ..............
  • Page 6 Getting Service ..............29 Table of Contents...

  • Page 7: List Of Figures

    List of Figures Figure 1-1: NEON-1040 Front View ........... 4 Figure 1-2: NEON-1020/1040 Rear View........... 5 Figure 1-3: NEON-1020/1040 Side View ........... 6 Figure 1-4: NEON-1020/1040 LED Array........... 7 Figure 1-5: NEON-1020/1040 I/O Array..........8 Figure 1-6: Digital I/O and Power Connector ........9 Figure 1-7: 100/GbE Connector ............
  • Page 8 This page intentionally left blank. viii List of Figures...

  • Page 9: List Of Tables

    NEON 1020/1040 List of Tables Table 1-1: NEON-1020/1040 LED Function ........7 Table 1-2: NEON-1020/1040 I/O Array Legend........ 8 Table 1-3: Digital I/O and Power Pin Assignment......10 Table 1-4: 100/GbE Pin Assignment..........11 Table 1-5: VGA/USB Pin Assignment..........13...
  • Page 10 This page intentionally left blank. List of Tables...

  • Page 11: Introduction

    NEON-1020/1040 Introduction 1.1 Overview The NEON-1040 is a powerful new generation x86 smart camera ® that features the Intel Atom™ Processor E3845 1.9 GHz, 4 MP at 60 fps, global shutter image sensor, and PWM lighting control sup- port. The NEON-1040 stands out with its minimal footprint and...

  • Page 12: Specifications

    1.3 Specifications NEON-1020 NEON-1040 Processing & Memory Processor Quad core Intel Atom E3845 @ 1.91GHz Display VGA output, max 2560x1600 at 60 Hz. 2GB DDR3L Storage 8 to 32 GB solid state drive Advanced Processing ROI, LUT, Shading Correction Sensor...
  • Page 13 NEON-1020/1040 NEON-1020 NEON-1040 1xM12 8-pin female, 1xM12 17-pin male, Connectors 1x M12 12-pin male Software Windows 7, Windows Embedded Standard Environmental & Electrical Power Consumption 12 to 24 VDC +/-10%, 13W (typical) Operating Temperature 0 to 50°C Vibration Operating, 5 Grms, 5-500 Hz, 3 axes...

  • Page 14: Schematics

    1.4 Schematics All units are in millimeters (mm) External dimensions for the NEON-1020 and NEON-1040 are identical NOTE: NOTE: 68.5 35.5 71.5 127.3 Figure 1-1: NEON-1040 Front View Introduction...

  • Page 15: Figure 1-2: Neon-1020/1040 Rear View

    NEON-1020/1040 5.95 98.1 Figure 1-2: NEON-1020/1040 Rear View Introduction...

  • Page 16: Figure 1-3: Neon-1020/1040 Side View

    65.2 1.50 52.7 Figure 1-3: NEON-1020/1040 Side View Introduction...

  • Page 17: Indicators

    NEON-1020/1040 1.5 Indicators Figure 1-4: NEON-1020/1040 LED Array The NEON 1020/1040 provides five labeled LED indicators on the top side, with function as follows. Indicator Color Status Description System power on POWER Blue System power off Image capture in progress...

  • Page 18: I/O Connectors

    1.6 I/O Connectors Figure 1-5: NEON-1020/1040 I/O Array Power/IO/UART Ethernet VGA/USB Table 1-2: NEON-1020/1040 I/O Array Legend Introduction...

  • Page 19: Digital I/O And Power

    NEON-1020/1040 1.6.1 Digital I/O and Power Figure 1-6: Digital I/O and Power Connector 17-Pin M12 Pin Signal Type Description Pigtail RS232 RXD Input RS-232 receive. Brown DO3/ Open-collector output 3 Output Blue Strobe out 3 or strobe out 3 DO1/...

  • Page 20: Table 1-3: Digital I/O And Power Pin Assignment

    17-Pin M12 Pin Signal Type Description Pigtail PWM LED control out negative, for connection to LED PWM light Output lighting device; Power Black control out (-) source of LED current control is shared System PWR Power input w/ input System PWR Input range +12V ~ +24V Gray...

  • Page 21: 100/Gbe

    NEON-1020/1040 1.6.2 100/GbE M12 8-pin (female) connector that provides communication capa- bilities at 10 Mbit/sec, 100 Mbit/sec, or 1 Gbit/sec(1000 Mbit/sec). Figure 1-7: 100/GbE Connector Pin Signal Description MDI_3- Data C- MDI_4+ Data D+ MDI_4- Data D- MDI_1- Data A-...

  • Page 22: Vga/Usb

    1.6.3 VGA/USB M12 12-pin (male) connector that transmits output video and USB 2.0 signals. The output video signal is a standard RGB analog video output transferring the OS desktop to connected indepen- dent display devices. The video output can display an extended Windows and/or an exclusive display.

  • Page 23: General Purpose Digital Signals

    NEON-1020/1040 Signal Type Description Horizontal synch of RBG VGA HSYNC Output video signal Green of RGB video VGA GREEN Output signal Ground VGA DDC SCL Bidirectional DDC serial clock line VGA DDC SDA Bidirectional DDC serial data line Table 1-5: VGA/USB Pin Assignment 1.7 General Purpose Digital Signals...

  • Page 24: General Purpose Digital Input (Edi)

    One channel constant-current sink LED driver, constant 500mA output current with 1000 level light control controls brightness of LED lighting devices, sharing the NEON-1020/1040 System PWR input, requiring that System PWR voltage matches the LED light- ing device's operating voltage.

  • Page 25: Figure 1-12: Pwm Light Control Output Circuit

    NEON-1020/1040 System PWR PWM LED control out (+) Max. 500 mA LED Light Neon-1020/1040 PWM LED control out (-) PWM controller Figure 1-12: PWM Light Control Output Circuit Introduction...
  • Page 26 This page intentionally left blank. Introduction...

  • Page 27: Getting Started

    NEON-1020/1040 Getting Started This chapter describes connection and configuration of the NEON-1020/1040. 2.1 Unpacking Checklist Before unpacking, check the shipping carton for any damage. If the shipping carton and/or contents are damaged, inform your dealer immediately. Retain the shipping carton and packing materials for inspection.

  • Page 28: Figure 2-2: Ethernet Alignment Channel (Device Side)

    2.3 Connecting an Ethernet cable 1. Align the alignment pin (cable side) with the alignment channel (device side) Figure 2-2: Ethernet Alignment Channel (device side) 2. Fully insert the cable connector. 3. Tighten the threaded collar (cable side) to fix the connec- tion.

  • Page 29: Connecting A Power Cable

    3. Tighten the threaded collar (cable side) to fix the connec- tion. 2.5 Operating System Installation The NEON-1020/1040 is compatible with Windows Embedded Standard 7 (WES7E),and supports File-Based Write Filter (FBWF), providing a stable, secure, and high performance software operating environment. The device OS is pre-installed.
  • Page 30 2. Select Next when prompted until installation is complete. Getting Started...
  • Page 31 NEON-1020/1040 Getting Started...
  • Page 32 3. If a Security Warning window appears, select “Install this driver anyway”. Getting Started...
  • Page 33 NEON-1020/1040 4. If a “Found New Hardware Wizard” window appears, ignore and the window automatically closes after instal- lation is complete. 5. When installation is complete, select Finish. Getting Started...
  • Page 34 The device should appear in the Device Manager, as shown Getting Started...
  • Page 35 NEON-1020/1040 If an error occurs and installation is rolled back, e-mail the file setupapi.log in the Windows folder to ADLINK. Log files on Vista systems are moved to %windir%\inf NOTE: NOTE: and renamed to setupapi.app.log and setupapi.dev.log where windir is the Windows folder.
  • Page 36 This page intentionally left blank. Getting Started...

  • Page 37: Important Safety Instructions

    NEON-1020/1040 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference.
  • Page 38 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Equipment must be serviced by authorized technicians when:...
  • Page 39 San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
  • Page 40 84 Genting Lane #07-02A, Cityneon Design Centre Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: #50-56, First Floor, Spearhead Towers Margosa Main Road (between 16th/17th Cross) Malleswaram, Bangalore - 560 055, India Tel: +91-80-65605817, +91-80-42246107 Fax:...
