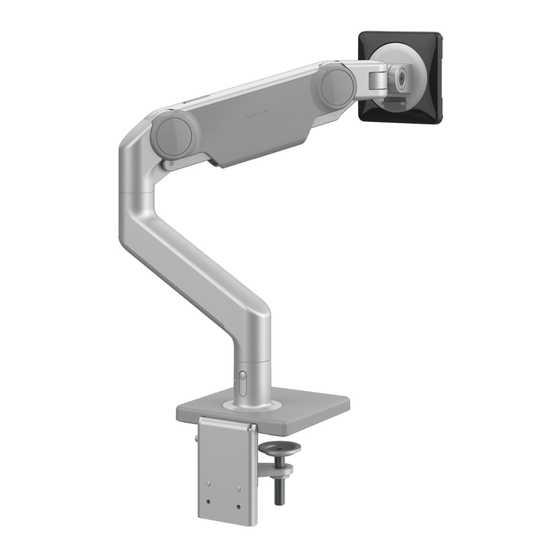

Humanscale M10 Installation Instructions & User Manual

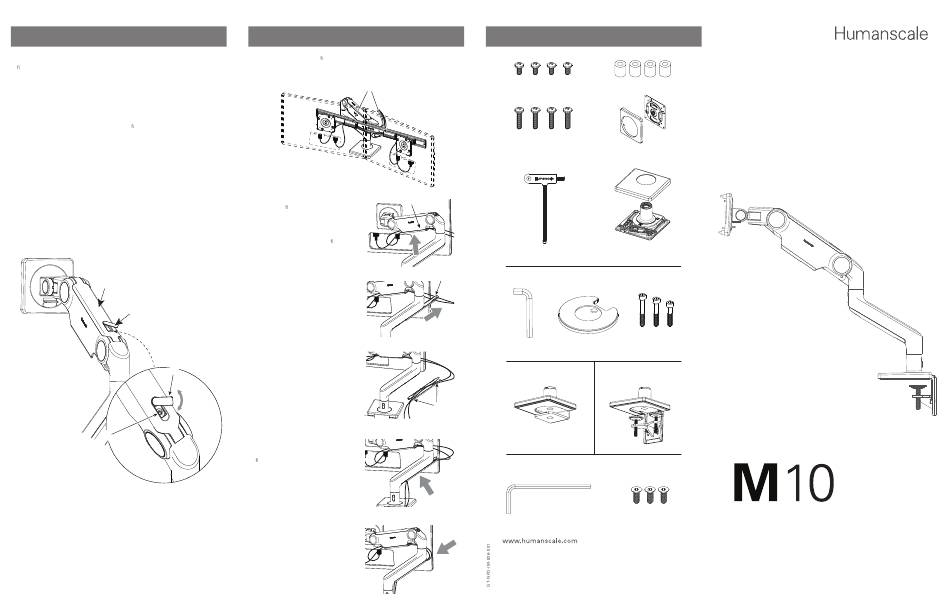

STEP 8: WEIGHT ADJUSTMENT
Your monitor should move up and down easily and stay in place once adjusted. If it is
dif cult to adjust or moves without assistance, it is not properly counterbalanced.
M10 Arm - Total Weight Range: 20-48 lbs. (9-21.7 kg)
Single Monitor - Max weight: 48 lbs. (21.7 kg)
Dual Crossbar - Max weight per monitor: 22.5 lbs. (10.2 kg)
Triple Crossbar - Max weight per monitor: 10 lbs. (4.5 kg)
1. To access the Adjustment Screw (E), use your nger to pry open the Cover (D) on
the Upper Arm Link (C).
2. Using the 5mm Hex Key turn the Adjustment Screw (S) clockwise to INCREASE the
load tension, and counter-clockwise to DECREASE the load tension. Turn the
Adjustment Screw (E) until the Monitor is properly balanced.
3. Move the monitor around to ensure that the motion is smooth and the arm functions
as intended and holds the monitor in place.
5. Reposition the Cover (D) and press until it snaps into place.
CAUTION: Do not overtighten the screws as it can damage the screw head or threads.
A
C
D
E
STEP 9: CABLE MANAGEMENT
1. If using multiple monitors, rst route the cables through the plastic cable clips on
the front of the crossbar. If using a single monitor, skip to step 2.
A
2. Route power and monitor cables
B
through the exible cable clips on the
M8.1's upper link (B).
NOTE: Leave enough slack in the cables
to allow arms to rotate without dif culty.
3. Slide the plastic cover (C) on the lower
link upward to remove.
4. Using the two cutouts (D) as guides, run
the cables over the lower link cover.
5. Lift the cover and cables up to the lower
link, making sure that the cover sits
ush with the surface of the arm.
6. Slide the cover down the arm to lock in
place, then gently pull the cables
through the arm to remove excess slack.
CAUTION: Don't insert extension cords.
Don't insert any cord connecting one
workstation to another.
M10 INSTALLATION HARDWARE
4 Standard VESA Bracket Screws
4 Extended VESA Bracket Screws VESA Bracket and Cover
NOTE: 4mm and 5mm Hex Key can be
5mm Hex Key
found under the plastic base cover.
C
Bolt-Through Mount
8mm Hex Key Bolt-Through Plate
Sliding Desk Mount
D
Crossbar Installation Hardware
4mm Hex Key
For our terms and conditions please go to
https://www.humanscale.com/about/legal-information/terms-conditions.cfm
© 2019 Humanscale Corporation. The text and artwork are copyrighted materials.
All rights reserved. The Humanscale mark and logo are trademarks of Humanscale Corporation
and are registered in the United States and certain other countries. The M10 trademark is
owned by Humanscale Corporation.
4 Plastic Spacers
Bolt-Through Bolts
Clamp Mount
3 Crossbar Link Screws
Desk Mount
