- Page 1 Operating instructions M-iClean H Hood type dishwashing machine Translation of the "original operating instructions" Read operating instructions before using the machine! 9750359 / Valid from: 2017-07 / Update: 2020-03 www.meiko-global.com...
-
Page 2: Table Of Contents
Contents NOTES ON THE OPERATING INSTRUCTIONS ............4 Product identification Delivery contents Related documents LIABILITY AND WARRANTY ..................5 SAFETY ........................6 Symbol explanation 3.1.1 Notes in the instructions 3.1.2 Safety symbols in the instructions Requirements for the personnel Residual risks Intended use Foreseeable misuse Fundamental safety and accident prevention regulations... - Page 3 M-iClean H Check prerequisites for commissioning Perform commissioning OPERATION/USE....................... 28 Glass control panel Detergent and rinse aid Washing with the dishwashing machine 8.3.1 Prepare dishwasher 8.3.2 Putting the machine into operation 8.3.3 Putting away washware 8.3.4 Select wash programme 8.3.5 Start wash cycle 8.3.6 Operation using wash key...
-
Page 4: Notes On The Operating Instructions
Dear customer, We are delighted about the confidence you have shown in our products. It is very important to us that you should enjoy using and benefit from MEIKO prod- ucts and that they should make your work easier. The operating instructions help familiarise the operator of this dishwashing machine with its installation, modes of operation, use, safety instructions and servicing. -
Page 5: Related Documents
Service instructions Liability and warranty All of MEIKO’s obligations arise from the relevant purchase contract, which also con- tains the entire and only valid guarantee provisions. These contractual guarantee provisions shall be neither extended nor restricted as a result of any explanations given in the instructions. -
Page 6: Safety
Safety Symbol explanation 3.1.1 Notes in the instructions Warnings Danger Short description of the danger: The signal word DANGER designates an immediately threatening danger. Failure to observe this leads to very serious injuries or death Warning Short description of the danger: The signal word WARNING designates a possible danger. -
Page 7: Requirements For The Personnel
Disconnect before servicing or repair Potential equalisation connection Requirements for the personnel Commissioning, instructions, repairs, maintenance, assembly and installation of or on MEIKO machines must only be carried out/authorised by MEIKO-authorised ser- vice partners. During operation it must be ensured that: •... - Page 8 Persons MEIKO author- MEIKO author- Trained oper- ised company ised service ating staff Activity tradesman technician Installation/assembly Commissioning Operation, use Cleaning Check safety devices Troubleshooting Troubleshooting, mechan- ...
-
Page 9: Residual Risks
Residual risks Phase Activity Nature of the hazard Avoidance measure • Load-bearing capacity of the forklift truck must be adequate for the weight of the machine Loading and unloading Crushing/impact • with forklift truck Please note the machine's centre of gravity •... -
Page 10: Intended Use
The washware must be suitable for dishwashing machines. If there is any doubt, a consultation (size, version, basic suitability for dishwashing machine, etc) can be carried out with MEIKO to confirm suitability (info@meiko-global.com). The following applications are expressly not intended:... -
Page 11: Foreseeable Misuse
• Processing hazardous substances in the machine (health hazards, in particular toxic, highly or extremely flammable and explosive substances). • Operating the machine in an explosive environment. Foreseeable misuse Any use which is not detailed in the section on "Intended use" is contrary to the in- tended use! The dishwashing machine must not be used for these foreseeable misuses: •... - Page 12 DIN 10510, 10511 and 10512. If equipment for optimising energy consumption is nevertheless in- stalled, MEIKO does not accept any responsibility for a possible reduction in the quality of the wash and hygiene.
-
Page 13: What To Do In The Event Of An Emergency
• Acquire information from the manufacturers of these products. • Please observe the manufacturer's hazard warnings. • Thoroughly remove any residue after use. Information on cleaning the machine Foam can cause malfunctions in the dishwashing machine and a poor washing re- sult. -
Page 14: Product Description

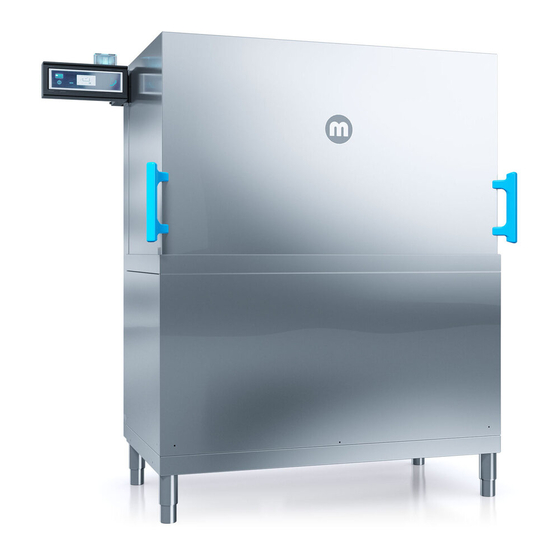

Product description Functional description The M-iClean H is a hood type dishwashing machine with a square basket. The dishwasher has one wash and one final rinse cycle. A temperature regulator maintains the set wash temperature of between 58-60 °C. A rotary pump circulates the water from the wash tank into the wash nozzles. - Page 15 1 Optional opening on right/left for relocating connection line 2 Connection nozzles for rinse aid 3 Connection nozzles for detergent 4 Electrical supply 5 Fresh water supply 6 Drain connection line (internally routed in machine as siphon) Interior view 1 Rack detection switch (optional) 2...
-
Page 16: Type Label
The M-iClean H can be connected to the power provided a power supply is locally available. The connection variant currently available is labelled ● under (5). A (MEIKO authorised) electrician can attach a different connection variant. Indicator light The indicator light shows different colours depending on the operating mode. -
Page 17: Dosing Equipment
The use of inappropriate detergent and rinse aid can corrode the dosing units and other machine components. • If necessary: Consult with MEIKO and the detergent supplier. Note Information on cleaning chemicals, see chapter “Detergent and rinse aid” on page... -
Page 18: Options
In certain cases, they must be adapted to the relevant conditions. This will require agreement from the Service Technician (MEIKO authorised) or the detergent sup- plier. -
Page 19: Disinfection Control
Make sure that the dishes and glassware used are suitable for the high stress placed on them. MEIKO offers two types of machine with thermal disinfection for institutions with ad- ditional hygiene requirements. Both versions have greater heating performance in the wash tank than standard machines. -
Page 20: Heat Retention
• The rinsing process runs until the end of the programme cycle time, but at least until the temperature value and specified stop time are reached. After this comes a pause for draining, final rinse and a subsequent application time. Thermolabel and thermal disinfection control offer a disinfection effect that exceeds the standard, such as for hospitals, care homes, requirements according to the ÖGSV Guideline. -
Page 21: Forced Drainage
As soon as the door or hood is closed for the first time after 24 hours have passed. Technical data MEIKO has created a dimensional drawing that shows machine dimensions as well as connection and consumption values. Further data should be taken from the MEIKO dimensional drawing. -
Page 22: Requirements For The Installation Area
Note If there is any suspicion of transportation damage, the shipping company and MEIKO must be informed immediately in writing. Photograph any damaged parts and send the pictures to MEIKO. 6.1.2 Requirements for the installation area The dishwashing machine is only frost-proof in as-delivered state or if equipped with special features (optional: frost removal). -
Page 23: Requirements To The Electrical Connection
• Machines with GiO MODULE or ActiveClean water softener: 1 – 5 bar (100 – 500 kPa) Maximum pressure • The maximum pressure of 5 bar (500 kPa) must not be exceeded. Measures to ensure correct water pressure: • If the minimum flow pressure is too low, increase the pressure using a pressure booster pump. - Page 24 1.4 MVA. If necessary, they must consult the grid operator first. MEIKO offers a line choke as a retrofit component for customers who do not have the necessary short circuit power at the connection point.
- Page 25 Possibility to switch The machine can be connected and switched to higher or lower power depending on the locally available power supply. This must be carried out by a (MEIKO authorised) electrician. On delivery, the boiler heater is already wired to customer specifications and the connection variant is indicated on the descriptive plaque.
-
Page 26: Transport
Transport Warning Danger of injury from the machine falling over The machine can fall over if transported incorrectly. People can be injured as a re- sult. • Transport work must be performed only by qualified persons. • Please note safety instructions on the packaging. •... -
Page 27: Commissioning
Note When installing non-MEIKO tables on the hood type machine, ensure that no risks arise at the joint with the hood, such as danger of crushing or shearing. Note Assembly may be performed only by an authorised service technician. Assembly must be carried out in accordance with the installation drawing. -
Page 28: Operation/Use
To avoid damage to the appliance or dangerous injuries during commissioning of the machine, please note the following points: • Check supplier parts (e.g. external water processing devices or heating pumps). More detailed information can be found in the relevant operating in- structions. -
Page 29: Detergent And Rinse Aid
Programme: glassware - gentle + cold water rinse Programme: glassware - normal + cold water rinse Detergent and rinse aid MEIKO recommends brand cleaning products from leading manufacturers. Cleaning and hygiene products from make an excellent choice. Chemical product settings The required detergent and rinse aid are dispensed from storage containers into the tank or boiler by electronically controlled dosing equipment. -
Page 30: Washing With The Dishwashing Machine
Change of product means that one rinse aid or detergent is replaced by another. If these different products are mixed, it can lead to unwanted occurrences, such as precipitations. • Before using new products, thoroughly rinse the hoses and dosing units with warm water. -
Page 31: Putting The Machine Into Operation
6. a) Open hood with the relevant operation key arrow upwards. b) Open hood by tapping it. 7. Insert filter, sieve and wash systems. 8. a) Close hood with the relevant operation key arrow downwards. b) Close hood by tapping it. 8.3.2 Putting the machine into operation If the display is dark, press the Wake-up key or move the door / hood. -
Page 32: Select Wash Programme
• Place plates, trays and dishes into the baskets at an angle. The inner surfaces face upwards. • If cutlery holders are used, always insert the cutlery pieces with the handles down. • Mix up the spoons, knives and forks as much as possible in each cutlery bas- ket, since similar cutlery pieces may nest together. - Page 33 Programme configuration Depending on the machine type, the electrical connection and water supply, the pro- gramme configuration can vary. The programme configuration is shown in the fol- lowing tables. M-iClean M-iClean M-iClean Voltage Version Programmed channel 3NPE 400V Glassware Crockery Cold or hot water con- Thermolabel* nection...
- Page 34 2,6/5,2 2,6/5,2 2,6/5,2 2,6/5,2 2,6/5,2 2,4/4,8 Programme assignment, see page 33. Note If necessary, the washing pressure can be reduced by the MEIKO service (e.g. if the washware falls over). M-iClean HM-PW/HXL-PW Programme Programme Boiler tem- Tank temper- Pressure Rinse water...
- Page 35 Programme Programme Boiler tem- Tank temper- Pressure Rinse water Programme number cycle time perature ature level volume symbol [°C] [°C] [1-3] 2.6/5.2 2.4/4.8 2.6/5.2 2.6/5.2 2.6/5.2 2.6/5.2 2,6/5,2 2.4/4.8 Programme assignment, see page 33. M-iClean HL Programme Programme Boiler tem- Tank temper- Pressure Rinse water...
-
Page 36: Start Wash Cycle
Programme Programme Boiler tem- Tank temper- Pressure Rinse water Programme number cycle time perature ature level volume symbol [°C] [°C] [1-3] Programme assignment, see page 33. 8.3.5 Start wash cycle Beware Danger of crushing Body parts could be crushed when closing hood. •... -
Page 37: Operation Using Wash Key
8.3.6 Operation using wash key 4. Insert the basket into the dishwashing machine. 5. Centre the basket correctly in the basket holder. 6. Ensure that the correct programme has been selected, see page 32. 7. Press the wash key. The machine's hood will close. The wash cycle will start automatically. The machine washes automatically and switches the programme off after comple- tion. -
Page 38: Rack Detection (Intelli-Start) (Option)
4. Tap the machine hood. The machine's hood will close. The wash cycle will start automatically or on press- ing the wash key. The machine washes automatically and switches the programme off after comple- tion. The display indicates the programme's progress. The cycle time may differ from the set programme running time if the programme running time is not sufficient to heat up the fresh water to the pre-set temperature. -
Page 39: Emptying The Washware
The wash cycle will start automatically. The machine washes automatically and switches the programme off after comple- tion. The display indicates the programme's progress. The cycle time may differ from the set programme running time if the programme running time is not sufficient to heat up the fresh water to the pre-set temperature. In this case, the cycle runtime is automatically extended. -
Page 40: Closing The Hood Without Triggering Automatic Wash Start
8.3.10 Closing the hood without triggering automatic wash start Option 1: automatic wash start has not been activated, see chapter “Action menu” on page 46. The wash cycle does not start after pressing the Close hood button, touching the hood or manually closing it. Additionally: wash start will not work on dishwashing machines with rack detection depending on the configuration ordered and the rack inserted. -
Page 41: Restricted Operation
Malfunction Possible cause Remedy Unsuitable rinse aid Change product Hood no longer see chapter “Restricted operation” on page 41 opens/closes automati- cally As a rule, faults that are not described here require assistance from an authorised service technician. Please contact your subsidiary or authorised dealer. 8.4.1 Restricted operation In case of a malfunction of the automatic hood system, the machine switches to re-... - Page 42 Display text Measures/remedial action Hood not closed • Emptying / Closing the hood Close hood. Water change / Close hood "Lower" hood switch indicators do not • Open/close hood match up: S7: "1"; S8: "0" • Able to continue working at limited capacity "Lower"...
- Page 43 Display text Measures/remedial action Activation of automatic hood operation • No action required performed. Restricted operation ended • Possible to continue working when hood is operated manually. • Open the local water supply Boiler level not reached on time during •...
-
Page 44: Shutting Down The Dishwasher
If an error message is displayed that is not in this list, please contact the authorised service technician. Shutting down the dishwasher 1. Press on/off key. 2. Confirm request with the relevant confirmation key. The dishwashing machine will self clean. Once the self-cleaning process is complete, the dishwashing machine will switch to MACHINE OFF mode. - Page 45 Read/modify settings (service code 10001) The user can carry out all functions required for normal operation and configure the settings. Authorisation level 4 – extended configuration level Read settings (service code: 40000) The user can view the extended settings. Read/modify settings (service code 40044) In addition to the functions and settings for authorisation level 1, the operator can view/edit all the relevant parameters for the dosing equipment.
-
Page 46: Reset The Counter
1, 4 module. Reset the counter Note In order to be able to reset counters in security access level 1, this function must be separately enabled by an authorised MEIKO service technician. Resettable coun- ters: • Maintenance counter • Reverse osmosis (UO) filter insert 1. -
Page 47: Activate/Deactivate Bluetooth Interface
6. Select the counter to be reset. 7. Confirm the selection to reset the values. Note The counters for the water treatment options can also be reset via security authori- sation level 4 Extended configuration level, see page 44. Activate/deactivate Bluetooth interface Note The Bluetooth interface allows the service technician to read the machine's data and is used for software updates. - Page 48 2. Send the serial number in the e-mail subject to found on the rating plate or can be read off the privatelabel@meiko-global.com and receive a operating panel by pressing (3 s) the service ac- voucher code in response. This only works if you cess key.
-
Page 49: Ventilating The Pipes
2. The waiting time can be changed in the i menu under Settings- Display- 2nd waiting time until Start Private Label (0 means: always ON or 2nd waiting time deactivated). 3. Press the MEIKO key for 3 seconds and confirm the request to log off from the current session. 8.10... -
Page 50: Perform A Manual Water Change
1. Switch to authorisation level 1 User configuration level, see page 44. 2. Call up the action menu using the relevant confirmation key. 3. Select the required submenu. 4. Start the ventilating procedure by using the relevant confirmation key. 8.11 Perform a manual water change 1. -
Page 51: Maintenance And Cleaning
1. Remove the suction lance from the empty canister and insert it into a full canis- ter. 2. If necessary, ventilate the pipelines, see page 44. Maintenance and cleaning Warning Danger to life from electric shock Contact with live electrical parts can lead to serious injury or death. •... -
Page 52: Maintenance
Beware Danger of crushing Body parts could be crushed when closing hood. • When the hood starts to move downwards (manually or automatically operated hood), ensure that no body parts are between the hood and objects located un- derneath. • Close manually operated hoods using the blue handle. -
Page 53: Maintenance Table
Maintenance table Maintenance work Maintenance Visual inspection requirement 1. Error memory Check error memory for unusual events annually 2. Pumps Check pumps for leaks and any visible damage annually Check pumps for pump rotor noise and function annually 3. Wash tank, wash and rinse system Functional and visual tests of wash and rinse arms annually Replace sealing rings on wash arms... - Page 54 Maintenance work Maintenance Visual inspection requirement 7. Wastewater installation Replace flap on ventilation valve annually Check operation of drain pump during drainage annually Check pumps, hoses and wastewater heat exchangers (optional annually extra) are not leaking 8. Detergent dosing Replace peristaltic hose and seals on the nozzles annually Check detergent dosing system is working and not leaking annually...
-
Page 55: Daily Cleaning
Daily cleaning Caution Material damage due to water ingress Electrical cables and electronic components can be damaged if they come into contact with water. • The dishwashing machine, switch cabinets and other electrical components must never be sprayed with a hose or high pressure cleaner. •... -
Page 56: Cleaning The Stainless Steel Surfaces
Cleaning the stainless steel surfaces Caution Material damage due to incorrect cleaning Cleaning of parts made of stainless steel with unsuitable cleaning agents, care products and cleaning utensils leads to damage, deposits or discolourations on the machine. • Never use aggressive cleaning or scouring agents. •... -
Page 57: Spare Parts
• For descaling only use products suitable for industrial dishwashing machines. Spare parts Please provide the following information on any query and/or when ordering spare parts: Type: …………………………………………………….. …………………………………………………….. …………………………………………………….. (This information can be found on the type plate, see page 16.) Dismantling and disposal In addition to valuable raw materials and recyclable materials, the packaging and the old device may also contain substances that are harmful to health and the environ-... -
Page 58: Abbreviations
• Where appropriate, rinse machine components, containers, dosing units and hoses with fresh water to remove chemical residues. Wear suitable clothes (gloves, safety glasses) for this. The device is marked with this symbol. Please observe the local regulations for proper disposal of your old device. The components should be separated by material for recycling. - Page 59 Automatic hood system ........... 18 Perform commissioning ........27 Personalise machine........... 47 Prerequisites for assembly ......... 21 Forced drainage ........... 21 Pressure levels ........... 18 Functional description .......... 14 Private Label 2.0 ..........47 Fundamental safety and accident prevention Product description ..........14 regulations ............
- Page 60 rack detection ..............15 Rack detection ............18, 38 Wash arm ............15 Select wash programme ..........32 Washing ............... 30 Start wash cycle ............... 36 Touch operation ............... 37 emptying the washware ..........39 With wash key ..............37 Extended cycle runtime ........
-
