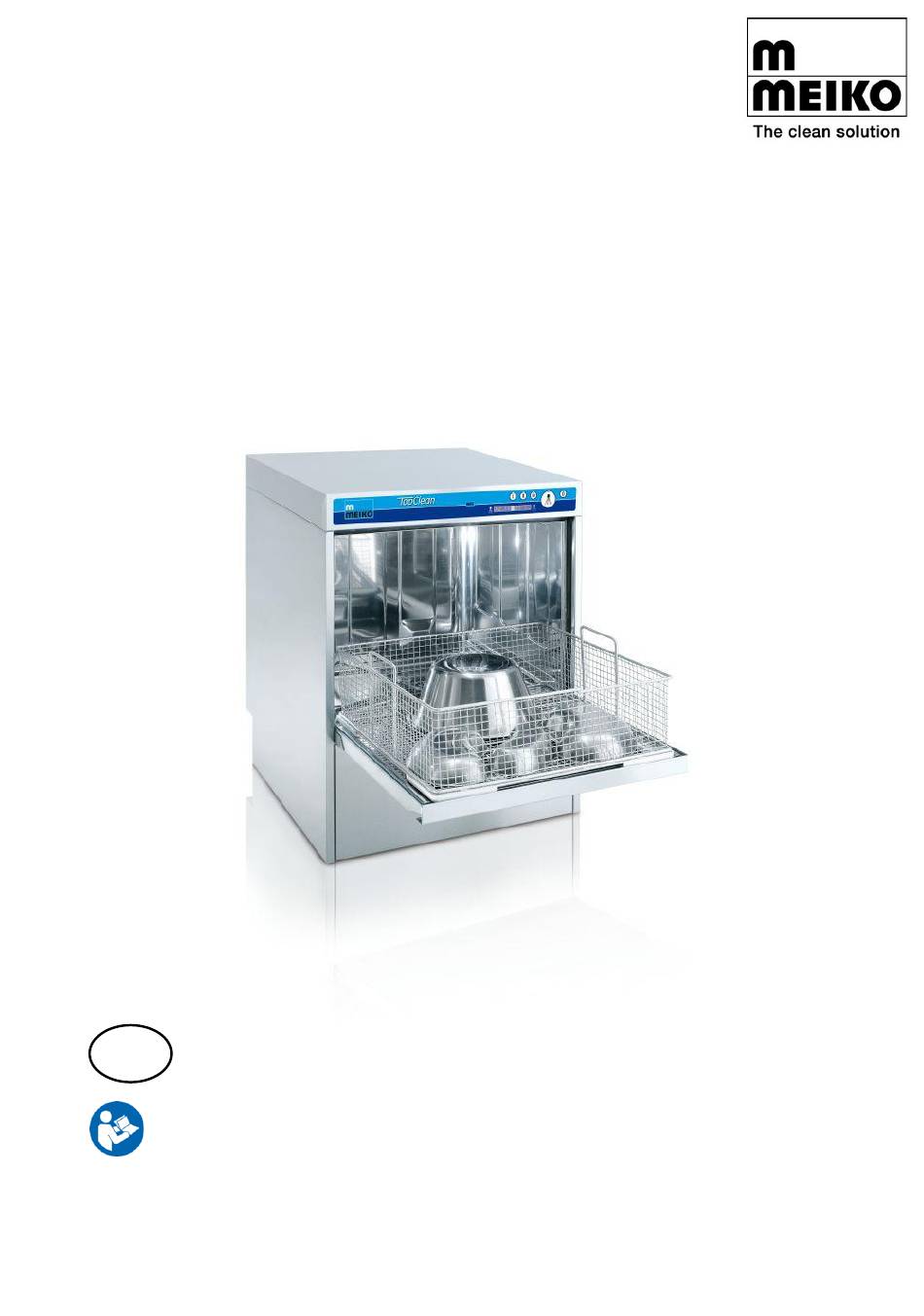

Original operating instructions
TopClean 60
Type M2
Multiwasher
EN
For the types of the series:
M002CDUC10M2-30-MU
Read operating instructions before using the Multiwasher!
9018125 / Valid from: 2018-12 / Update: 2024-09
www.meiko-global.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TopClean 60 M2 and is the answer not in the manual?

Questions and answers

Related Manuals for Meiko TopClean 60 M2

Summary of Contents for Meiko TopClean 60 M2

  • Page 1 Original operating instructions TopClean 60 Type M2 Multiwasher For the types of the series: M002CDUC10M2-30-MU Read operating instructions before using the Multiwasher! 9018125 / Valid from: 2018-12 / Update: 2024-09 www.meiko-global.com...
