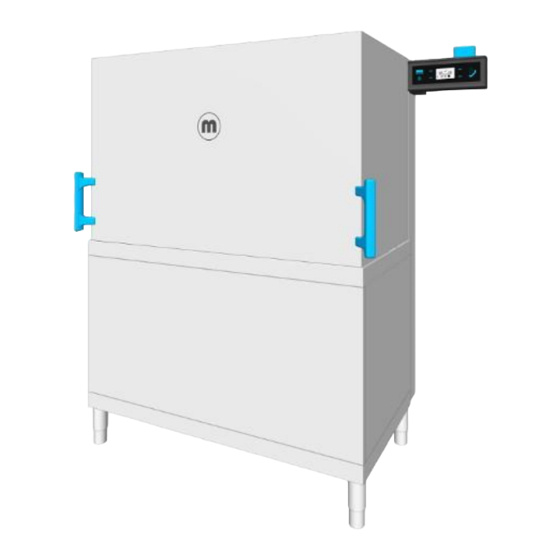

Meiko M-iClean H Operating Instructions Manual

Hood type dishwashing machine
Hide thumbs

Advertisement

Quick Links

Download this manual

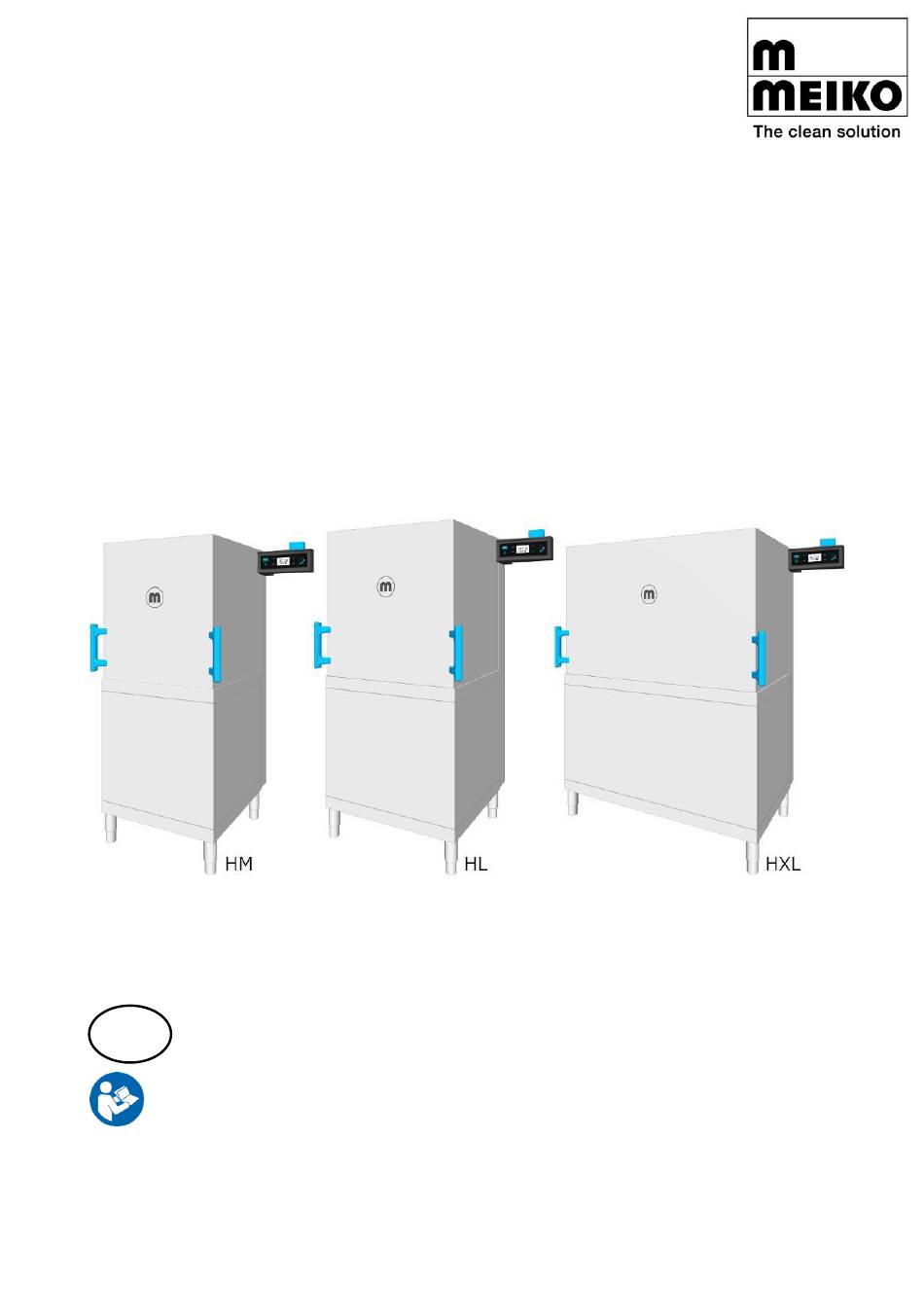

MEIKO M-iClean H
Hood type dishwashing machine
Original operating instructions
For the types in the series:
M008DWHT10M2-**
EN
Read operating instructions before using the machine!
9763288 / Valid from: 2018-09 / Update: 2023-09
www.meiko.info

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-iClean H and is the answer not in the manual?

Questions and answers

Related Manuals for Meiko M-iClean H

Summary of Contents for Meiko M-iClean H

  • Page 1 MEIKO M-iClean H Hood type dishwashing machine Original operating instructions For the types in the series: M008DWHT10M2-** Read operating instructions before using the machine! 9763288 / Valid from: 2018-09 / Update: 2023-09 www.meiko.info...
  • Page 2 Disinfection control 4.7.6 Heat retention 4.7.7 Exhaust heat recovery (AirConcept) 4.7.8 Wastewater heat recovery 4.7.9 Daily protocol with MEIKO Connect Automatic standard functions 4.8.1 Eco mode 4.8.2 Forced drainage TECHNICAL DATA ..................... 22 EC/EU declaration of conformity ASSEMBLY ........................ 23 Prerequisites for assembly 6.1.1...
  • Page 3 MEIKO M-iClean H 6.1.2 Requirements for the installation area 6.1.3 Possible installation variants 6.1.4 Requirements for the waste water connection 6.1.5 Requirements for the fresh water connection 6.1.6 Requirements to the electrical connection Transport Perform assembly COMMISSIONING ...................... 29 Check prerequisites for commissioning Perform commissioning OPERATION/USE .......................

  • Page 4: Table Of Contents

    10.1 Break in operation (e.g. seasonal operation) 10.2 Commissioning after break in operation 11 DISMANTLING AND DISPOSAL ................64 11.1 Disposal of packaging materials 11.2 Dismantling and disposal of the old device 12 ABBREVIATIONS ....................... 65 13 INDEX ......................... 66 14 NOTES ........................
  • Page 5 M-iClean H Type M2: M008DWHT10M2-20 M008DWHT10M2-30 M008DWHT10M2-40 Delivery contents The delivery contents include: • 1x hood type dishwashing machine: M-iClean H • Matching racks for glassware, crockery and containers, depending on machine model • Connecting hoses for fresh water and waste water •...
  • Page 6 Liability and warranty All of MEIKO’s obligations arise from the relevant purchase contract, which also con- tains the entire and only valid guarantee provisions. These contractual guarantee provisions shall be neither extended nor restricted as a result of any explanations given in the instructions.
  • Page 7 Safety Symbol explanation 3.1.1 Notes in the instructions Warnings Danger Short description of the danger: The signal word DANGER designates an immediately threatening danger. Failure to observe this leads to very serious injuries or death Warning Short description of the danger: The signal word WARNING designates a possible danger.
  • Page 8 3.1.2 Safety symbols in the instructions The following note and danger symbols are used both in the document and on the machine. Observe these symbols and signs on the machine to avoid personal injury and material damage! The symbols have the following meanings: Symbol Meaning Warning of hazardous areas...
  • Page 9 Requirements for the personnel Commissioning, instructions, repairs, maintenance, assembly and installation of or on MEIKO machines must only be carried out/authorised by MEIKO-authorised ser- vice partners. During operation it must be ensured that: • Only adequately trained and instructed personnel are allowed to work on the machine.
  • Page 10 Residual risks Phase Activity Nature of the hazard Avoidance measure • Load-bearing capacity of the forklift truck must be adequate for the weight of the machine Loading and unloading Crushing/impact • with forklift truck Please note the machine's centre of gravity •...
  • Page 11 The washware must be suitable for dishwashing machines. If there is any doubt, a consultation (size, version, basic suitability for dishwashing machine, etc) can be carried out with MEIKO to confirm suitability (info@meiko-global.com). The following applications are expressly not intended: •...
  • Page 12 DIN 10510, 10511 and 10512. If equipment for optimising energy consumption is nevertheless in- stalled, MEIKO does not accept any responsibility for a possible reduction in the quality of the wash and hygiene.
  • Page 13 Information on operating the dishwashing machine: • Only operate the dishwashing machine under the supervision of trained person- nel. • Do not use the dishwashing machine if you are unsure about its operation. • Always close all doors and flaps. •...
  • Page 14 Product description Functional description The M-iClean H is a hood type dishwashing machine with a square basket. The dishwasher has one wash and one final rinse cycle. A temperature regulator maintains the set wash temperature of between 58-60 °C. A rotary pump circulates the water from the wash tank into the wash nozzles.
  • Page 15 Overview illustration Exterior view 1 Hood 2 Indicator light 3 Glass control panel 4 Hood handle (blue) 5 Overflow for fresh water system 6 Ventilation for wastewater system 7 Rack detection switch (optional) 8 Wash chamber with rack guide 9 Lower section containing pumps, boiler and switch cabinet 10 Knockout opening for utility connections and detergent/rinse aid...
  • Page 16 Interior view 1 Rack detection switch (optional) 2 Wash arm (final rinse system) 3 Wash arm (cleaning system) 4 Retaining screw for wash arm 5 Rack guide 6 Sieve cover 7 Suction strainer 16 / 70 9763288...
  • Page 17 The dishwashing machine can be connected to the power provided a power supply is locally available. The connection variant currently available is labelled ●. Meaning Name and address of manufacturer MEIKO Maschinenbau GmbH & Co. KG Englerstraße 3 D-77652 Offenburg...
  • Page 18 Do not mix different chemical products. Caution • Only use products that are suitable and approved for commercial dishwashers. MEIKO recommends MEIKO ACTIVE detergent and rinse aid. MEIKO ACTIVE products are optimally adapted to MEIKO dishwashing machines. • Do not mix different cleaning products.
  • Page 19 The correct dosage is achieved when the water drips evenly from the washware and depends on the available water quality on-site. This setting is made during commis- sioning by an service technician authorised by MEIKO or the chemical supplier. Change dosing quantity, see page 51.
  • Page 20 Make sure that the dishes and glassware used are suitable for the high stress placed on them. MEIKO offers two types of machine with thermal disinfection for institutions with ad- ditional hygiene requirements. Both versions have greater heating performance in the wash tank than standard machines.
  • Page 21 • The rinsing process runs until the end of the programme cycle time, but at least until the temperature value is reached. After this comes a pause for draining and the final rinse. The display shows the current A value. Thermolabel control In a way which is similar to A control, machines with Thermolabel control have a...
  • Page 22 Data on operational times, consumption values and events can be read out via Blue- tooth with the MEIKO Connect app and exported as a PDF. MEIKO Connect is avail- able for Android in the Google Play Store and Huawei App Gallery. The Windows version is available at www.meiko.info (search term MEIKO Connect).
  • Page 23 Check the machine for transportation damage. Note If there is any suspicion of transportation damage, the shipping company and MEIKO must be informed immediately in writing. Photograph any damaged parts and send the pictures to MEIKO. 6.1.2 Requirements for the installation area The dishwashing machine is only frost-proof in as-delivered state or if equipped with special features (optional: frost removal).
  • Page 24 6.1.3 Possible installation variants The machine can be placed on the wall and in the corner. For free-standing installa- tion, an additional foot must be attached, which is fixed to the floor with two 6 mm screws. In addition, a rear panel suitable for the machine size must be fitted with splash guard edges.
  • Page 25 6.1.5 Requirements for the fresh water connection Note Where the water conductivity is σ < 100 µS/cm, the stainless steel variant of Air- Concept must be used. This is the case when using a reverse osmosis (GiO) or de- mineralisation system, for example. For Australia only: All work carried out must be in accordance with AS/NZS 3500.1! Fresh water connections and their components must be carried out in accord-...
  • Page 26 1.4 MVA. If necessary, they must consult the grid operator first. MEIKO offers a line choke as a retrofit component for customers who do not have the necessary short circuit power at the connection point.
  • Page 27 Main switch/mains connection cable • • Install a main switch with all-pole disconnection from the mains in accordance with the regulations for installers in the permanently installed on-site installa- tion. • The main switch must be easily accessible for the operating personnel. •...
  • Page 28 Transport WARNING – danger of injury due to machine tipping • Only qualified personnel may carry out transport works. • Please note safety notices on the packaging. • Always transport the machine on a wooden frame only. • Wear protective gloves and safety shoes. The packaging is specifically designed to allow the appliances to be moved safely and securely using a pallet jack.
  • Page 29 If possible, avoid installing the machine in an area close to furniture susceptible to warping. Note When installing non-MEIKO tables on the hood type machine, ensure that no risks arise at the joint with the hood, such as danger of crushing or shearing. Note Assembly may be performed only by an authorised service technician.
  • Page 30 Check prerequisites for commissioning Caution Material damage due to escaping steam Small quantities of steam may escape through the dishwashing machine's hood area. It is possible that adjacent furniture may warp. • Protect adjacent furniture from warping. • If possible, avoid installing the machine in an area close to furniture susceptible to warping.
  • Page 31 Operation/use Glass control panel The machine is equipped with an operation panel. This includes a total of 7 keys which are used to operate the machine. A display in the centre of the operation panel provides information about the machine's current operational status. In addi- tion, depending on which of the 4 confirmation keys next to the display is pressed, further information and menus are displayed.
  • Page 32 Key/symbol Meaning Programme: cutlery Programme: cups Programme: crockery Programme: pans Programme: glassware - gentle Programme: glassware - normal Programme: glassware - intensive Programme: glassware - gentle + cold water rinse Programme: glassware - normal + cold water rinse Prepare dishwasher Warning Risk of injury from contact with chemicals •...
  • Page 33 1. Ensure the water supply is available. 2. Switch on the local mains switch. 3. Check detergent and rinse aid and top up, if required, see page 55. 4. Ensure that the hoses are fed down to the base of the container. Note If there is air in the hoses, the automatic dosing will not function correctly.
  • Page 34 8.2.1 Putting the machine into operation If the display is dark, press the Wake-up key or move the door / hood. 1. Turn on the machine by pressing and holding the on/off key (for one second). The machine is filling and heating up. The display changes depending on the pro- cess stage.
  • Page 35 8.3.2 Select wash programme The dishwashing machine is in READY FOR OPERATION mode ECO MODE I-III. 1. Select the desired wash programme using the confirmation key. The symbol for the selected wash programme is displayed reversed against the background. If the wash programme is changed, after approx. 3 seconds the runtime will be briefly displayed.
  • Page 36 2,6/5,2 3,5/7,0 3,5/7,0 2,4/4,8 2,6/5,2 2,4/4,8 2,6/5,2 2,6/5,2 2,6/5,2 2,6/5,2 2,6/5,2 2,4/4,8 Programme assignment, see page 35. Note If necessary, the washing pressure can be reduced by the MEIKO service (e.g. if the washware falls over). 36 / 70 9763288...
  • Page 37 M-iClean HM-PW/HXL-PW Programme Programme Boiler tem- Tank temper- Pressure Rinse water Programme number cycle time perature ature level volume symbol [°C] [°C] [1-3] 2.4/4.8 2.6/5.2 2.4/4.8 2.6/5.2 2.4/4.8 2.6/5.2 2.4/4.8 2.4/4.8 2.6/5.2 2.6/5.2 2.6/5.2 2.6/5.2 2.6/5.2 2.6/5.2 3.5/7.0 3.5/7.0 2.4/4.8 2.6/5.2 2.4/4.8 2.6/5.2...
  • Page 38 M-iClean HL Programme Programme Boiler tem- Tank temper- Pressure Rinse water Programme number cycle time perature ature level volume symbol [°C] [°C] [1-3] Programme assignment, see page 35. 38 / 70 9763288...
  • Page 39 • Close manually operated hoods using the blue handle. The M-iClean H features 3 different options for starting a wash cycle (initiation func- tions): • Wash key •...
  • Page 40 8.3.5 Touch operation Beware Special initiation function Danger of injury to children; people with physical, sensory or mental impairments; people lacking in knowledge or experience • Ensure that no persons from the above groups are to be found in the area sur- rounding the machine.
  • Page 41 8.3.6 Rack detection (Intelli-Start) (option) Beware Special initiation function Danger of injury to children; people with physical, sensory or mental impairments; people lacking in knowledge or experience • Ensure that no persons from the above groups are to be found in the area sur- rounding the machine.
  • Page 42 8.3.7 Emptying the washware Caution Danger from hot wash water, washware and machine parts • Wear protective gloves if necessary. • Let the washware cool down before emptying, if necessary. • Let the machine cool down before touching machine parts, if necessary. •...
  • Page 43 8.3.8 Closing the hood without triggering automatic wash start Option 1: automatic wash start has not been activated, see chapter “Action menu” on page 50. The wash cycle does not start after pressing the Close hood button, touching the hood or manually closing it. Additionally: wash start will not work on dishwashing machines with rack detection depending on the configuration ordered and the rack inserted.
  • Page 44 Malfunctions If the described operational problems occur repeatedly, the cause must be identified. Occasional malfunctions Malfunction Possible cause Remedy No water present Open the shut-off valve Dishwashing machine Dirt trap clogged Clean the dirt trap doesn't fill up Open hood Close hood No water present Open the shut-off valve...
  • Page 45 • 1, 21, 100, 102, 104, 107, 108, 109, 110, 150, 201, 203, 204, 206, 207, 208, 209, 330, 420, 425, 427, 880, 901/902, 931-945, 960. Not possible to continue working • Switch off on-site power supply • Close on-site water supply •...
  • Page 46 Display text Measures/remedial action Error moving away from upper hood limit • switch Call a service technician • Possible to continue work at limited capacity Error approaching upper hood limit switch / Hood drive pulse generator error • Open hood Open and close hood •...
  • Page 47 Display text Measures/remedial action Energy optimisation active • If this message reoccurs, call a service technician Wash time increase on final rinse insuffi- cient • Possible to continue working Communication with SMART WIRE node • addr. 13 Call a service technician! •...
  • Page 48 Change authorisation level Note The dishwashing machine must be in MACHINE OFF mode. 1. Press and hold the Service access key for approximately three seconds. 2. Enter the service code for the required authorisation level. 3. Confirm the message. Authorisation level 1 – user configuration level Read settings (service code: 10000) The user can view the user settings.
  • Page 49 Note Certain menu functions in i-menu and the action menu have to be enabled by an authorised service technician before the operator can use them (reset counter, etc.). i-menu Symbol Level Description Languages 1, 4 Set display language Hood movement 1, 4 Lift/lower hood and view status Set automatic hood opening and descaling parameters...
  • Page 50 1, 4 module. Reset the counter Note In order to be able to reset counters in security access level 1, this function must be separately enabled by an authorised MEIKO service technician. Resettable coun- ters: • Maintenance counter • Reverse osmosis (UO) filter insert 1.
  • Page 51 6. Select the counter to be reset. 7. Confirm the selection to reset the values. Note The counters for the water treatment options can also be reset via security authori- sation level 4 Extended configuration level, see chapter “Change authorisation level”...
  • Page 52 2. Send the serial number in the e-mail subject to found on the rating plate or can be read off the privatelabel@meiko-global.com and receive a operating panel by pressing (3 s) the service ac- voucher code in response. This only works if you cess key.
  • Page 53 2. The waiting time can be changed in the i menu under Settings- Display- 2nd waiting time until Start Private Label (0 means: always ON= no screen protector or 2nd waiting time deactivated). 3. Press the MEIKO key for 3 seconds and confirm the request to log off from the current session. 9763288...
  • Page 54 2. The waiting time until dimming can be changed in the i-menu under Settings- Display- Waiting time until TFT 50% reduced (0 means: always ON= no dimming). 3. Press the MEIKO key for 3 seconds and confirm the request to log off from the current session. 8.12 Ventilating the pipes The detergent or rinse aid pipes must be ventilated, if air is sucked in from the dos- ing equipment.
  • Page 55 8.14 Replace canister Warning Risk of injury from contact with chemicals • Observe the safety data sheets and dosing recommendations of the chemical manufacturers. • Use eye protection. • Wear protective gloves. • Do not mix different chemical products. Note The canisters for detergent and rinse aid are located in close proximity to the dish- washing machine.
  • Page 56 Warning Danger of injury from entering a danger zone Unauthorised persons might be in or enter the danger zone during transport, as- sembly, commissioning, maintenance and repair work. This can lead to injuries. • Only permit qualified persons to perform work at the machine. •...
  • Page 57 Maintenance Note MEIKO recommends having the machine serviced by an authorised service techni- cian at least once a year. As part of the maintenance, an electrical safety inspection is also carried out in accordance with DIN VDE 0701-0702 / DGUV Regulation 3.
  • Page 58 Check life span of springs and chains annually • Replacement after 650,000 • HM/HL and EcoTemp ET 15.1/17.1: replace guide block for protec- loads or 12 tive rod and mounting plate for springs years • HXL: replace guide block, only replace mounting plate if necessary Clean running surfaces on square tubing annually 6.
  • Page 59 Electrical safety check (certificate is optional) Carry out the visual inspection annually Check the protective earth conductor annually Insulation resistance measurement annually Measure current on protective earth conductor annually Change pre-filter on reverse osmosis module (GiO MODULE) Dishwashing machines with reverse osmosis (GiO MODULE) contain a pre-filter which must be changed by the operator every 6 months (for a standard membrane (<...
  • Page 60 Replace filter cartridge (dishwashing machine is disconnected from power and water supply) 1. Use key to unscrew casing by turning clockwise. 2. Empty water and remove used filter cartridge. Position base drip tray! 3. Thoroughly clean and rinse the filter housing. 4.
  • Page 61 7. Check seal: connect water and power supply. Fill 8. Mark date label and apply to filter unit. machine or run a cycle. 9. Replace any covers removed. 10. Reset exchange interval in the controller, see page 50. Mark the label 1.
  • Page 62 2. Remove sieve, filter and wash system. 3. Remove all food residues sticking to the tank, the tank heater and the filters us- ing a brush. 4. Remove the wash and rinse arm and rinse thoroughly under running water. When doing this, pay particular attention to the nozzles! 5.
  • Page 63 Descaling Warning Danger of injury from contact with acids Descaling agents can cause damage to health if they come into contact with skin or eyes or are swallowed. • Use eye protection. • Wear protective gloves. • Contact a physician immediately if chemicals or water containing chemicals (rinse water) are swallowed.

  • Page 64: Break In Operation (E.g. Seasonal Operation)

    Non-use for several days 10.1 Break in operation (e.g. seasonal operation) • Run self-cleaning programme and clean the machine, see page 47. • Close the on-site shut-off valve. • Switch off on-site mains isolator. • Manually open a gap in the front door or hood to prevent germ formation and odours.

  • Page 65: Dismantling And Disposal Of The Old Device

    11.2 Dismantling and disposal of the old device Warning Risk of injury from contact with chemicals • Observe the safety data sheets and dosing recommendations of the chemical manufacturers. • Use eye protection. • Wear protective gloves. • Do not mix different chemical products. •...
